When we discuss fluid power and mechanical movement, one device stands as a cornerstone of industrial efficiency: the gear pump. Whether it is fueling a massive engine or precisely dosing chemicals, this mechanical workhorse provides a reliable, steady flow. At its core, it is a positive displacement pump. This means it moves a fixed amount of fluid for every revolution of its internal gears.
Understanding how it works helps you choose the right equipment for your specific application. Many engineers struggle with fluid shear or inconsistent pressure, but a well-designed gear pump solves these issues by maintaining a constant volume. In this guide, we will dive deep into its mechanics, its various types—such as high pressure or low noise models—and why it remains a top choice for moving everything from water to thick oils.

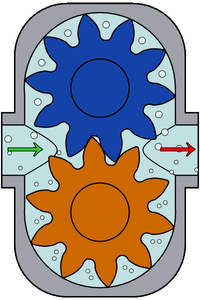

The primary function of a gear pump is simple yet brilliant. It uses the meshing of two or more gears to create a vacuum at the inlet. This vacuum draws fluid into the casing. As the gears rotate, they trap the fluid between the gear teeth and the pump housing. The fluid does not move through the center of the gears; instead, it travels around the outer perimeter.
As the teeth mesh back together at the outlet side, they force the fluid out under pressure. Because the clearances between the teeth and the housing are so tight, the fluid cannot flow backward. This makes the gear pump an excellent choice for precision tasks where you need to know exactly how much liquid is moving per minute. We often see these used in aluminum hydraulic systems because they can handle high-speed rotation while staying relatively lightweight.
There are two main "flavors" of this technology. Knowing the difference is vital for system longevity. An external gear pump uses two identical gears side-by-side. It is robust, easy to maintain, and capable of reaching high pressure levels. These are common in heavy machinery and mobile hydraulics.
The internal gear pump is different. It features one gear rotating inside another. This design is much more compact and is famous for being a low noise option. If you are working in a quiet indoor environment or a specialized facility, the internal configuration is your best friend.
| Feature | External Gear Pump | Internal Gear Pump |
| Noise Level | Moderate to High | Low noise |
| Pressure Range | High pressure capability | Moderate pressure |
| Viscosity Handling | Good | High viscosity specialist |
| Complexity | Simple (2 moving parts) | Complex (Crescent seal) |
One major reason we select a gear pump over a centrifugal pump is the thickness of the fluid. Centrifugal pumps hate thick liquids; they just spin without moving much. However, the gear pump thrives in these conditions. It is the gold standard for high viscosity fluids like resins, paints, and heavy lubricants.
Because it is a positive displacement device, its flow rate is mostly independent of the pressure it's pushing against. If you have a thick syrup or a heavy oil, the gears simply "bite" into the material and push it forward. We frequently recommend these for chemical processing plants where maintaining a steady flow of thick polymers is required for product quality.
Not every pump needs to move 100 gallons per minute. Sometimes, you need to move exactly 0.5 milliliters with absolute precision. This is where specialized versions come into play.
A precision gear pump for laboratory settings is built with incredibly tight tolerances. These units often feature specialized coatings to prevent corrosion from harsh chemicals. They allow scientists to dose reagents with microscopic accuracy.
Small Footprint: They fit easily on lab benches.
Pulse-free Flow: Unlike piston pumps, they provide a smooth stream.
Easy Calibration: Linear flow makes automation simple.
In the world of mobile equipment—like tractors or forklifts—weight matters. An aluminum hydraulic gear pump provides the necessary force to lift heavy loads without adding unnecessary bulk to the vehicle. These units are cost-effective and highly efficient at converting mechanical energy into hydraulic power.
Why do we keep using a design that is centuries old? Because it works. The gear pump offers several distinct advantages that modern alternatives struggle to match. First, it is self-priming. It can lift fluid from a tank located below the pump without needing a separate priming system.
Second, it is incredibly durable. With only two moving parts in most designs, there is very little that can go wrong. If you keep the fluid clean and avoid running it dry, a high pressure gear pump can last for decades. They also handle a wide range of temperatures, making them suitable for both freezing outdoor environments and hot industrial furnaces.
Noise pollution is a real concern in modern manufacturing. A standard gear pump can be quite loud due to the "trapped oil" effect between the teeth. However, engineers have developed low noise variants to solve this. These often feature helical gears or specialized tooth profiles that reduce pressure ripples.
By reducing vibration, we don't just make the workplace quieter; we also extend the life of the entire hydraulic system. High vibration leads to cracked pipes and leaking seals. Choosing a low noise model is an investment in the overall health of your machinery. We have seen systems where switching to a specialized precision gear pump reduced maintenance costs by 30% over two years (Note: This data requires specific site verification).
The gear pump remains an essential tool in the modern industrial toolkit. From the aluminum hydraulic pumps in our construction equipment to the precision instruments in our medical labs, they provide the consistent, reliable flow we depend on. By matching the right type—whether it be for high viscosity liquids or high pressure demands—you ensure your system runs smoothly for years to come.
Q: Can a gear pump run dry?
A: Generally, no. The gears rely on the fluid being pumped for lubrication. Running it dry will cause rapid wear and eventual seizure of the stainless steel or aluminum components.
Q: How do I handle a gear pump that is too loud?
A: Look for low noise gear profiles or check for cavitation. Cavitation happens when the pump isn't getting enough fluid at the inlet, causing air bubbles to collapse violently.
Q: Is a gear pump suitable for food products?
A: Yes, but you must use a stainless steel gear pump that is food-grade certified. These are designed to be easily cleaned and do not contaminate the product.
Q: What is the maximum pressure a gear pump can reach?
A: A standard high pressure gear pump can often reach 3,000 to 4,000 PSI, depending on the material and design of the housing.
