Hydraulic

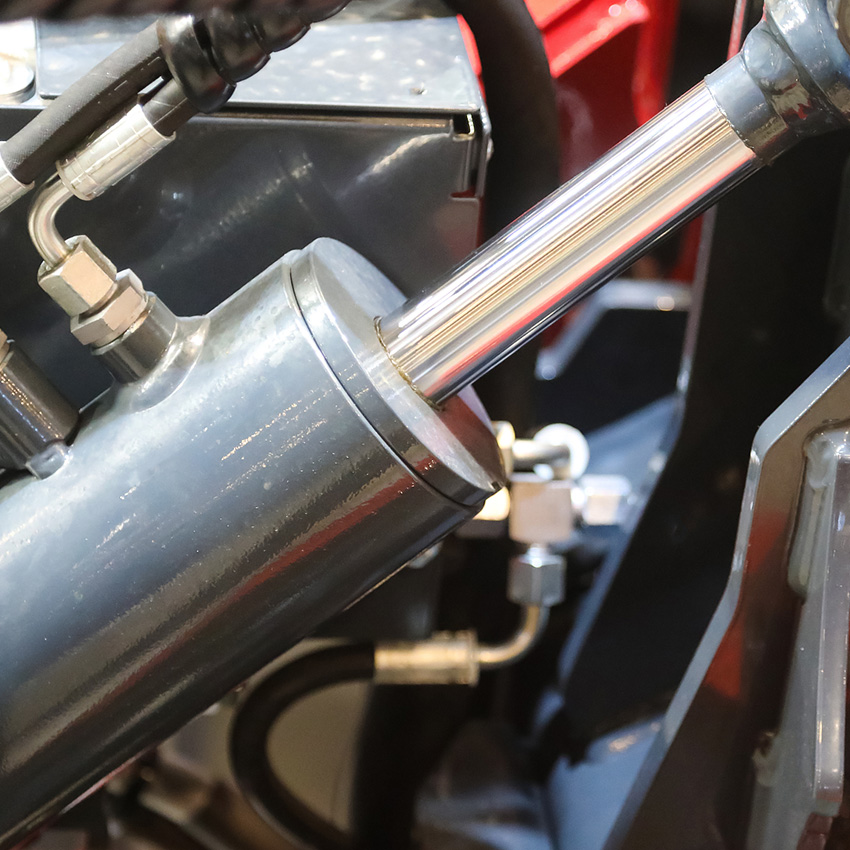

In hydraulic applications, the hydraulic function of micro magnetic gear pumps refers to their ability to generate hydraulic energy through gear rotation, which drives or controls various actuators (such as hydraulic cylinders, hydraulic motors, etc.) within the system. As the core power source of the hydraulic system, this function relies on the pumps’ efficient liquid delivery and pressure generation capabilities—their stable flow and pressure output directly impact the system's control precision and response speed, making them ideal for applications requiring precise control and efficient energy transfer.

Our gear pump series covers a flow range of 0-65 L/min. Depending on operating conditions and the characteristics of the conveyed fluid, the pump body can withstand pressures of 20-300 Bar.

All gear pumps deliver smooth, pulsation-free, and precise positive displacement pumping across a broad temperature range (-120 to 150°C) and viscosity range (0.2 to 20,000 cps).

Availability:



Inquire

Unlock Exclusive Solutions And Get Immediate Access To Professional Support!

More Information

Typical Application Scenarios:
✅ Industrial Machinery: Hydraulic power for injection molding machines, presses, and other equipment requiring stable power output.
✅ Automotive Industry: Auxiliary hydraulic power for transmissions, brake systems, and hydraulic control modules.
✅ Aerospace: Actuation for flight control surfaces and precision hydraulic systems in aircraft.
✅ Medical Equipment: Adjustments for surgical tables, diagnostic equipment, and other medical devices needing accurate hydraulic control.
✅ Energy Industry: Hydraulic support for energy storage systems, hydraulic control components in power generation equipment, and other energy-related applications.

Product Features

Product Feature	Specification
Flow Range	0.1 ml/rev - 26 ml/rev (1 ml/min - 65000 ml/min)
Inlet/outlet Pressure Differential	20-40 Bar(Customizable)
Pressure Rating	20-300 Bar(Customizable)
Operating Speed	1-4000 rpm
Operating Temperature	-120 to 150 °C
Conveying liquid viscosity range	0.2~10,000cps, Capable of handling gas-liquid two-phase viscosity
Metering Accuracy	Up to 0.1%
Lifespan & Reliability	Long service life, capable of continuous operation for 20,000 hours
Operational Characteristics	Stable, pulsation-free flow, Low noise operation
Dry Running Capability	Up to 100 hours under suitable conditions
Inlet Vacuum	-0.85 Bar (Speed dependent)
Sealing Technology	Magnetic drive, ensuring completely leak-free operation

For more general information on gear pumps, click "More Info"

Pumps	Flow Range	Differential Pressure	Pump Body Pressure Rating	More
20 Series	0-1.50L/min	20Bar	40bar	More Info
42 Series	0-2.20L/min	20Bar	20-150Bar	More Info
51 Series	0-6.00L/min	20Bar	20-150Bar	More Info
60 Series	0-10.5L/min	20Bar	40-300Bar	More Info
98 Series	0-55.0L/min	20Bar	40-300Bar	More Info
106 Series	0-65.0L/min	20Bar	40-150Bar	More Info

By offering multiple contact material options and shaft seal configurations, we tailor the optimal solution for your specific application. Contact us today to discuss your requirements.
