Measurement

The measurement function of micro magnetic gear pumps involves the precise control and transfer of minute liquid volumes, ensuring highly consistent fluid delivery with each cycle. The gear pump operates through two tightly meshed gears (driving and driven) rotating within a pump chamber, creating sealed cavities that displace fluid with high accuracy. This precision is critical for applications requiring strict proportional dosing.

Our gear pump series covers a flow range of 0-65 L/min. Depending on operating conditions and the characteristics of the conveyed fluid, the pump body can withstand pressures of 20-300 Bar.

All gear pumps deliver smooth, pulsation-free, and precise positive displacement pumping across a broad temperature range (-120 to 150°C) and viscosity range (0.2 to 20,000 cps).

Availability:



Inquire

Unlock Exclusive Solutions And Get Immediate Access To Professional Support!

More Information

Typical Application Scenarios:

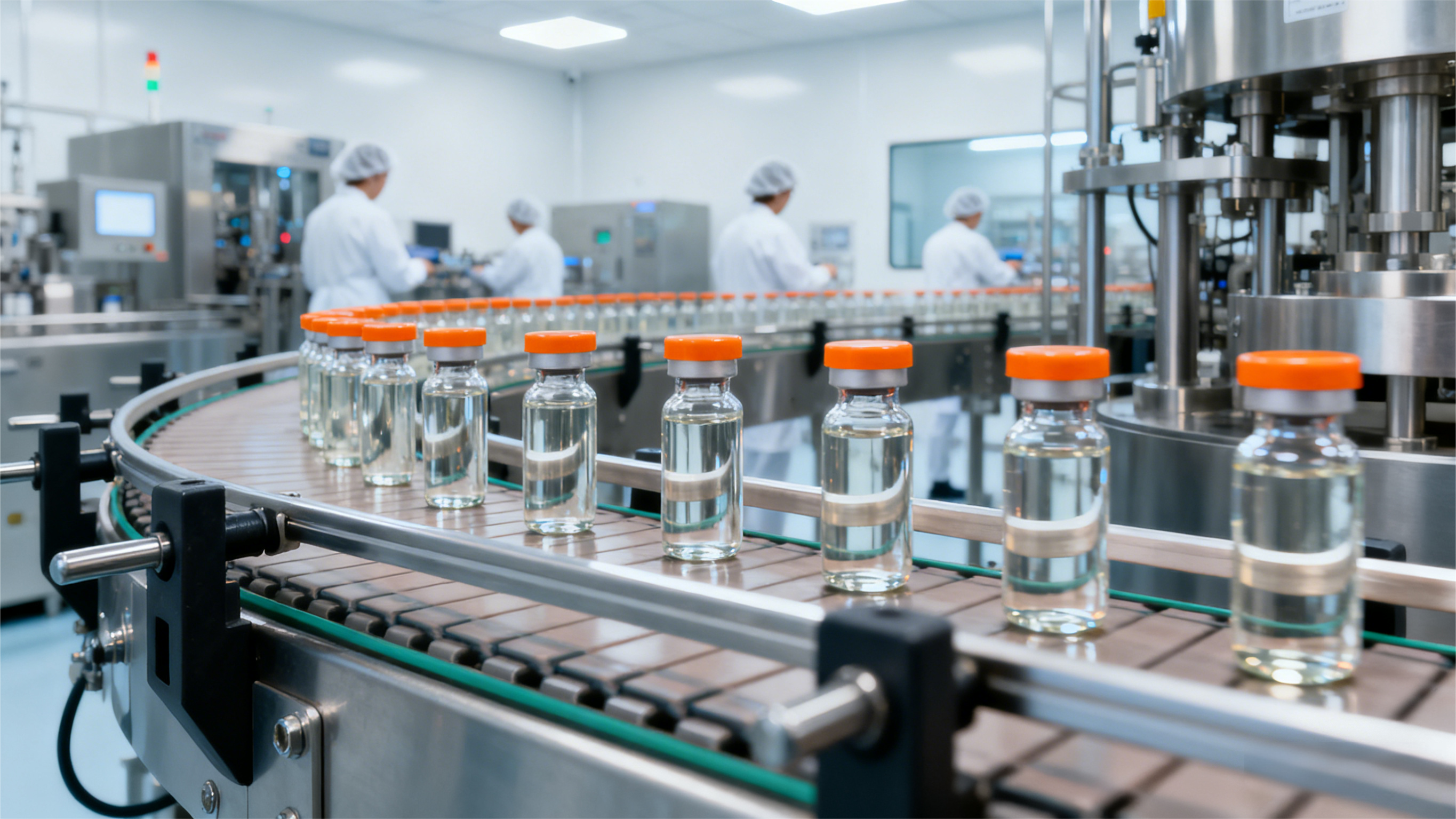

✅ Pharmaceuticals & Medical: Precise dispensing of pharmaceuticals and nutritional solutions.
✅ Chemical Production: Accurate addition of chemical additives or catalysts.
✅ Laboratory Research: Reagent addition and sample preparation for experiments.
✅ Food & Beverage: Precision ingredient and flavorant dosing.

Product Features

Product Feature	Specification
Flow Range	0.1 ml/rev - 26 ml/rev (1 ml/min - 65000 ml/min)
Inlet/outlet Pressure Differential	20-40 Bar(Customizable)
Pressure Rating	20-300 Bar(Customizable)
Operating Speed	1-4000 rpm
Operating Temperature	-120 to 150 °C
Conveying liquid viscosity range	0.2~10,000cps, Capable of handling gas-liquid two-phase viscosity
Metering Accuracy	Up to 0.1%
Lifespan & Reliability	Long service life, capable of continuous operation for 20,000 hours
Operational Characteristics	Stable, pulsation-free flow, Low noise operation
Dry Running Capability	Up to 100 hours under suitable conditions
Inlet Vacuum	-0.85 Bar (Speed dependent)
Sealing Technology	Magnetic drive, ensuring completely leak-free operation

For more general information on gear pumps, click "More Info"

Pumps	Flow Range	Differential Pressure	Pump Body Pressure Rating	More
20 Series	0-1.50L/min	20Bar	40bar	More Info
42 Series	0-2.20L/min	20Bar	20-150Bar	More Info
51 Series	0-6.00L/min	20Bar	20-150Bar	More Info
60 Series	0-10.5L/min	20Bar	40-300Bar	More Info
98 Series	0-55.0L/min	20Bar	40-300Bar	More Info
106 Series	0-65.0L/min	20Bar	40-150Bar	More Info

By offering multiple contact material options and shaft seal configurations, we tailor the optimal solution for your specific application. Contact us today to discuss your requirements.
