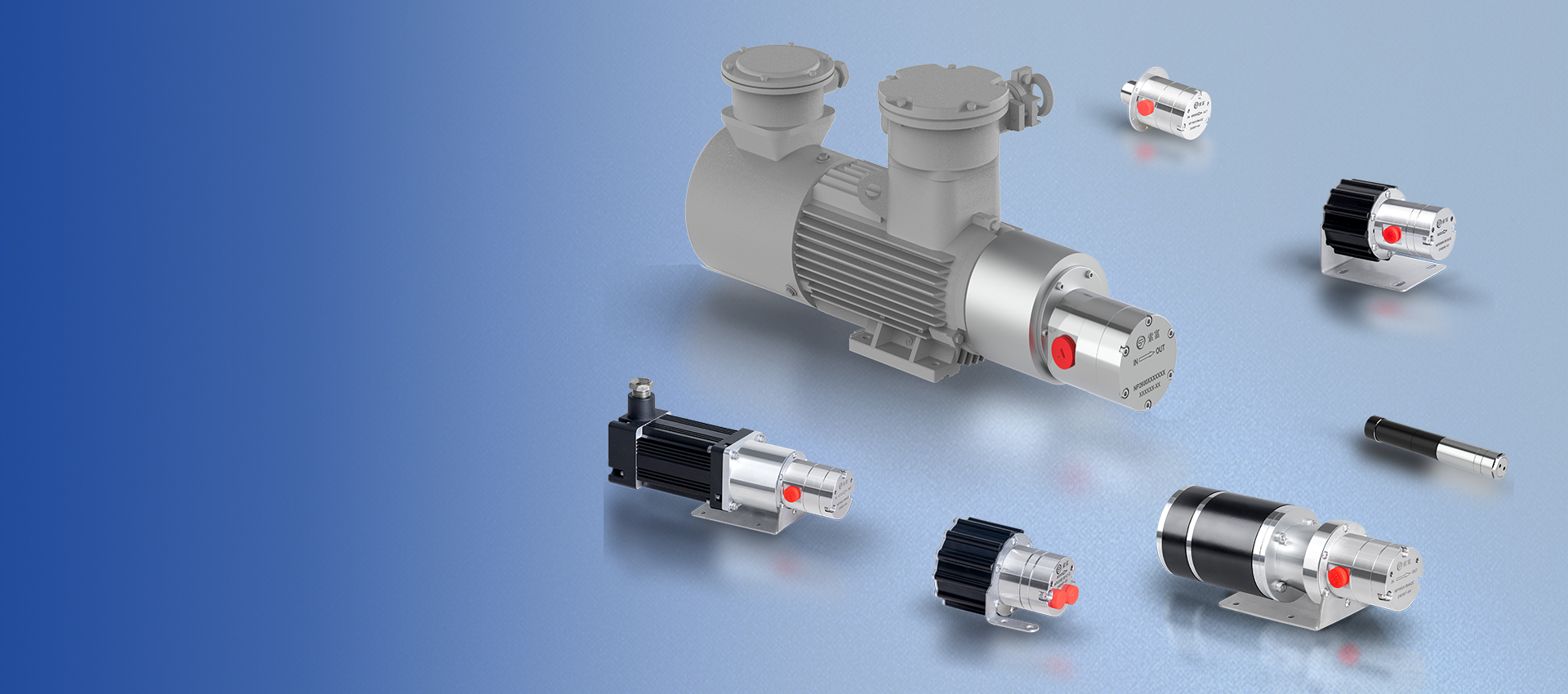

Suofu NP Series Micro Magnetic Drive Gear Pumps

Featuring a 20mm compact body and 10–20,000 rpm operation, this internal gear pump redefines precision and efficiency in micro liquid cooling...

Percision Micro Gerotor Pump

NP Gear Pump & 0-1.50L/Min

20 Series

0.10ml/rev(NP010)

Differential Pressure (max): 25 bar
System Pressure (max)｜ODM(max)
30 bar | 30 bar

With high precision (±0.1%), temperature/pressure/wear resistance, low noise, long service life, and dry-run capability, it suits precise gas-liquid two-phase delivery...

Percision Micro Gear Pump

NP Gear Pump & 0-2.20L/Min

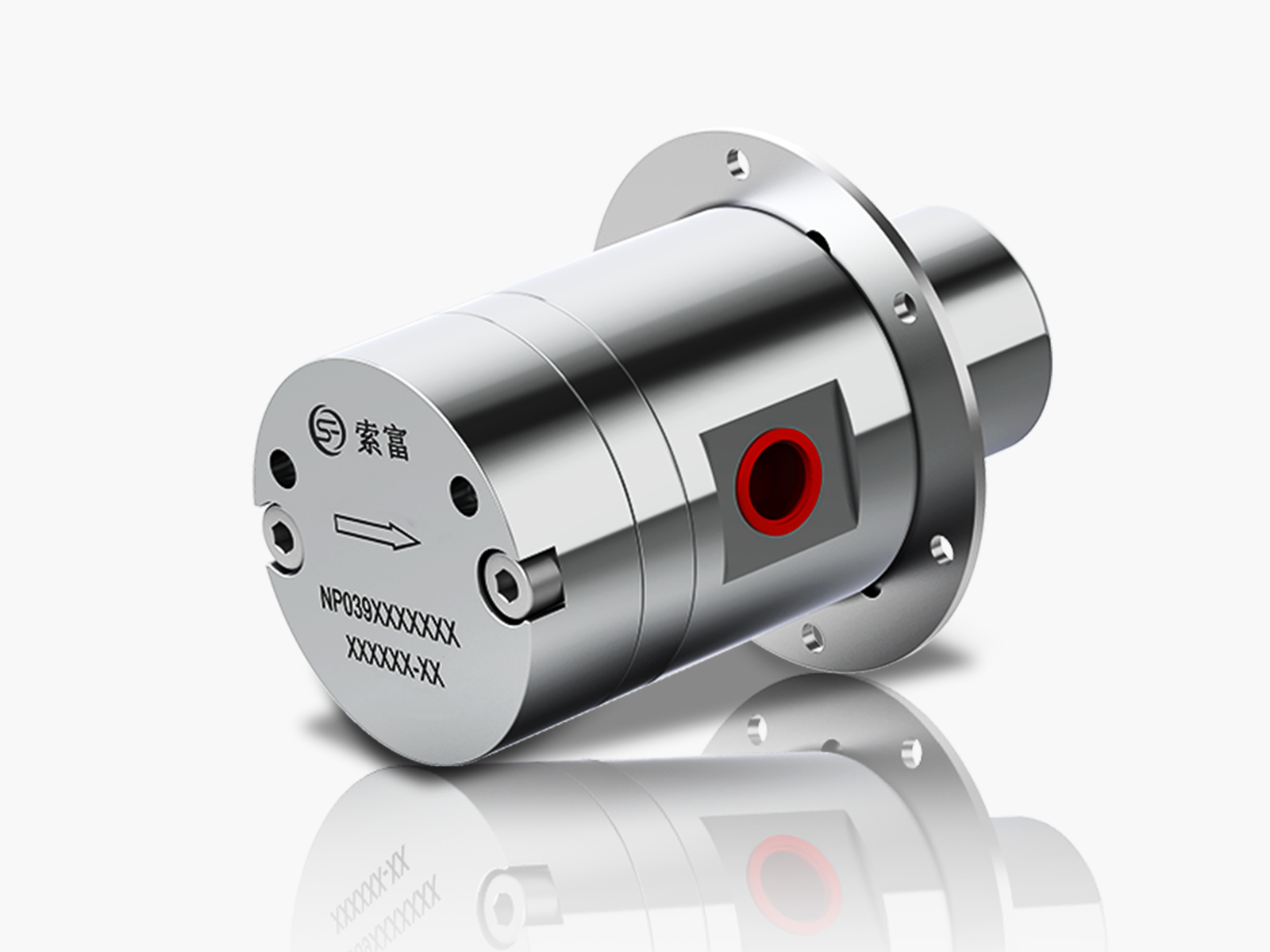

42 Series

0.2ml/rev(NP020) 0.39ml/rev(NP039)
0.6ml/rev(NP060) 0.7ml/rev(NP070)

Differential Pressure (max): 20 bar
System Pressure (max)｜ODM(max)
20 bar｜600 bar

Extensively used in fluid transfer, precise dispensing, high-accuracy metering, sampling, spraying, printing, pressurization, filtration, circulation...

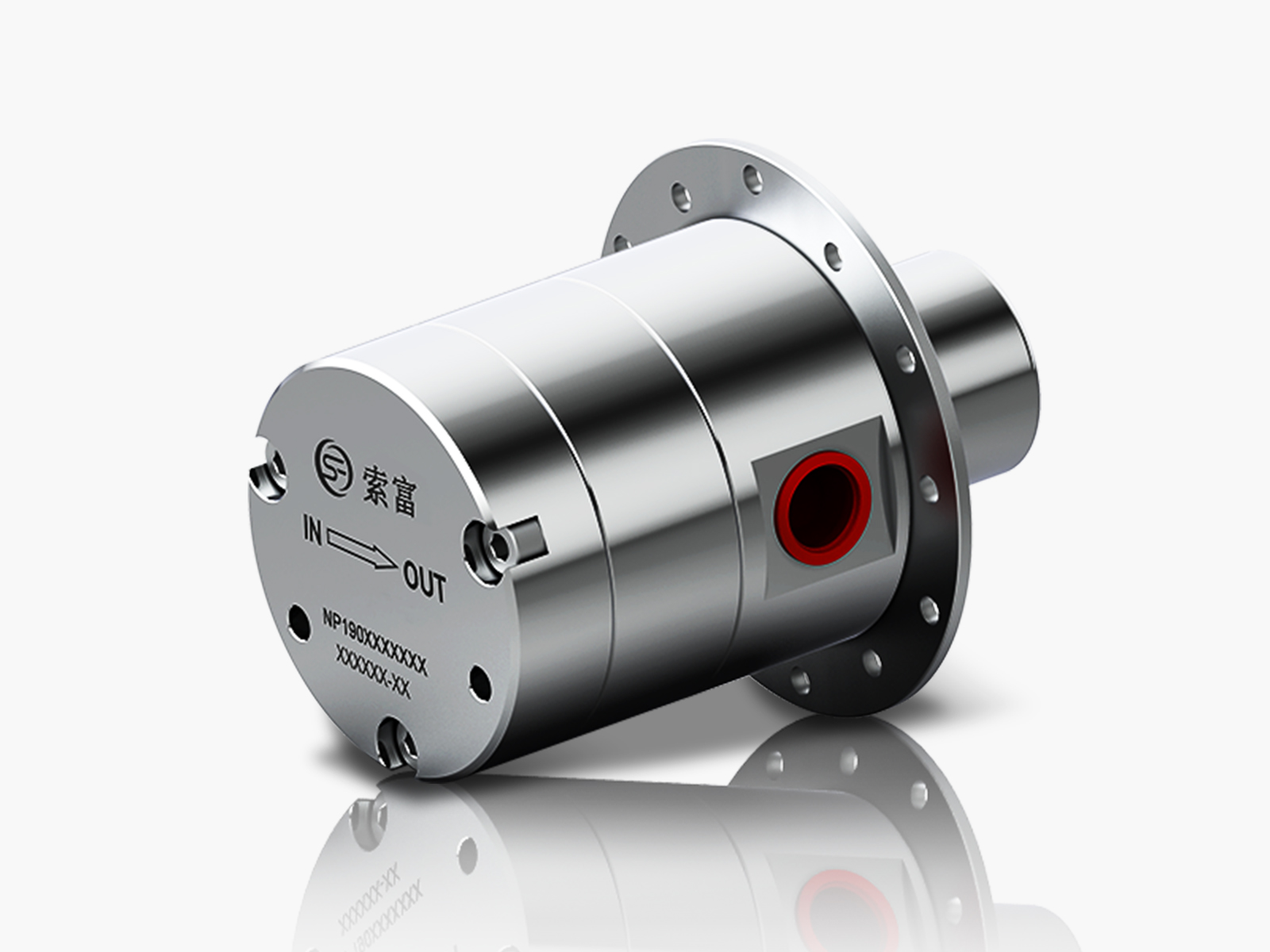

Percision Micro Gear Pump

NP Gear Pump & 0-6.00L/Min

51 Series

1ml/rev(NP100) 1.2ml/rev(NP120)
1.7ml/rev(NP170) 1.9ml/rev(NP190)

Differential Pressure (max): 20 bar
System Pressure (max)｜ODM(max)
20 bar｜600 bar

Withstanding 20Bar differential pressure and 450Bar pressure resistance, it features wear-resistant PEEK gears and ceramic shafts across 1–4000 rpm...

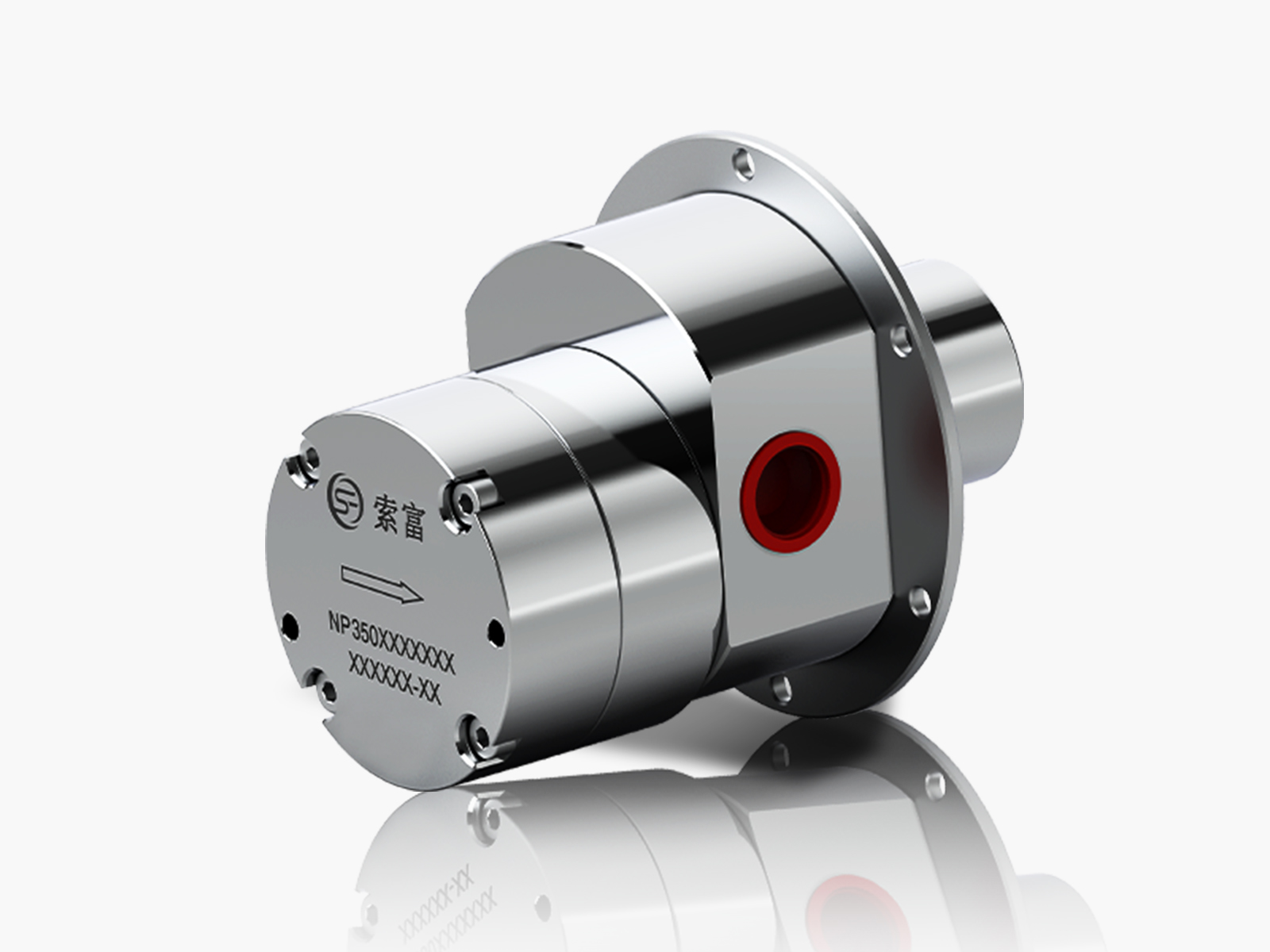

Percision Micro Gear Pump

NP Gear Pump & 0-10.5L/Min

60 Series

2.4ml/rev(NP240)

3.5ml/rev(NP350)

40Differential Pressure (max): 40 bar
System Pressure (max)｜ODM(max)
40 bar | 600 bar

Operates from -120°C to 150°C, with CE, ISO, RoHS, and REACH certification. Used in new energy, medical, industry, refrigeration, fire protection, agriculture...

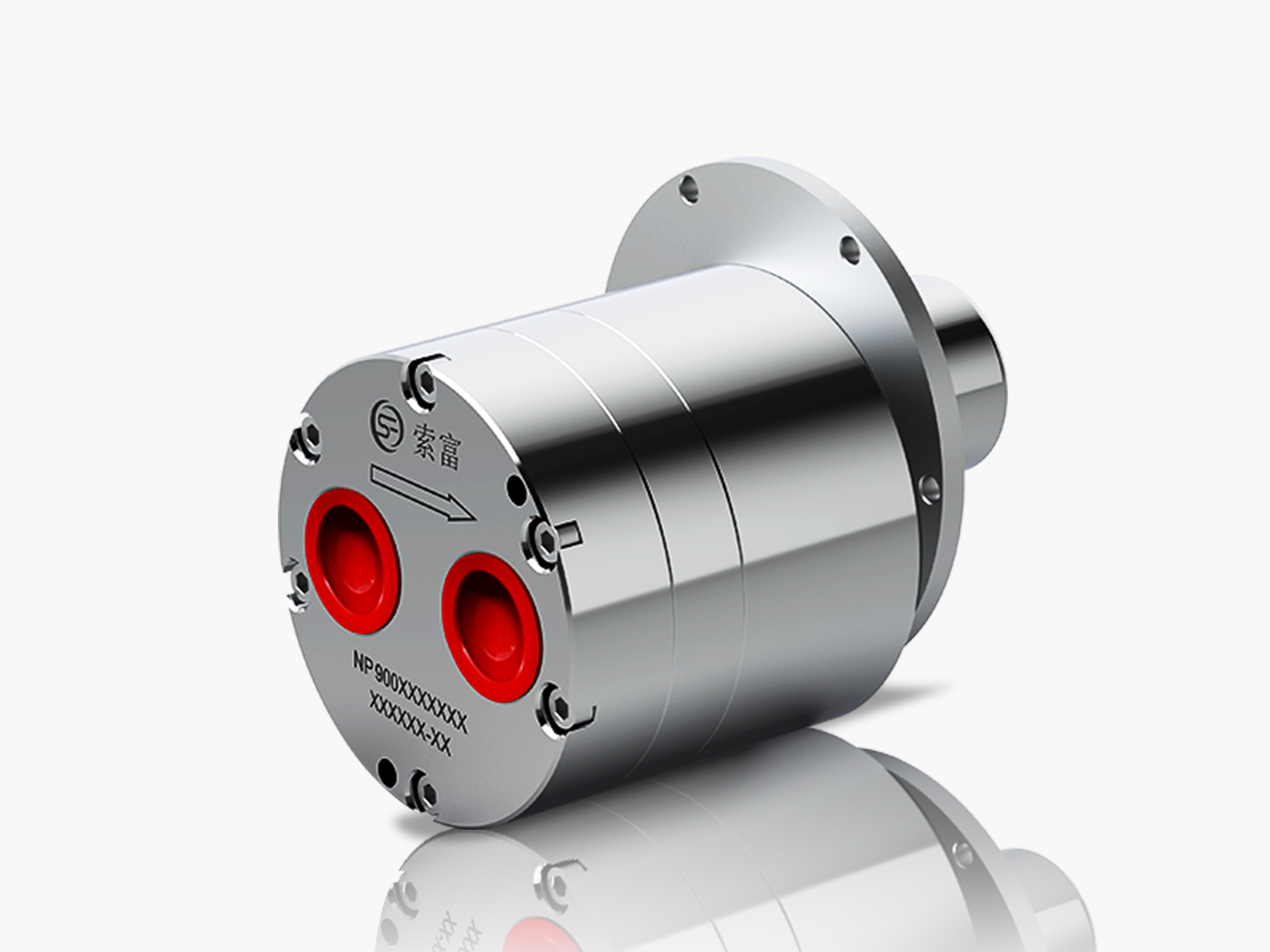

Percision Micro Gear Pump

NP Gear Pump & 0-55.0L/Min

98 Series

4ml/rev(NP400) 6ml/rev(NP600)
9ml/rev(NP900) 12ml/rev (NP1200) 17ml/rev (NP1700)

Differential Pressure (max): 40 bar
System Pressure (max)｜ODM(max)
40 bar｜600 bar

Boasting 20,000+ hours service life and flexible motor options like servo, stepper, and DC motors for precision instruments, medical equipment...

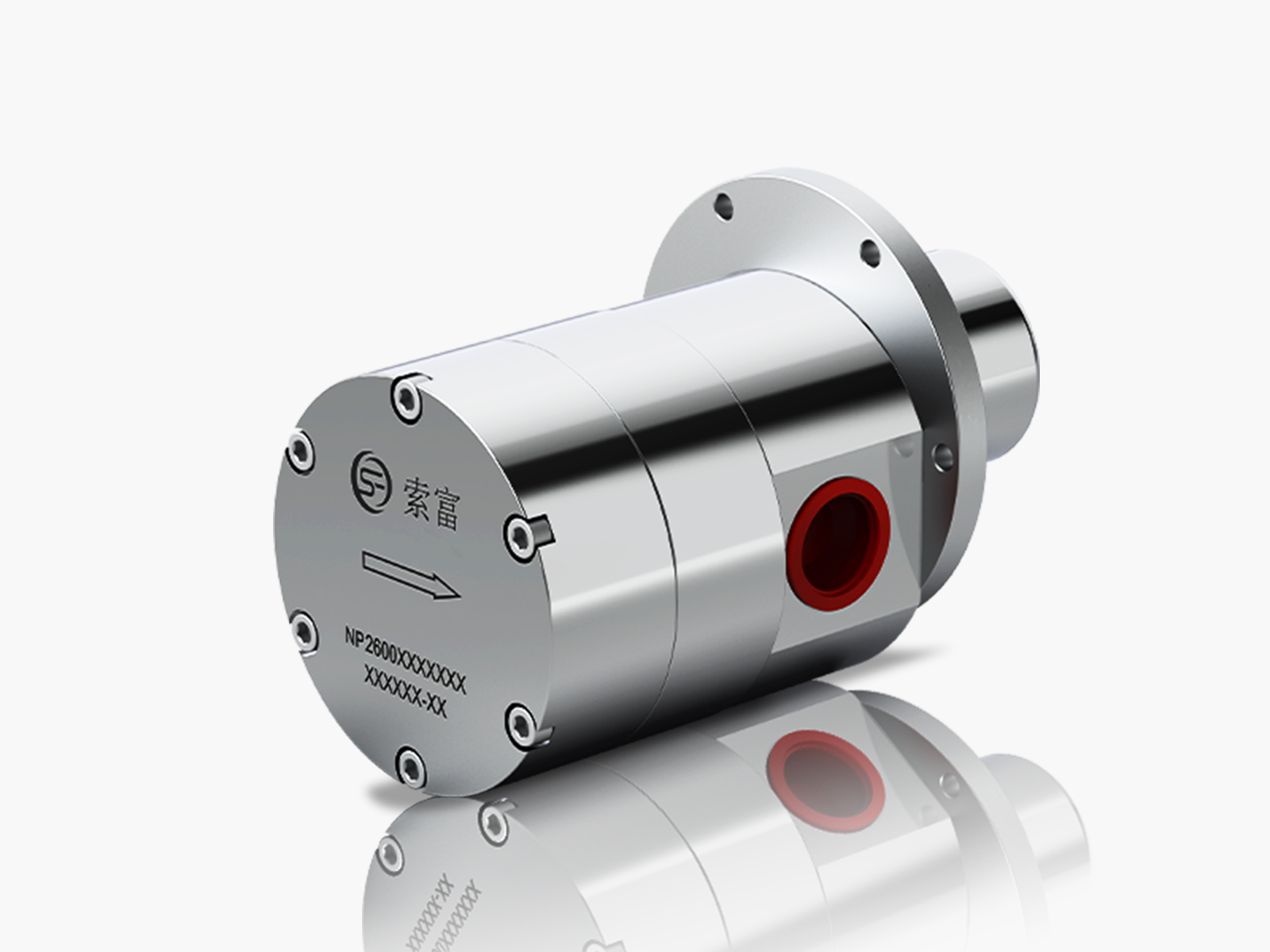

Percision Micro Gear Pump

NP Gear Pump & 0-65.0L/Min

106 Series

26ml/rev(NP2600)

Differential Pressure (max): 40 bar
System Pressure (max)｜ODM(max)
40 bar｜600 bar

For specific operating conditions, please consult us

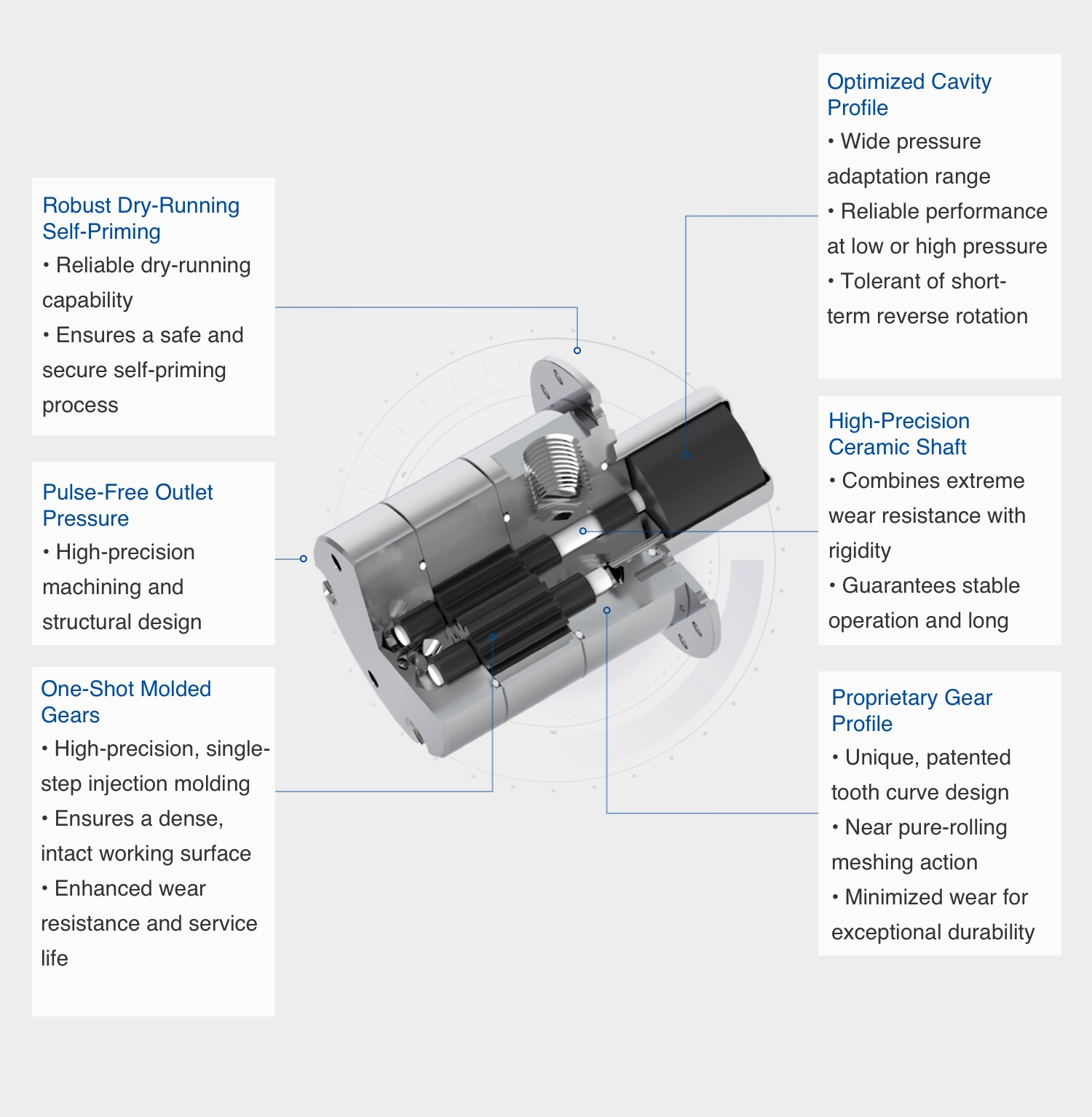

Core Strengths

Robust Dry-Running Self-Priming

• Reliable dry-running capability

• Ensures a safe and secure self-priming process

Pulse-Free Outlet Pressure

• High-precision machining and structural design

• Achieves smooth liquid transfer

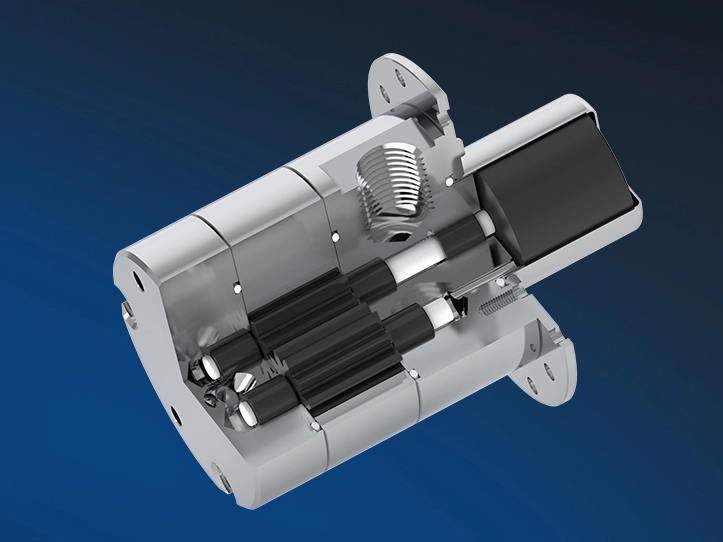

High-Precision Ceramic Shaft

• Combines extreme wear resistance with rigidity

• Guarantees stable operation and long service life under demanding conditions

Optimized Cavity Profile

• Wide pressure adaptation range

• Reliable performance at low or high pressure

• Tolerant of short-term reverse rotation

One-Shot Molded Gears

• High-precision, single-step injection molding

• Ensures a dense, intact working surface

• Enhanced wear resistance and service life

Patented Tooth Curve Design

• Near pure-rolling meshing action

• Minimized wear for exceptional durability

Function

Application

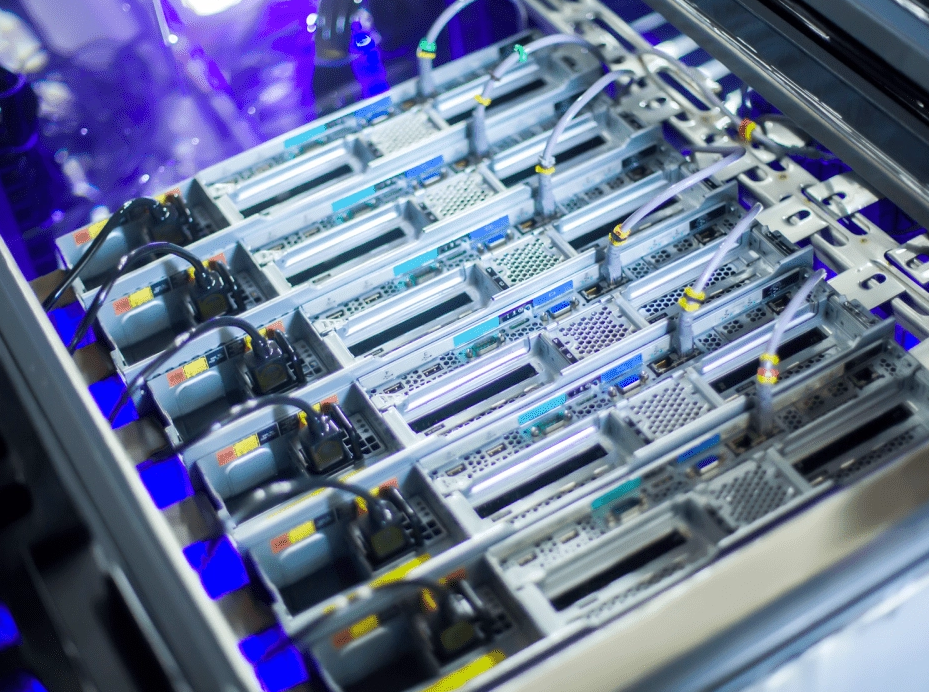

Micro magnetic gear pump for refrigeration and liquid cooling systems

Refrigeration/Liquid Cooling

Air Conditioning System / Data Center Liquid Cooling / Industrial Cooling & Temperature Control

Micro magnetic gear pump for medical and pharmaceutical equipment用于医疗和制药设备的微磁齿轮泵

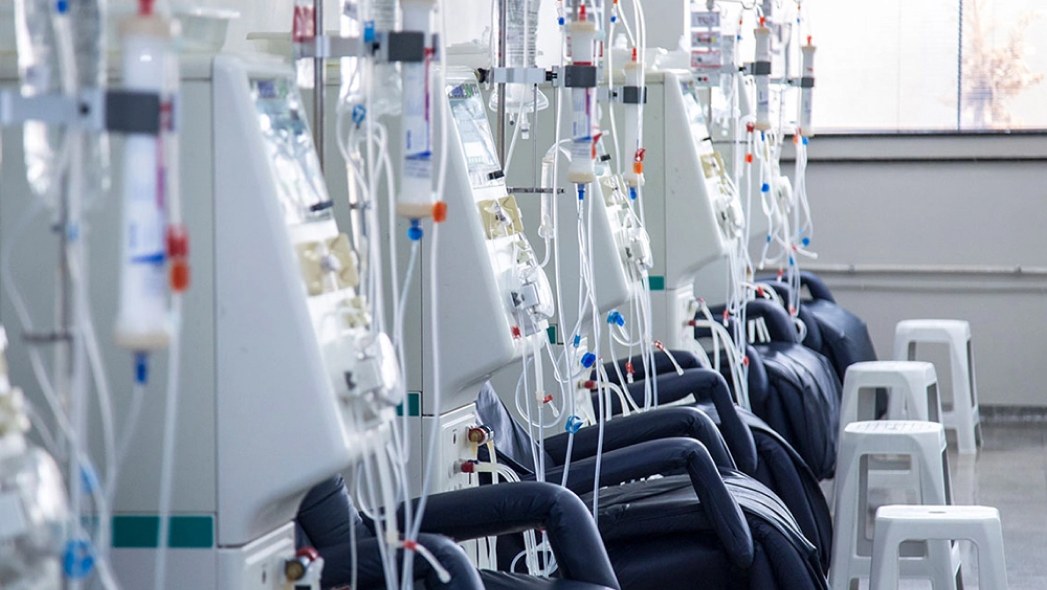

Medical / Pharmaceutical

Diagnosis & Treatment / Production Line & Laboratory Equipment

Micro magnetic gear pump for hydrogen energy and battery systems

New Energy

Hydrogen Energy Systems / Battery Technology / Energy Recovery

Micro magnetic gear pump for cleaning and disinfection equipment

Cleaning&Disinfection

Mobile Disinfection System / IVD / Microplate Washer / Cleaning and Extraction Equipment

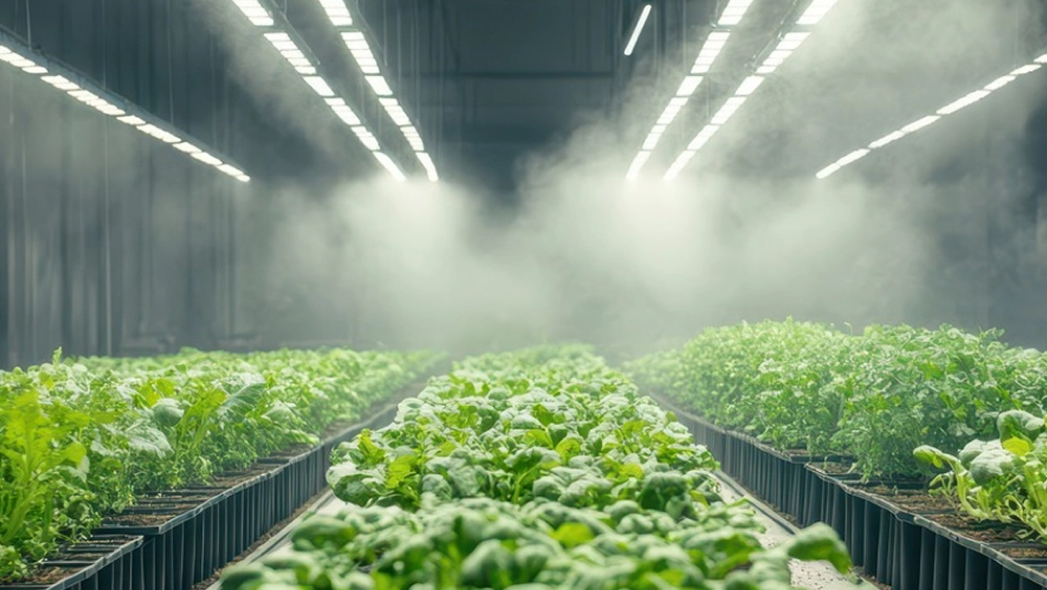

Micro magnetic gear pump for agricultural irrigation and fluid control

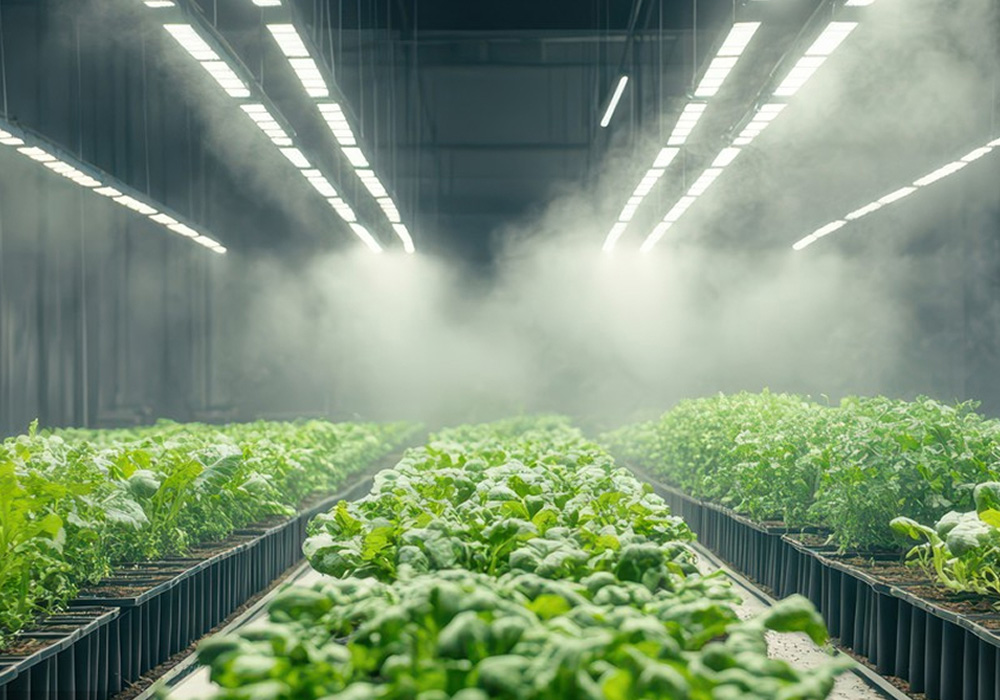

Agriculture

Irrigation System

Aerospace

Fuel Transfer / UAVs / Cooling / Compact Hydraulic Systems

Micro magnetic gear pump for industrial fluid transfer and processing

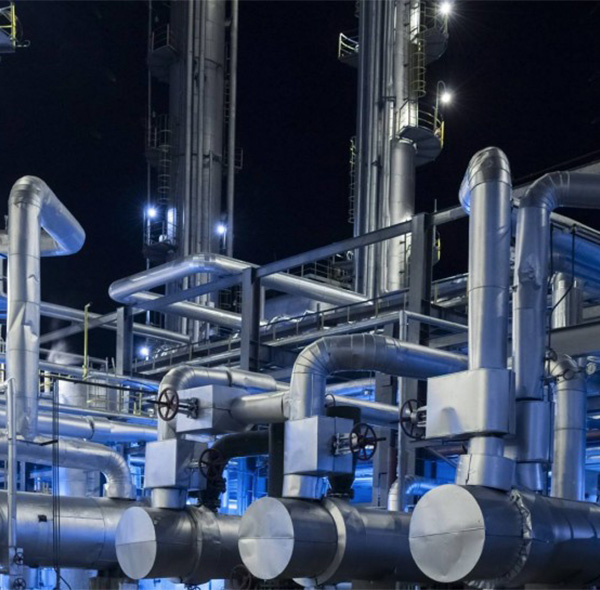

Industry

SCR / DPF/ Filling (Pharma&Industrial&Food) / Purification Systems / Dispensing & Coating...

Fire Protection

Special Fire Protection / New Energy Fire Protection

Semiconductor

Chip Low Temperature Test Stand / Lithography machine system cooling

Unlock Exclusive Solutions And Get Immediate Access To Professional Support!

Download Files

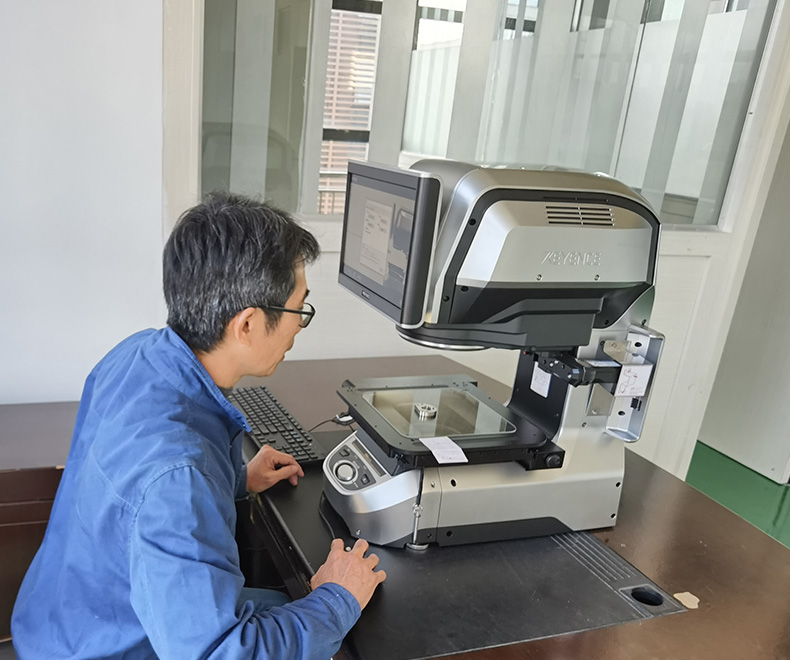

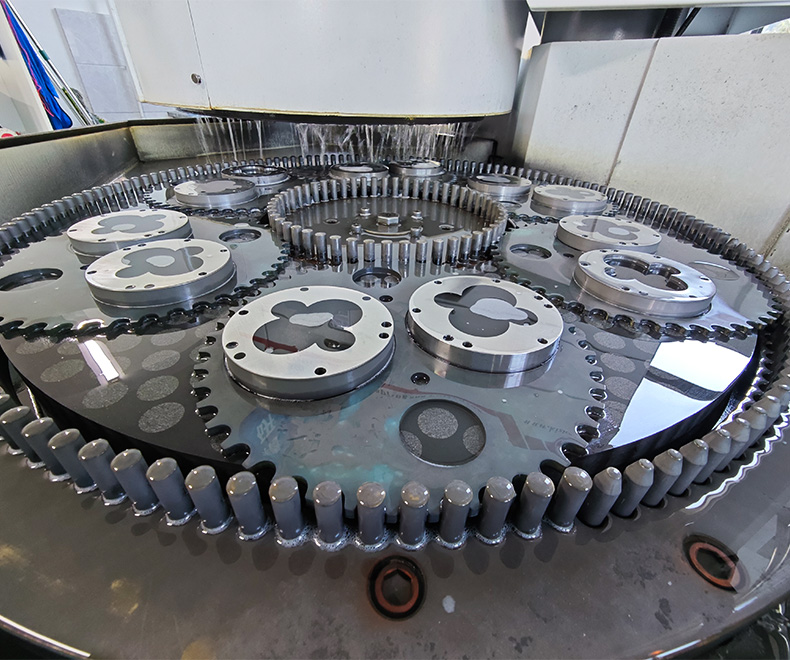

Advanced R&D Center for Micro Magnetic Gear Pump Innovation

Suofu-Micro Magnetic Gear Pump Manufacturer

Shanghai Super Fluid Co., Ltd. (Suofu), founded in 2010, is a professional manufacturer specializing in the R&D, production, and sales of micro magnetic gear pumps.

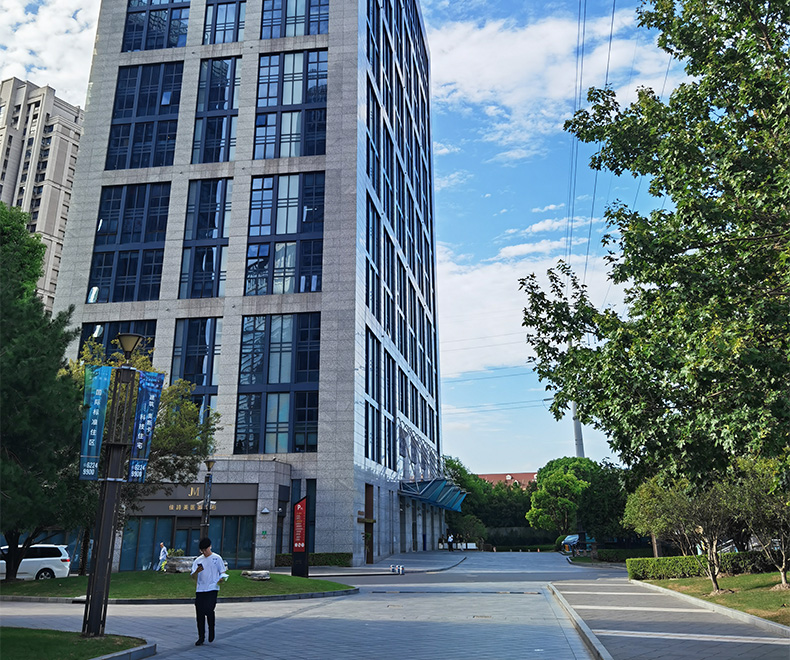

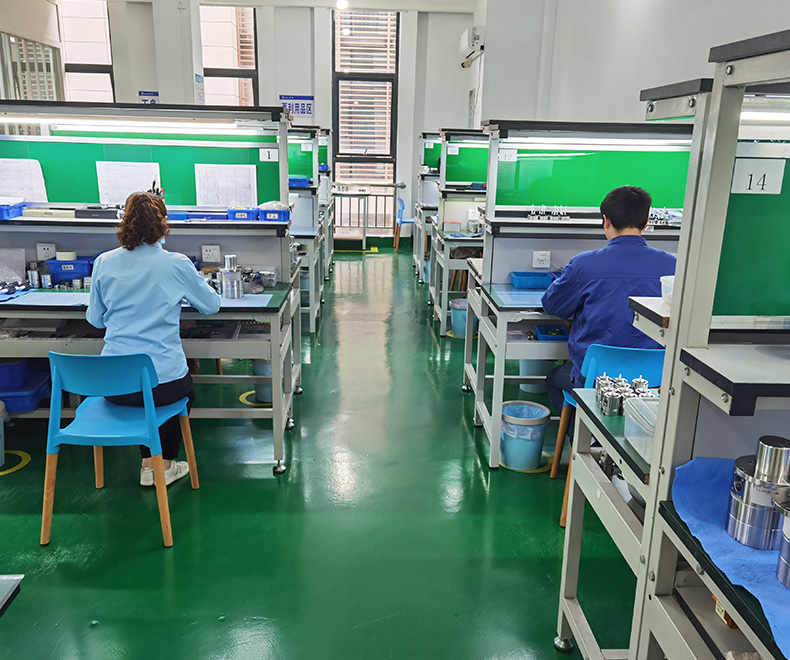

Soufu currently operates an R&D and sales center in Shanghai and a dedicated production base in Sanming City, Fujian Province, China.

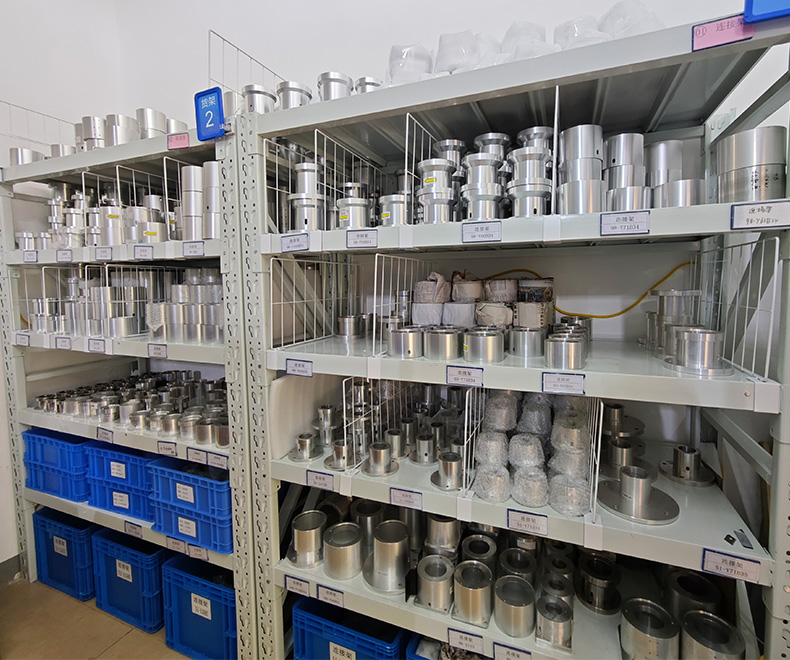

The existing production facility covers an area of 2,000 square meters. To further expand production capacity, a new factory is under construction, spanning approximately 19 mu (about 1.27 hectares), with a total floor area of 20,000 square meters.

Learn More

Founded In

Patents

Exported to Countries and Regions

DIGITAL SHOWROOM

If you want to learn more about our manufacturing capabilities, you can click on the avatar in the scene, or accept my invitation!

Why Choose Us

Technology

With 29 patented innovations, we lead in micro magnetic gear pump R&D, delivering unmatched performance and reliability in China.

Experience

Over 15 years, we have served 60+ industries and 2,000+ clients across 29 countries and regions.

Customization

We tailor and scale solutions to meet the specific needs of clients from various sectors, ensuring precise application fit.

Certification

All products carry CE marking and comply with ISO9001: 2015, ISO 14001: 2015, ISO 45001:2018, RoHS, and REACH standards.
