Precise fluid control is quietly enhancing the efficiency and quality of yeast production.
The fermentation industry, a cornerstone of modern biotechnology, sees its products widely applied across crucial sectors such as food, pharmaceuticals, and energy. Production in this industry follows a meticulous process: starting with culture medium preparation, followed by sterilization, fermentation, and then downstream processing steps like separation, purification, concentration, and drying, ultimately yielding high-purity products. Focusing on yeast production, each stage imposes stringent demands on the precise transfer and sterile handling of fluids, which directly determines the activity and value of the final product. Particularly at the critical moment before drying, accurate addition of VC solution is required to protect yeast cells and improve drying survival rates.
Historically, the commonly used peristaltic pumps in the industry often faced leakage risks due to tubing wear, potential batch-to-batch contamination, and production interruptions caused by frequent consumable replacements. Today, Micro Magnetic Gear Pumps are driving a comprehensive upgrade of yeast production towards continuous and intelligent manufacturing, leveraging their outstanding characteristics of "zero leakage, long service life, and high precision". This injects key momentum for the industry to continuously enhance product competitiveness.
01 Application Background: The Need for Precision in Yeast Production
Yeast production is a precise battle fought in the microscopic world. The entire process is interlinked, with extremely low tolerance for error:
Fermentation and Cooling: Mature yeast fermentation broth (a suspension of life) in the fermenter must be rapidly cooled to 4°C to lock in yeast activity and inhibit metabolic loss. Any temperature fluctuation exceeding the threshold can cause irreversible loss of yeast viability.
Blending and Homogenization: Adding a specific ratio of blending dry powder (containing protectants, carriers, etc.) to the yeast cream. The addition accuracy directly determines the consistency between final product batches (including survival rate, storage stability, usage effect).
Dehydration and Granulation: Yeast cream is dehydrated into a sticky yeast paste with a solid content of 30-35% (conventional process 20-30%, adjusted based on concentration level), then formed into wet granules approximately 0.5mm in diameter via extrusion granulation. This process requires stable and gentle transfer; any pulsation or shear force may lead to uneven granule size and damage the yeast cell membrane structure.
Drying: The most crucial step. In the fluidized bed, the temperature of yeast granules must be precisely controlled within the narrow range of 37°C-38°C. Exceeding 45°C causes a sharp decline in activity. This requires the flow rate and temperature of the heating medium (hot air) to be extremely precise and stable, avoiding local overheating that deactivates the yeast.
The leakage risks and sanitary dead ends of traditional mechanical seal pumps made them unsuitable. Therefore, for a considerable time, many companies opted for peristaltic pumps.
02 Why Gear Pumps Will Ultimately Replace Peristaltic Pumps?
However, as yeast production advances towards large-scale, continuous operation, and refined cost control, the inherent shortcomings of peristaltic pumps become glaringly apparent under the magnifying glass of cost and efficiency, while the advantages of gear pumps precisely meet the demands of this new stage:
Comparison Dimension
Shortcomings of Peristaltic Pumps (in large-scale production)
Advantages of Micro Magnetic Gear Pumps
Long-term Operating Cost
Very high. Tubing is a continuous consumable requiring periodic replacement. High-quality sanitary tubing is expensive, leading to massive cumulative material and labor costs.
Very low. No consumable tubing. Core components are metal or ceramic, offering extremely long service life (years). Significantly lower Total Cost of Ownership.
Flow Accuracy & Stability
Degrades over time. Tubing fatigues and loses elasticity with use, causing flow drift. Even with calibration, maintaining absolute accuracy over long continuous runs is difficult.
Very high and stable. Fixed displacement per gear revolution, accuracy up to ±0.1% or higher. No degradation over long runs, ensuring absolute recipe consistency and stability of key process parameters like drying temperature.
Continuous operation. No need for downtime due to the "pump itself". Supports 7x24 continuous production, greatly improving efficiency.
Pressure & Viscosity Capability
Limited. Restricted by tubing strength and life, output pressure is usually low (typically <0.4 MPa). Handling very high viscosity fluids causes extremely rapid tubing wear.
Strong. Can provide stable, higher outlet pressure, easily handling pipeline resistance and stable transfer of high-viscosity yeast paste.
Shear Sensitivity
Relatively low but pulsating. Low shear at suitable speeds, but the tubing compression itself imposes pulsating shear on the fluid.
For shear-sensitive materials, micro magnetic gear pumps can achieve very low shear transfer by reducing speed and adjusting clearances, effectively protecting material activity.
Automation & Cleaning (CIP/SIP)
Complex automation. Automatic tubing change mechanisms are complex and expensive. Tubing connections can create cleaning dead ends. CIP/SIP effectiveness depends on tubing material tolerance.
Suitable for CIP.
Core Drivers for the shift from Peristaltic to Gear Pumps:
Long-term Economic Benefit: The gear pump's extremely low maintenance cost and zero consumables advantage allows it to recoup its higher initial purchase cost within 1-2 years, offering huge long-term economic benefits.
Quality and Consistency Driven: Market competition demands highly stable indicators like product activity, particle size, and fermentation efficiency. The gear pump's unparalleled long-term accuracy stability is a critical technical link ensuring end-product quality consistency.
Scale and Automation Driven: Large-scale continuous production requires equipment with high reliability, maintenance-free operation, and easy integration. Gear pumps excel in these three aspects compared to peristaltic pumps requiring frequent intervention.
Technological Advancement Assurance: The maturity of Magnetic Drive Technology has solved the final shortcoming of potential leakage from traditional gear pump shaft seals, allowing them to meet the same "leak-free, fully isolated" sanitary standards as peristaltic pumps. Advancements in Low-Shear Gear Design and High-Precision Machining Technology have addressed concerns about gear pumps potentially damaging cells and precision issues.
Therefore, this transition is an inevitable choice for industrial upgrading: Micro Magnetic Gear Pumps have become the mainstream and even preferred solution for core links in large-scale industrial yeast production lines, such as yeast cream transfer, precise additive dosing, yeast paste transfer, and CIP systems.
It represents a paradigm shift for yeast production from a "craft" to a "precision modern industry". Its core value lies in achieving more stable, more efficient, and more automated high-quality production at a lower long-term cost.
03 Suofu Solution: The "Precision Solution" Customized for the Yeast Industry
Application Focus: The Precise Guardian of VC Solution
At the final stage before yeast drying, a micro amount of VC (Ascorbic Acid) solution needs to be added to increase the survival rate of yeast during drying. The addition ratio is extremely precise. This demands transfer that is exceptionally accurate, stable, and contamination-free.
Suofu Configuration:
Suofu NP Series Micro Magnetic Gear Pumps support optional Brushless DC, AC, or Servo motors, adaptable to different accuracy needs, forming a compact metering and transfer system.

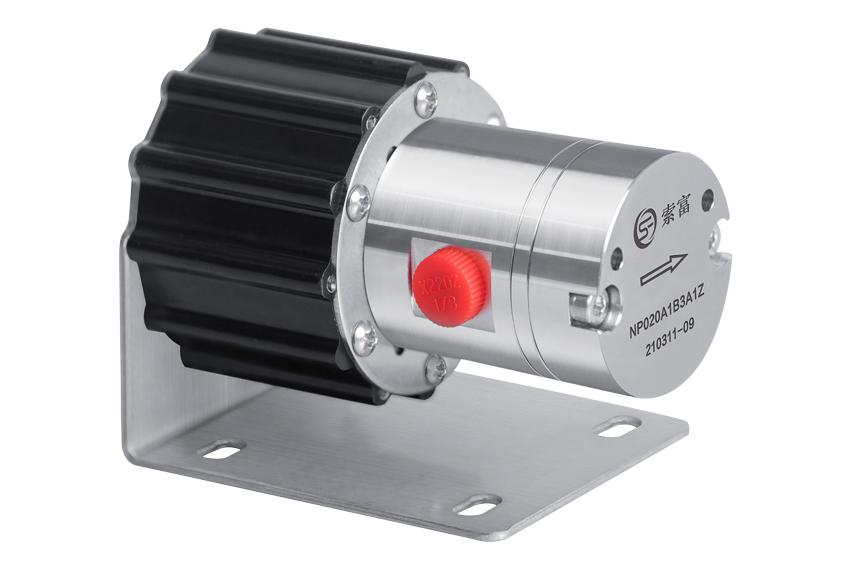

NP020 with Brushless DC motor

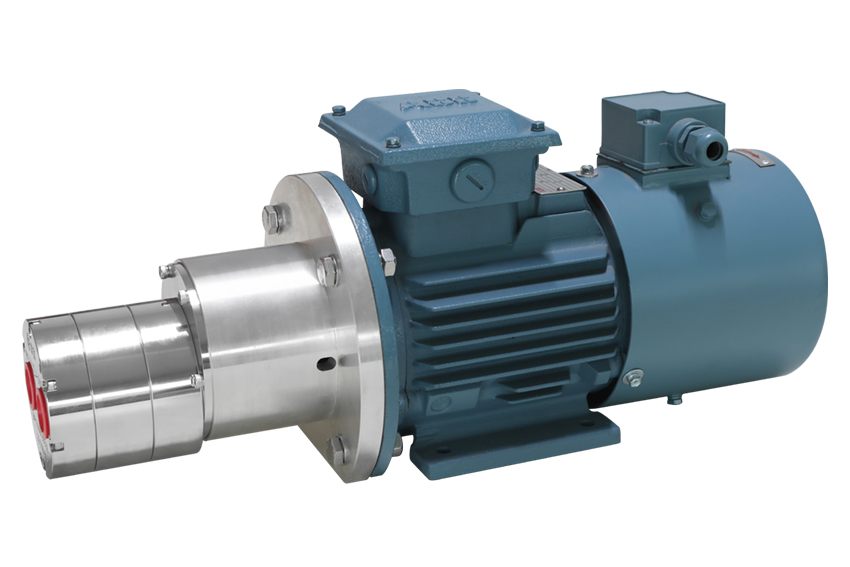

NP1700 with AC motor

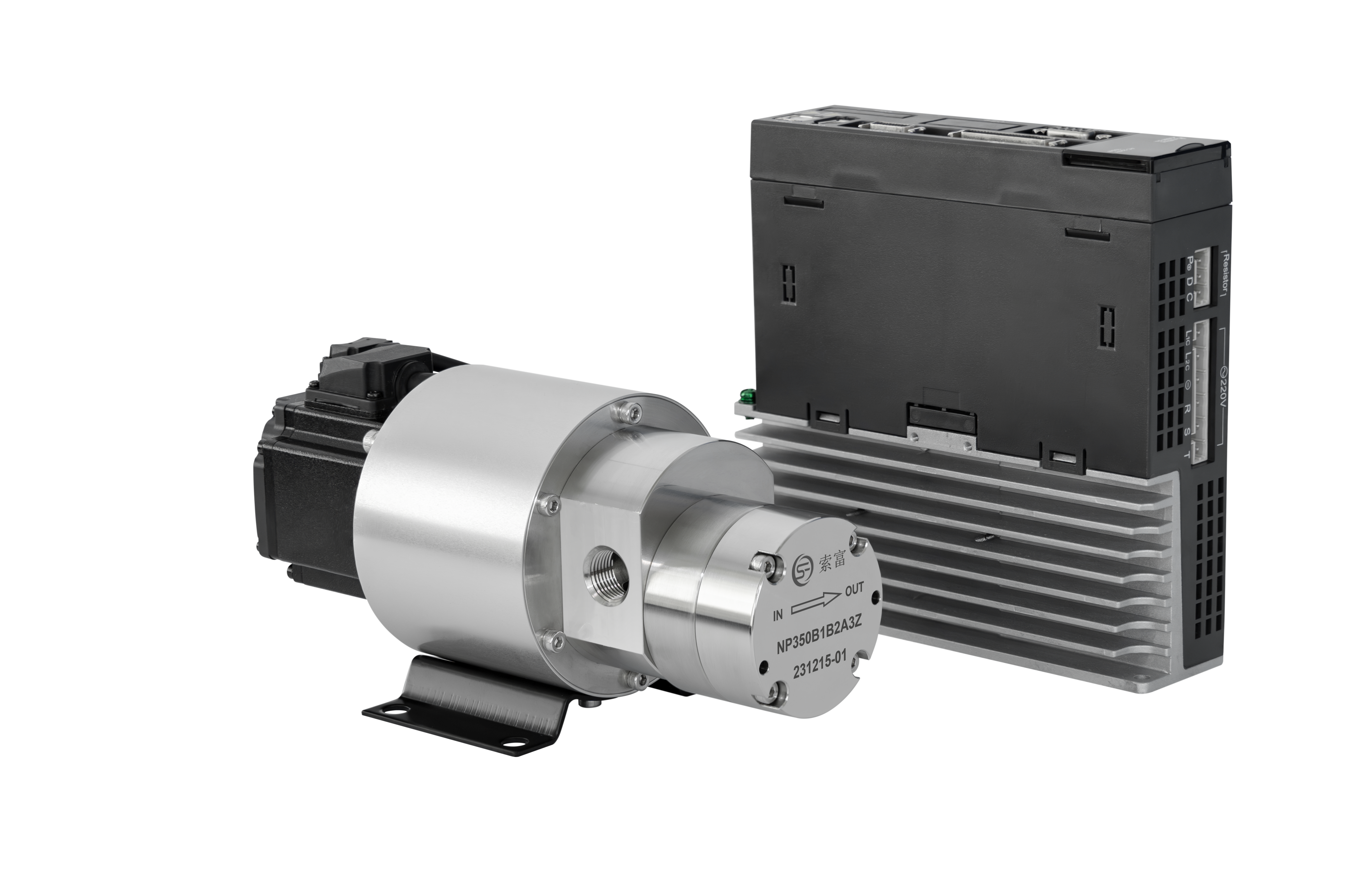

NP350 with Servo motor
Core Technical Advantages: Suofu Micro Magnetic Gear Pumps are specifically designed for the stringent requirements of sterility, precision, and reliability in bio-manufacturing industries like yeast production. They integrate multiple core technologies to deliver exceptional value beyond traditional pump types.
Absolute Leak-free Sanitary Guarantee: Utilizes fully enclosed magnetic coupling drive technology, eliminating dynamic seals entirely and achieving complete physical isolation of the transferred medium from the external environment. This fundamentally prevents leakage and contamination risks, fully complies with the highest GMP and food-grade sanitary requirements, and ensures the purity and safety of every batch.
Excellent Metering Accuracy and Stability: Through precision gear design and manufacturing processes, combined with high-precision drive systems, Suofu pumps can achieve metering accuracy as high as ±0.1%. Flow output is continuous, stable, and pulsation-free, eliminating the need for additional dampeners or pulsation dampeners. This enables excellent batch-to-batch consistency in critical process steps like VC solution addition, making them an ideal replacement for peristaltic pumps whose accuracy fluctuates with tubing aging.
Exceptional Reliability and Long Service Life:Non-contact drive components inside the pump result in minimal wear on critical parts. Suofu pumps are designed for a service life exceeding 20,000 hours, far surpassing peristaltic pumps requiring frequent tubing changes and diaphragm pumps needing periodic diaphragm replacements. This significantly reduces consumable costs and maintenance frequency, perfectly adapting to 7x24 continuous production demands.
Compact, Flexible & Powerful Adaptability:Small footprint, easy to integrate into existing production lines or new equipment designs. Simultaneously possesses strong operational adaptability:Wide temperature tolerance (-20°C to 150°C), Broad viscosity range (0.3 - 20,000 cPs), High pressure differential resistance (eliminating "tube burst" risk compared to peristaltic pumps). Furthermore, its optimized structure with a reduced number of parts simplifies daily inspection, cleaning, and later maintenance, effectively lowering lifecycle operational costs.
Smooth, Pulsation-free Flow, Protecting Yeast Viability: Through optimized gear design, Suofu magnetic gear pumps achieve low-shear, pulsation-free smooth transfer. This gentle fluid handling is crucial for shear-sensitive biological cells like yeast, maximizing the protection of their cellular integrity, thereby guaranteeing the high activity and fermentation potency of the final product.
Authoritative Certifications:Suofu Micro Magnetic Gear Pumps have undergone rigorous validation globally, including but not limited to:CE Marking, ISO 9001:2015, IP55 Protection Rating, Food-Grade FDA FDA CFR21 compliance materials, etc.
04 Application Scenarios
➤➤ Yeast Cream Transfer: Handling suspensions containing yeast cells, moderate viscosity. With its low-shear characteristics, the micro magnetic gear pump enables stable transfer without damaging cells, preserving yeast activity. ➤➤ Nutrient Additive Dosing: Requires precise metering and addition of various nutrients and conditioners. The magnetic pump's precise control capability can achieve flow accuracy within ±1%, ensuring recipe accuracy. ➤➤ CIP Cleaning: When receiving cleaning solutions and purified water rinses, the pump's dead-leg-free design facilitates thorough cleaning, while its corrosion resistance withstands the chemical action of cleaning agents.
➤➤ Temperature Control: In the temperature control stage of yeast drying, the magnetic pump can stably transfer heating or cooling media, ensuring temperature is maintained in the optimal 37°C-38°C range.
05 Future Outlook
As the yeast industry moves towards greening and intelligent development, every step of the production process faces the ultimate test of efficiency and precision. In this progression, the Micro Magnetic Gear Pump has evolved from an "optional equipment" to a key cornerstone ensuring core quality and enabling continuous production.
As a deep cultivator in this field of precision drive technology, Suofu continues to respond to industry calls with technological innovation. Let us jointly drive yeast production, and indeed the entire bio-manufacturing sector, towards a new future that is more precise, more reliable, and more sustainable.
