Views: 0 Author: Suofu Publish Time: 2026-04-09 Origin: Site
In the field of precise fluid transfer, gear pumps and electric diaphragm pumps are two common choices. However, they exhibit significant differences in pressure stability, service life, temperature tolerance, and viscosity adaptability.
This article provides an in-depth comparison of the core technical performance of these two pump types, helping you make the most informed selection decision.
Within the precise fluid systems of equipment used in chemical, pharmaceutical, environmental protection, and laboratory analysis applications, the pump is the core "heart". Improper selection can lead to unstable system pressure, drastically reduced lifespan of critical components, or even complete production line downtime.
As an Original Design Manufacturer (ODM) specializing in the R&D and manufacturing of micro magnetic gear pumps, Shanghai Super Fluid Co., Ltd. (Suofu) understands the importance of precise pump selection. This article provides an objective comparison of the key performance characteristics of magnetic gear pumps and electric diaphragm pumps based on practical engineering experience, offering you a reliable basis for selection.
1. Pressure Range and Long-Term Operational Stability

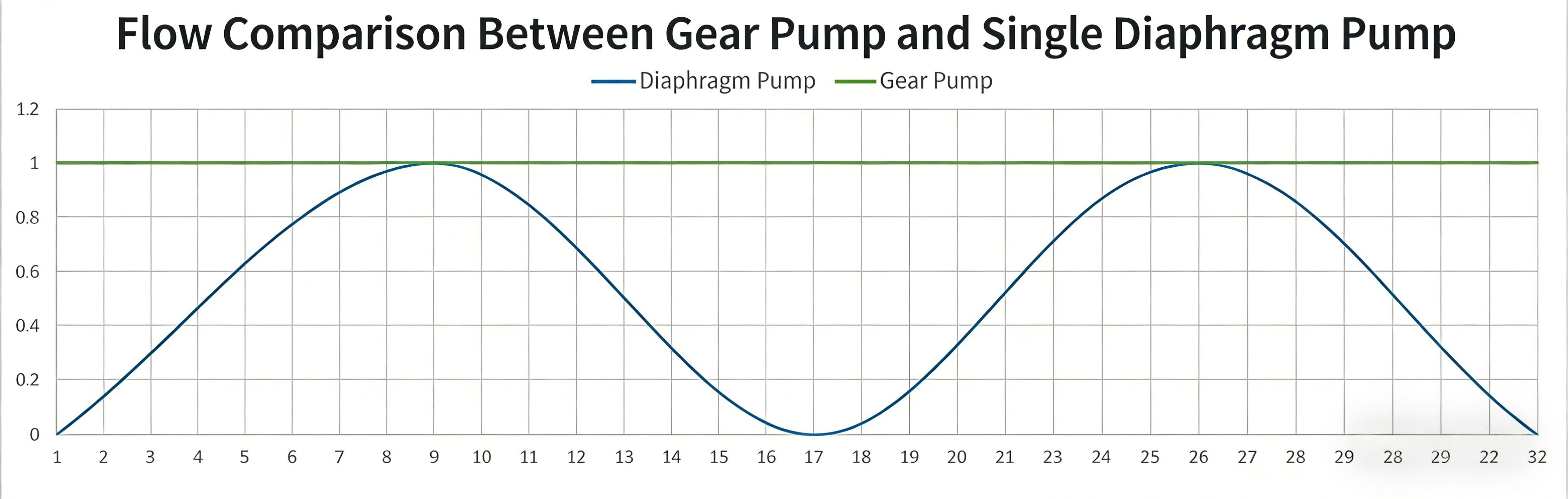

Electric Diaphragm Pump: Its working principle is similar to a piston, transferring fluid via the reciprocating motion of a diaphragm. This results in inherent pressure pulsation (sinusoidal wave fluctuation) in its output. This is a challenge for applications requiring stable pressure, such as precision spraying, chromatography, and cooling circulation. Furthermore, limited by its structure and materials, the maximum working pressure of conventional electric diaphragm pumps typically does not exceed 10 bar.

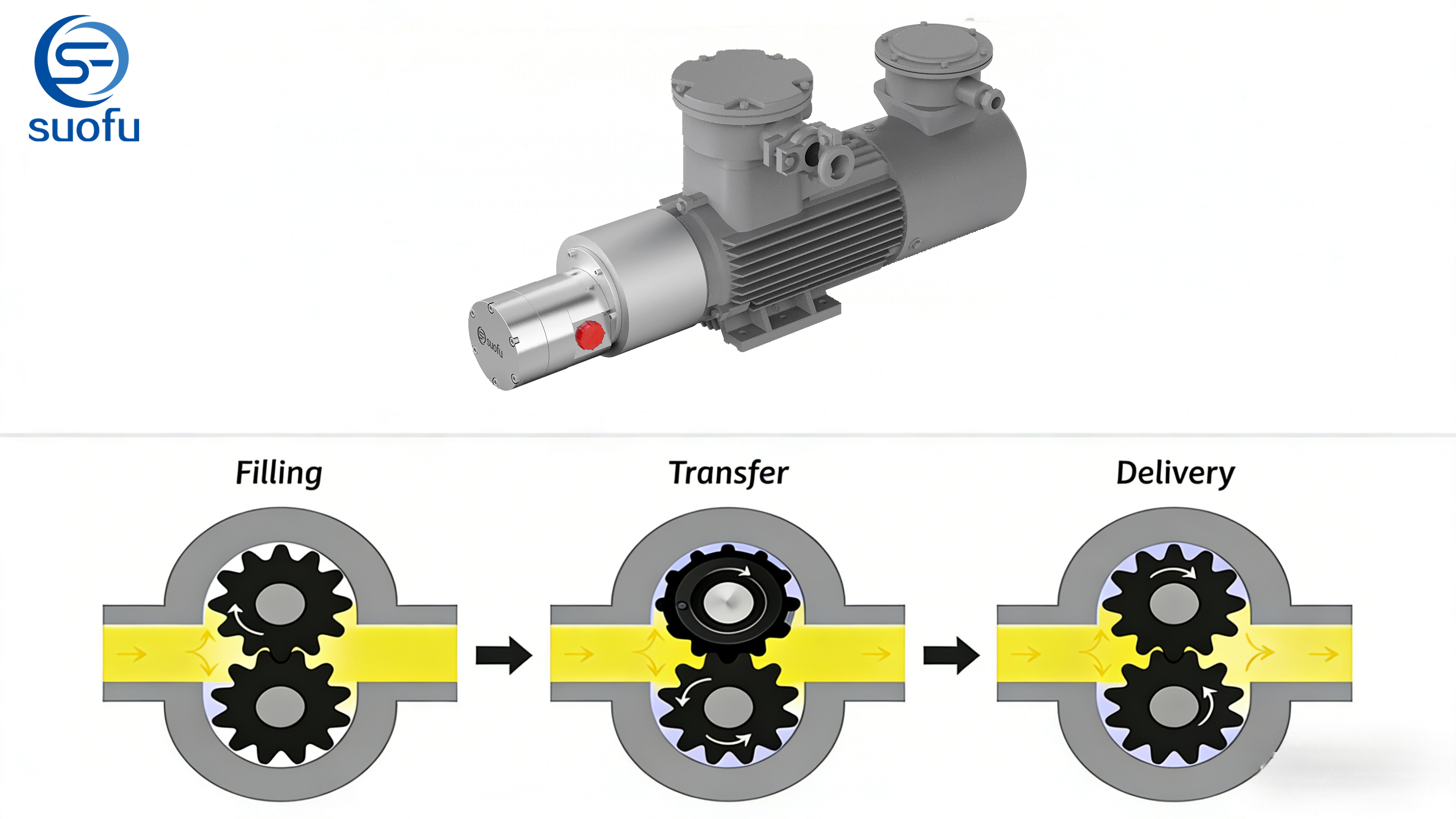

Suofu Micro Magnetic Gear Pump: It operates on the positive displacement principle of continuous gear rotation, delivering smooth, nearly pulse-free output pressure. Its gear structure and high-strength materials give it a pressure-bearing capacity far exceeding that of diaphragm pumps, with a designed maximum pressure of up to 40 bar. Operating long-term at 10 bar poses very low risk, ensuring a more reliable service life.
From an Engineering Perspective: If your equipment requires stable system pressure, or if the operating pressure is close to 10 bar, the Suofu Magnetic Gear Pump is the more reliable choice.
2. Pump Life and Maintenance Costs
Electric Diaphragm Pump: Its core component—the connection point between the rubber diaphragm and the connecting rod—is a stress concentration point. Under continuous pressure, the diaphragm is prone to fatigue fracture at this point, requiring periodic replacement. This is a non-negligible disadvantage for equipment manufacturers seeking low maintenance costs.
Suofu Micro Magnetic Gear Pump: It employs a non-contact magnetic drive transmission, eliminating leakage issues associated with dynamic seals. Its core transmission component—the gears—experience minimal wear thanks to precision machining and high-strength materials (e.g., PEEK). As long as it operates within the specified conditions, its service life far exceeds that of diaphragm pumps, significantly reducing user maintenance costs and downtime.
3. Fluid Temperature Tolerance Range
Electric Diaphragm Pump: Conventional rubber diaphragms have a relatively narrow temperature tolerance range, typically between -10°C to 70°C. Beyond this range, rubber accelerates in aging, becoming brittle or soft, leading to failure. Although metal diaphragm options exist, they are costly and bulkier.
Suofu Micro Magnetic Gear Pump: Its core gears can be made from high-grade engineering plastics like PEEK, broadening the temperature tolerance range to -120°C to 150°C. This means that whether for low-temperature cooling or high-temperature medium transfer, the magnetic gear pump offers superior adaptability and reliability.
4. Fluid Medium Viscosity Adaptability
Electric Diaphragm Pump: It relies on the opening and closing of inlet/outlet check valves to prevent backflow. When transferring high-viscosity liquids, the valve operation is delayed, easily causing liquid backflow, a sharp drop in flow rate, or even complete pump failure.
Suofu Micro Magnetic Gear Pump: Its working principle involves gear meshing to push the liquid, with no check valve structure. Increased viscosity merely demands more power from the motor and can be well-adapted to by reducing the rotational speed. Therefore, it has a natural advantage in transferring high-viscosity liquids (e.g., grease, resin, slurry).
Performance Dimension | Electric Diaphragm Pump | Suofu Micro Magnetic Gear Pump |
|---|---|---|
Pressure Stability | Exists periodic pulsation | Stable, almost no pulsation |
Max. Working Pressure | Relatively low (typically ≤10 bar) | High (up to 40 bar) |
Core Component Life | Shorter (diaphragm prone to fatigue) | Long (minimal gear wear) |
Temperature Tolerance Range | Narrow (depends on diaphragm material) | Wide (-120°C ~ 150°C) |
Viscosity Adaptability | Poor (prone to failure with high viscosity) | Excellent (suits medium to high viscosity) |
Maintenance Cost | Higher (requires periodic diaphragm replacement) | Low (no diaphragm replacement needed) |
Selection Recommendations:
Prioritize the Micro Magnetic Gear Pump when your equipment requirements meet one or more of the following points:
Requires high pressure and stable, pulse-free flow output.
Pursues long life and low maintenance to reduce downtime.
The transfer medium has a wide temperature range or high viscosity.
The medium is corrosive, expensive, or hazardous, requiring zero leakage (magnetic drive ensures complete sealing).
Electric diaphragm pumps may be suitable for certain specific scenarios with extremely low pressure demand (<7 bar) and where the medium is a common, low-viscosity liquid.
Based on the performance advantages above, in the following fields with extremely high reliability requirements, the Suofu Micro Magnetic Gear Pump is undoubtedly the preferred solution:
➤ Precision Chemical and Pharmaceutical Equipment:
Scenarios: Precise feeding for reaction kettles, solvent delivery for chromatographic instruments, process analysis sampling.
Reason: Requires highly stable flow and pressure to ensure reaction and analysis accuracy; simultaneously handles potentially corrosive solvents, where the magnetic pump's sealing and chemical resistance are crucial.
➤ High-End Laboratory and Analytical Instruments:
Scenarios: Internal fluidic systems of mass spectrometers, blood analyzers, PCR instruments.
Reason: Instruments are high-value; the pump's long-term stability and contamination-free transfer are core requirements. The pulse-free, long-life characteristics of Suofu magnetic gear pumps effectively protect instrument precision and reduce maintenance frequency.
➤ Semiconductor and Electronics Industry:
Scenarios: Wafer cleaning, etching solution transfer, CMP slurry circulation.
Reason: The transferred chemicals are often expensive, high-purity, and hazardous. The completely sealed, zero-leakage feature of Suofu magnetic pumps ensures safe, environmentally friendly, and waste-free transfer. Their corrosion and particulate wear resistance are also superior to diaphragm pumps.
➤ New Energy and Battery Manufacturing:
Scenarios: Slurry (high viscosity) transfer for coating machines, electrolyte addition.
Reason: Suofu gear pumps show clear advantages in high-viscosity slurry transfer, ensuring uniform, uninterrupted supply. Their wide temperature tolerance range also adapts to different process temperature requirements.
➤ Industrial Cooling and Circulation Systems:
Scenarios: Laser cooling, machine tool spindle cooling, liquid cooling for high-power electronic equipment.
Reason: The stable pressure output of Suofu magnetic gear pumps avoids pulsation impact on sensitive components. Their long life ensures continuous, reliable operation of the cooling system, preventing overheating shutdowns of main equipment due to pump failure.
When selecting a micro pump, the initial procurement cost should not be the sole decision factor. Comprehensive consideration of the equipment's total lifecycle cost, operational stability, and maintenance convenience often leads to more economically beneficial and valuable long-term choices.
With its comprehensive advantages of high pressure, stability, long life, temperature tolerance, viscosity adaptability, and zero leakage, the micro magnetic gear pump provides a more excellent and reliable solution than electric diaphragm pumps in the vast majority of demanding industrial and application scenarios. It is not only a powerful tool for solving current technical challenges but also a key component for enhancing the overall competitiveness and reliability of your equipment.
To learn detailed technical parameters, material options, and application cases for Suofu's NP series products, please visit our official website [www.suofupump.com] for more product information.
Shanghai Super Fluid Co., Ltd.
Shanghai Super Fluid Co., Ltd. (Suofu), has an R&D and sales center in Shanghai (Shanghai Suofu) and a production base in Sanming City, Fujian Province (Sanming Suofu). With its own R&D team and independent production factory, the company occupies a total area of 2000㎡, including a 1600㎡ production workshop and a 200㎡ warehouse. SUOFU is constructing a new plant covering 19 acres with a building area of 20,000 square meters. Sanming Suofu is recognized as a National High-Tech Enterprise and a Specialized, Refined, Distinctive, and Innovative (SRDI) Enterprise. Located in the Fujian Zhongguancun Science Park, the company has won the second prize in the Fujian Innovation and Entrepreneurship Competition and advanced to the national finals.
The company holds 29 patents and has participated in 25 national and provincial-level R&D projects.
Suofu Product Advantages:
Special Gear Profile Design: Proprietary gear profile design provides excellent wear resistance andnear-pure rolling gear meshing.
Special Cavity Profile Design: Adapts to operating conditions with wide-ranging outlet pressure variations, performing well under low pressure, high pressure, or short-term reversal.
Pulsation-Free Outlet Pressure: High-precision part machining and structural design ensure smooth liquid delivery.
One-Shot Injection Molded Gears: The working tooth surfaces of the gears are manufactured using high-precision one-shot injection molding without subsequent mechanical machining, ensuring gear working surface integrity.
High-Precision Ceramic Shaft: High-precision ceramic shafts offer exceptional wear resistance and rigidity, ensuring reliable pump operation under abrasive liquid and high-pressure conditions.
Capable of Long-Term Dry-Running Self-Priming: In applications requiring the pump's inlet vacuum to draw in the medium, the NP series products provide reliable performance.
Multiple Motor Options Available: Options include AC explosion-proof, AC variable frequency, single-phase/three-phase AC, DC brushed, DC brushless, DC brushless with built-in driver, and shielded DC brushless motors with built-in driver.
