A Comprehensive Comparison: Magnetic Gear Pump vs. Vane Pump Performanc

In the field of industrial fluid handling, pump selection directly impacts system reliability, operating costs, and maintenance frequency. Magnetic gear pumps and vane pumps, as two common types of positive displacement pumps, have fundamental differences in their principles, construction, and performance. This article provides an in-depth comparison of the technical characteristics of these two pump types, offering an objective and comprehensive reference for engineers and procurement decision-makers.

01 Working Principle: Sliding Friction vs. Meshing Transmission

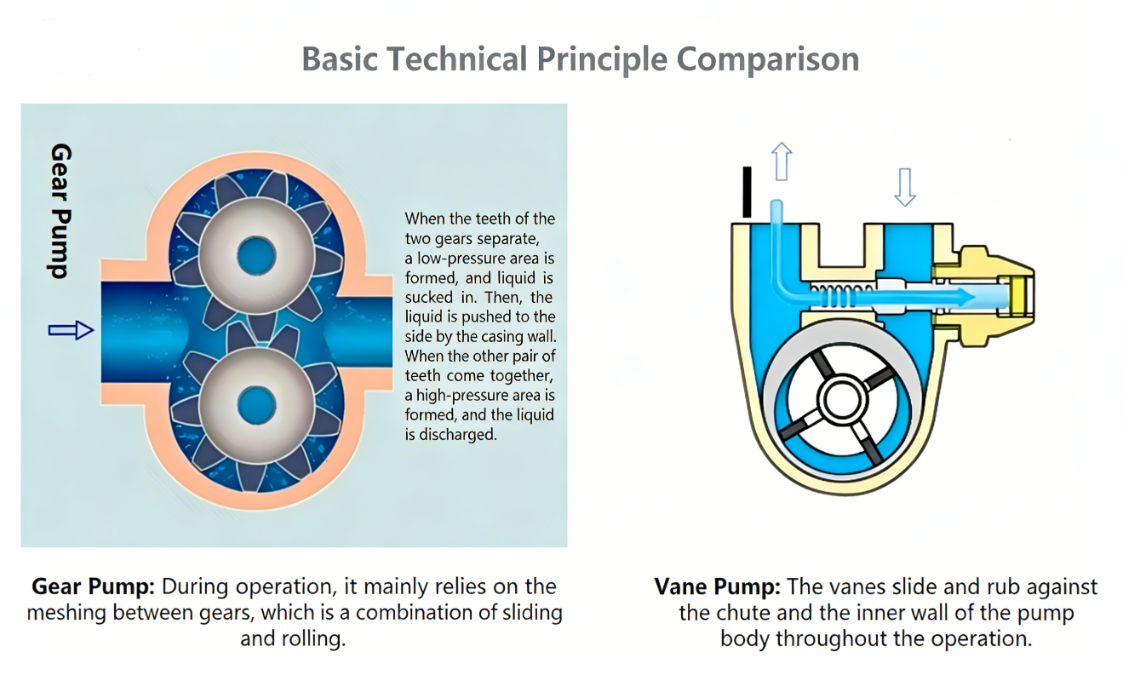

• Gear Pump: Two gears mesh and unmesh. As teeth separate, a low-pressure zone is created, drawing in fluid. The fluid is carried by the housing to the other side where the teeth mesh, creating a high-pressure zone to discharge the fluid. Friction during operation primarily involves gear tooth meshing, a combination of sliding and rolling.

• Vane Pump: Based on continuous sliding friction. A vane pump relies on vanes seated in rotor slots that extend under centrifugal force and system pressure, maintaining contact with the pump housing inner wall. The vanes experience continuous sliding friction against the pump chamber and slot walls throughout operation. Main friction areas include:

•

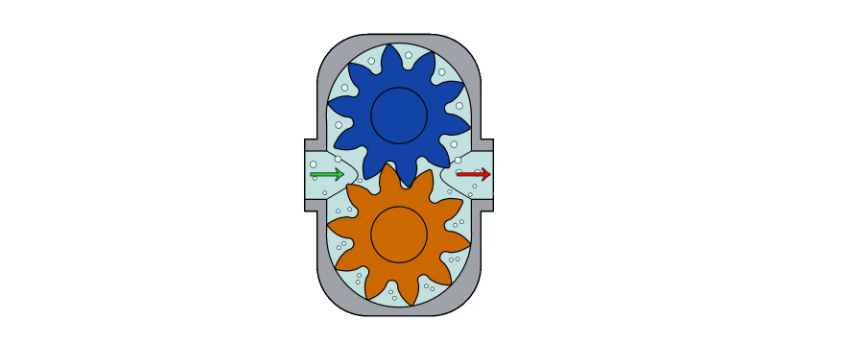

• Magnetic Gear Pump: Based on optimized gear meshing friction. A gear pump conveys media by the rotation of a pair of meshing gears​ within the pump chamber, forming sealed cavities. Friction is mainly the meshing friction between gear tooth faces, a combination of sliding and rolling. Optimizing tooth profiles and using high-performance materials can significantly reduce the coefficient of friction and minimize wear.



02 Wear Analysis and System Contamination

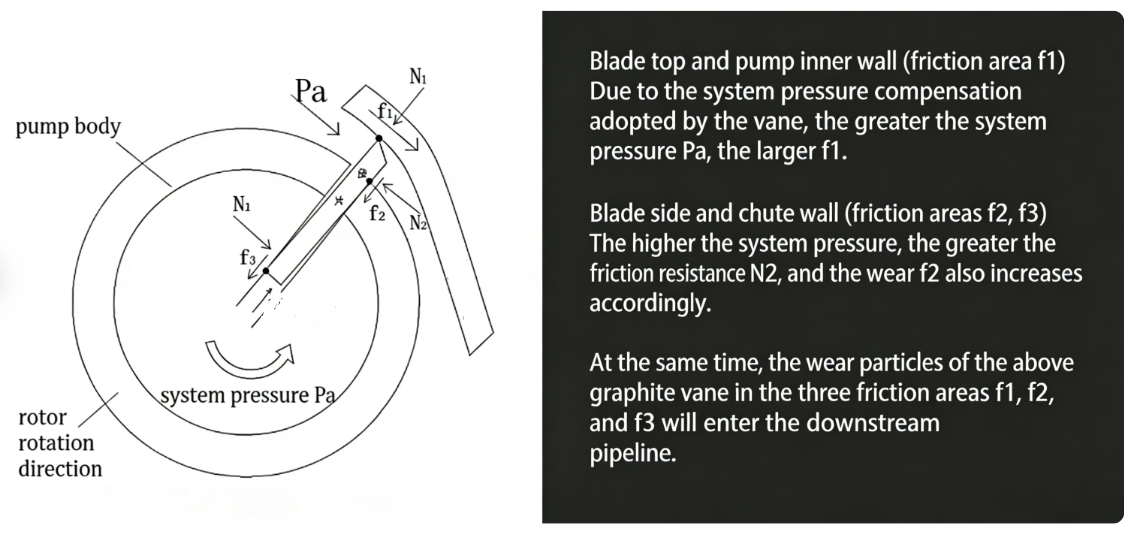

• Vane Pump: Continuous wear with byproducts prone to contaminating the system. Vanes (often made of graphite-based composite materials) undergo continuous wear in the three friction zones. The generated particles can enter downstream piping with the fluid. After long-term operation, particle deposition may affect heat exchange efficiency, clog precision valves, or contaminate the end process.

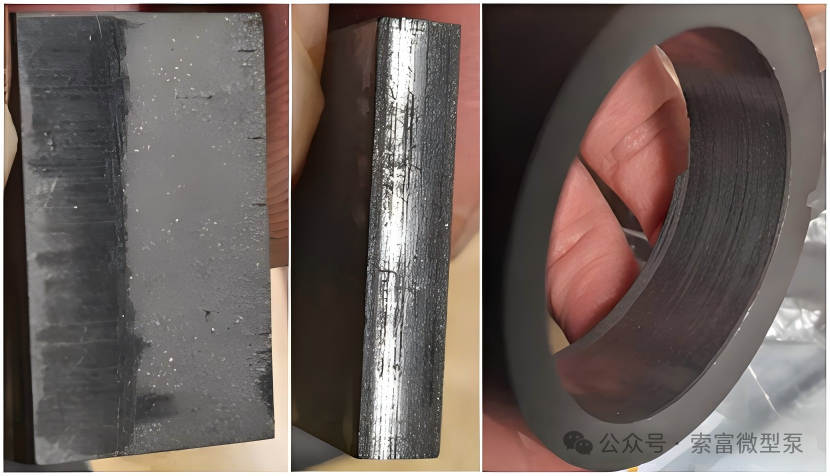

  Image shows wear on vanes and eccentric ring of an iinternational brand vane pump after 10 hours of operation in pure water at 8 bar pressure.

• Magnetic Gear Pump: Minimal wear, high system cleanliness. Taking the Suofu micro magnetic gear pump using PEEK gears and ceramic shafts as an example, its friction pairs are optimized with proprietary magnetic line designs, resulting in extremely low wear rates. The gear meshing process essentially produces no harmful particles that can enter the system, making it particularly suitable for transfer applications with high cleanliness requirements.



  Image shows wear comparison: "Clear Water" for Suofu Gear Pump vs. "Turbid Water" for a European  Vane Pump.

Therefore, gear pumps exhibit superior wear resistance compared to vane pumps. Utilizing advanced wear-resistant materials and specially designed gear profiles, Suofu gear pumps offer lower wear​ and longer life​ compared to vane pumps and similar gear pumps. Suofu gear pumps possess a proprietary low-slip gear profile patent, which significantly reduces sliding friction during operation compared to standard gear profiles. Especially versus vane pumps, the gear teeth in Suofu micro pumps do not contact the pump housing, and the sliding friction of moving parts during operation is reduced manifold.

03 Sealing Structure: Dynamic Seal Risk vs. Full Static Seal Safety

• Vane Pump: Two types: magnetic seal and mechanical seal. Magnetic seals pose no leakage risk, but mechanical seals carry potential leakage hazards. Mechanical seals are a type of dynamic seal; after long-term operation, wear and aging may lead to medium leakage. Additionally, mechanical seals typically do not allow dry running, requiring additional protective measures in system design.

• Magnetic Gear Pump: Magnetic drive enables full static sealing. Utilizing a rare-earth magnetic coupling​ to transmit torque eliminates the need for a shaft penetration structure, thereby removing dynamic sealing points. The pump housing is sealed solely by static seals like O-rings, fundamentally preventing leakage during operation and achieving true "zero leakage."

04 Temperature and Media Compatibility Comparison

Vane pumps are prone to vane expansion and jamming at high temperatures, whereas Suofu's high-performance magnetic gear pumps, leveraging material advantages, can adapt to a wider temperature range and more complex chemical media.

05 Self-Priming & Dry-Run Capability: Impact on System Reliability and Convenience

• Vane Pump: Limited self-priming ability, strictly prohibits dry running. Installation height is typically restricted (e.g., not more than 1.5 meters above liquid level). Restarting after shutdown often requires "flooding the pump," otherwise dry friction can easily occur, damaging vanes and the pump chamber. Absolutely prohibits dry running; system design must strictly prevent media evacuation.

• Magnetic Gear Pump: Strong self-priming ability, tolerates short dry runs. Optimized design can generate high vacuum, with self-priming heights up to 4.5 meters water column. Thanks to material self-lubrication and low-friction design, testing shows it can tolerate short periods of dry running without damaging core components, significantly enhancing system robustness and maintenance convenience.

06 Life and Long-Term Operating Costs

• Vane Pump: Life is limited by the wear compensation mechanism. Vanes continuously wear and thin, leading to gradual performance decline, and require periodic replacement along with seal components.

• Magnetic Gear Pump: Minimal gear wear. Life primarily depends on bearings and magnetic materials. Under reasonable operating conditions, it offers longer service life​ and lower total lifecycle maintenance costs. For example, the Suofu NP series micro magnetic gear pump is designed for pressures up to 40 bar, providing ample safety margin for reliable operation at 10 bar.

07 Comparison Summary and Selection Recommendations

Selection Recommendations:

Magnetic gear pumps, with their outstanding advantages of zero leakage, high cleanliness, wide temperature range, and dry-run tolerance, are the preferred choice for applications involving high-value media transfer, demanding operating conditions, and pursuits of long-term system reliability and low maintenance costs. In高端 fields like semiconductor, chemical, pharmaceutical, and scientific research, they have become the mainstream direction for technological upgrading.

Vane pumps are more suitable for medium-to-low pressure applications with limited budgets, stable operating conditions, compatible media, and lower cleanliness requirements.

08 Typical Application Scenarios Best Suited for Micro Magnetic Gear Pumps

Based on the comprehensive advantages of Suofu micro magnetic gear pumps in zero leakage, high cleanliness, wide temperature tolerance, and dry-run resistance, they are undoubtedly the preferred solution in the following scenarios with stringent fluid handling requirements:

1. Semiconductor & Electronics Manufacturing

   • Process Coolant Transfer: In key equipment like lithography and etching machines, coolant must be strictly contamination-free and leak-free. The full static seal structure and low-wear characteristics of magnetic gear pumps ensure long-term clean and stable cooling system operation.

   • High-Purity Chemical Transfer: Such as expensive and corrosive media like developers and cleaning agents, requiring excellent chemical compatibility and zero leakage guarantee.

2. Liquid Cooling Systems

   • Single-Phase/Two-Phase Coolant Circulation: Magnetic gear pumps can withstand long-term continuous operation and possess good self-priming and short dry-run tolerance, suitable for complex liquid cooling architectures where air ingress into cooling lines is possible.

   • Cold Plate & Immersion Cooling: Pumps need stable operation across a wide temperature range and high compatibility requirements for media like fluorinated liquids.

3. Precision Analytical Instruments & Laboratory Equipment

   • Fluid Drive Units for Chromatographs, Mass Spectrometers, etc.: Require very low pulsation and stable flow output. The meshing transmission of gear pumps inherently provides smooth flow advantage.

   • Reagent & Standard Sample Transfer: To avoid cross-contamination and media alteration, demanding higher pump cleanliness and material compatibility.

4. Pharmaceutical & Biotechnology, and Medical Devices

   • Culture Media, Buffer Solution Transfer: Require sterility and absence of exogenous particle contamination. The non-dynamic seal, low-wear characteristics of magnetic pumps comply with GMP-related norms.

   • Batching and Transfer in Pharmaceutical Processes: Demand "zero tolerance" for leakage. The magnetic drive structure can completely avoid medium leakage risk.

   • Medical Devices: Hemodialysis machines, CT scanners, pharmaceutical machinery (capsules/agents), chromatography systems, laboratory plate washers, disinfectant equipment agent dosing, etc.

5. New Energy Battery Manufacturing & Testing

   • Electrolyte Filling: Electrolyte is volatile and highly corrosive. The sealing reliability of magnetic pumps ensures operational safety and environmental cleanliness.

   • Battery Pack Cooling System Testing: Pumps need stable operation under both high and low-temperature conditions and good media compatibility.

6. Micro-addition and Metering in Chemical Processes

   • Precise Dosing of Additives, Catalysts, Agents: Gear pumps offer good metering repeatability. Combined with variable frequency control, they enable high-precision fluid metering.

   • High-Temp or Low-Temp Reaction Media Circulation: The wide temperature adaptability of magnetic pumps allows them to serve as circulation power units under extreme temperature conditions.

In these scenarios, Suofu micro magnetic gear pumps not only address the inherent bottlenecks of traditional vane pumps regarding leakage, contamination, temperature limits, and dry-run protection, but also, due to their compact structure, ease of integration, and low maintenance requirements, are better suited for modern industrial equipment and systems characterized by automation and high integration.

09 Conclusion

This article aims to provide an objective comparison based on technical principles and industry applications, serving as a reference for pump selection. With advancements in materials and magnetic drive technology, the performance boundaries of magnetic gear pumps continue to expand, offering more reliable and efficient solutions for modern industrial fluid handling.
