Have you ever wondered how small systems move liquid so precisely? It may look simple, but control is not easy. Many systems fail without stable flow.
In this article, you will learn how Small Gear Pumps work. We will explore their features, applications, and selection tips. You will also understand how to choose the right pump for your system.
A small gear pump is a compact type of positive displacement pump designed for precise fluid transfer. It moves liquid by trapping a fixed volume between rotating gears and the pump housing. Each rotation delivers a consistent amount of fluid, which makes it highly predictable in performance.
From a practical standpoint, small gear pumps are widely used in systems where accuracy and stability matter more than sheer volume. You will often find them inside cooling systems, laboratory devices, and precision dosing equipment. Because of their compact size, they can fit into tight spaces without sacrificing performance.
Key characteristics of small gear pumps include:
Fixed displacement per revolution
Each rotation moves the same volume of liquid. This allows accurate control, especially in metering or dosing systems where consistency is critical.
Compact and modular structure
Their small footprint makes integration easier. Many systems rely on this when space is limited or design flexibility is needed.
Stable and pulse-free output
Unlike some pump types, they deliver smooth and continuous flow. This is important for sensitive processes like cooling or chemical transfer.
Wide adaptability to fluids
They can handle various liquids, including oils, coolants, and chemical solutions. Some designs even support higher viscosity fluids without major performance loss.
To better understand how small gear pumps compare in terms of scale and usage, the table below shows typical ranges and applications:
| Parameter | Typical Range / Feature | Common Use Case |
|---|---|---|
| Flow Rate | 1 ml/min – 65,000 ml/min | Cooling, dosing, circulation |
| Pressure | Up to 20 bar (custom higher) | Industrial transfer, pressurization |
| Pump Size | Compact (mini to medium) | Embedded systems, lab equipment |
| Fluid Type | Low to high viscosity liquids | Oils, chemicals, coolants |

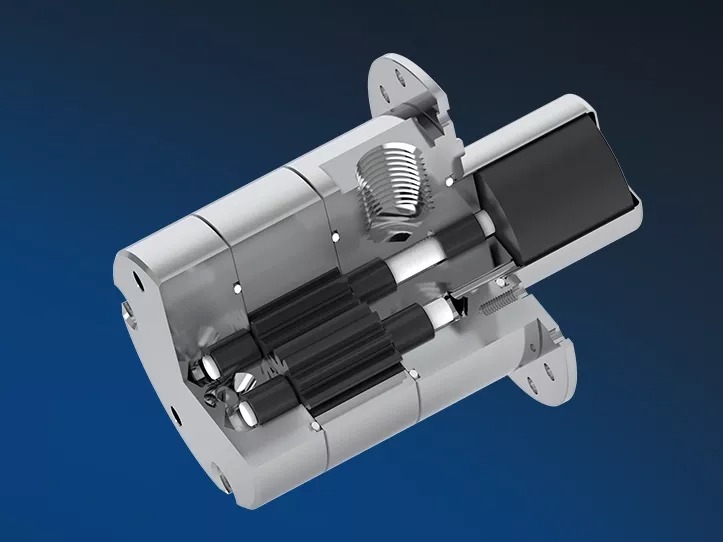

The working principle of small gear pumps is simple, yet highly effective. Inside the pump, two gears rotate in opposite directions. As they turn, fluid gets trapped in the spaces between the gear teeth and the casing. It is then carried from the inlet side to the outlet side.
Let’s break it down into a clearer process:
Step 1: Fluid enters the inlet
As the gears rotate, a vacuum forms at the inlet. This pressure difference pulls fluid into the pump chamber.
Step 2: Fluid is trapped between gear teeth
The liquid fills the cavities created by the rotating gears. It stays contained as the gears continue turning.
Step 3: Fluid is transported around the casing
Instead of passing between the gears, the fluid moves along the outer edges. This prevents backflow and maintains efficiency.
Step 4: Fluid is pushed out at the outlet
As the gears mesh again, the trapped volume is forced out. This creates a continuous discharge flow.
One important aspect is the relationship between speed (RPM) and flow rate. The faster the gears rotate, the more fluid is delivered per unit of time. Since the displacement per revolution is fixed, flow can be controlled simply by adjusting the motor speed.
| RPM (Speed) | Flow Behavior | Practical Meaning |
|---|---|---|
| Low RPM | Lower flow output | Suitable for precision dosing |
| Medium RPM | Balanced flow and pressure | General circulation systems |
| High RPM | Higher flow output | Fast transfer applications |
Another reason why small gear pumps are preferred is their continuous and pulse-free flow. Because fluid is moved in small, consistent volumes, the output remains smooth. This is especially useful in applications like liquid cooling or chemical processing, where fluctuations can affect system performance.
Small Gear Pumps are known for their ability to deliver accurate and repeatable flow. They rely on a fixed displacement principle. Each rotation moves the same volume. Because of this, we can control flow simply by adjusting speed. It feels predictable, which is exactly what many systems need.
In real use, this precision becomes critical in applications like dosing or sampling. Even a small deviation can affect system performance. That’s why engineers often choose small gear pumps for controlled processes.
| Feature | Benefit | Application Example |
|---|---|---|
| Fixed displacement | Accurate flow control | Precision dosing systems |
| Low pulsation | Smooth output | Cooling loops, lab devices |
| Speed-based control | Easy adjustment of flow | Automated fluid systems |
One of the biggest advantages of Small Gear Pumps is their compact structure. They are designed to fit into limited spaces. This matters in modern equipment, where integration becomes more complex and space is always restricted.
Instead of building large systems, engineers now prefer smaller components. These pumps support that trend. They can be installed in tight areas without affecting performance.
Small footprint for integration
It allows designers to place pumps inside compact assemblies. This is common in portable or embedded systems.
Flexible installation options
They can be mounted in different orientations. It gives more freedom during system design.
Lightweight structure
It reduces overall system weight. This is useful in mobile or handheld equipment.
Typical scenarios where compact gear pumps perform well include:
Laboratory instruments where space is limited but accuracy is required
Liquid cooling systems in electronics or battery modules
Portable devices needing reliable fluid circulation
Small Gear Pumps are not limited to one type of liquid. They can handle a wide range of fluids, from low viscosity liquids like water to thicker oils and chemical solutions. This flexibility makes them useful across many industries.
Fluid compatibility depends on both design and material selection. Engineers need to consider viscosity, temperature, and chemical properties before choosing a pump.
Handling different viscosity levels
These pumps perform well across a broad range. They maintain stable flow even when fluid thickness changes.
Compatible with multiple fluid types
They can transfer oils, coolants, chemicals, and specialty liquids. This reduces the need for multiple pump types.
Material selection for corrosion resistance
Materials like stainless steel or engineered plastics help resist chemical damage. It improves durability in harsh environments.
Durability is a key factor when choosing Small Gear Pumps. Systems often run continuously. So reliability directly affects maintenance cost and downtime. A well-designed gear pump can operate for thousands of hours without major issues.
The internal structure plays an important role here. Gear quality, shaft materials, and sealing design all influence lifespan.
Wear-resistant gear design
High-quality gears reduce friction and wear. It keeps performance stable over long periods.
Long service life
Many small gear pumps are designed for extended operation. This reduces replacement frequency.
Self-priming capability
They can start without pre-filling. This simplifies operation and reduces setup time.
Dry-running tolerance (limited)
Some designs can handle short dry runs. It protects the pump during unexpected conditions.
When selecting Small Gear Pumps, the first thing we usually check is flow rate and pressure. These two parameters directly affect performance. If they are mismatched, the system may become unstable or inefficient.
Flow rate is typically measured in L/min or ml/min. It depends on how much liquid your system needs over time. Instead of guessing, we calculate it based on actual usage.
How to estimate flow rate
Start from system demand. For example, a cooling loop needs a certain volume per minute to maintain temperature. We calculate total volume, then divide it over time. This gives a realistic flow target.
Understanding pressure requirements
Pressure is not only about the pump. It includes pipe resistance, valves, filters, and elevation differences. If resistance increases, the pump must work harder to maintain flow.
Matching pump performance to system needs
We always look at the pump curve. It shows how flow and pressure interact. A good match ensures stable operation without overload.
Fluid characteristics play a huge role in pump selection. Even if flow and pressure look correct, wrong fluid matching can cause failure. So we always analyze the liquid before choosing a pump.
Viscosity is one of the most important factors. It affects how easily the fluid moves inside the pump.
Low viscosity fluids
They flow easily but may cause leakage inside the pump. We need tighter tolerances to maintain efficiency.
High viscosity fluids
They require more torque. The pump must be strong enough to move thicker liquids without overheating.
Chemical compatibility
Some fluids can corrode internal parts. That’s why material selection matters. Stainless steel, ceramics, or special coatings are often used.
Temperature considerations
Fluid temperature changes viscosity. It also affects seals and materials. A pump must handle both low and high temperature ranges safely.
Sealing is a critical part of Small Gear Pumps. It determines whether the system stays clean, safe, and efficient. In many industries, even small leakage can cause serious problems.
There are two main sealing methods used in gear pumps:
Mechanical seal
It uses contact surfaces to prevent leakage. It works well in many systems but may wear over time. Maintenance is usually required.
Magnetic drive seal
It eliminates direct contact between motor and pump chamber. Power transfers through magnetic coupling. This creates a zero-leakage structure.
However, each method has its own use case. Mechanical seals may still be suitable for simpler systems.
Choosing the right Small Gear Pump is not only about performance. Installation and integration also matter. A pump must fit into the system smoothly. Otherwise, even a good pump may not work properly.
We usually consider several factors during installation:
Space constraints
Many systems have limited room. Compact pump design helps solve this. It allows flexible placement inside equipment.
Mounting options
Pumps can be installed horizontally or vertically. The design should match system layout.
Motor types
Different motors provide different control levels:
DC motors for simple and compact systems
AC motors for stable industrial operation
Servo or stepper motors for precise speed control
Customization needs
Some systems require special connections or structures. OEM/ODM solutions help adapt the pump to specific requirements.
Suofu provides flexible motor configurations and customization support. This makes it easier for engineers to integrate pumps into complex systems without redesigning the entire setup.
Small Gear Pumps are widely used in systems where precision and consistency are critical. They deliver smooth, controlled flow. This makes them suitable for environments where even small fluctuations can affect performance. In practice, they are often integrated into compact systems that require reliable fluid transfer over long periods.
In liquid cooling systems, they circulate coolant continuously. This helps maintain stable temperatures in electronics, battery modules, and industrial equipment. Because the flow remains steady, it reduces thermal stress and improves efficiency. In precision metering and dosing, they ensure accurate delivery of liquids. This is especially important in laboratory testing and chemical processes.
Typical application scenarios include:
Liquid cooling systems
They maintain consistent coolant flow. This supports temperature control in high-performance equipment.
Precision metering and dosing
They deliver exact volumes over time. This improves accuracy in chemical or laboratory applications.
Lubrication and circulation systems
They ensure continuous fluid movement. This reduces wear and extends equipment life.
Medical, laboratory, and semiconductor equipment
They support stable and clean fluid handling. This is essential in sensitive environments.
Companies like Suofu design Small Gear Pumps specifically for these scenarios. They focus on compact size and stable output, which makes integration easier across different systems.
Different industries use Small Gear Pumps in unique ways. The core function remains the same, but the operating conditions and requirements can vary significantly. Understanding these differences helps in selecting the right pump.
In new energy systems, such as battery packs or fuel cells, thermal management is a key concern. These pumps circulate coolant through narrow channels. It helps maintain safe and efficient operating temperatures. Stability is essential, because temperature fluctuations can affect performance.
In chemical and industrial processing, pumps must handle a variety of fluids. These may include corrosive chemicals or viscous liquids. The pump design must ensure compatibility and consistent flow under changing conditions.
Common industry-specific uses include:
New energy systems
Used for battery cooling and fuel cell circulation. It helps maintain stable thermal conditions.
Chemical and industrial processing
Handles oils, chemicals, and specialty fluids. It requires strong material compatibility.
Food and pharmaceutical applications
Supports precise and hygienic fluid transfer. It ensures product quality and process safety.
Suofu’s pump designs emphasize precision and leak-free operation. This makes them suitable for industries where reliability and safety are critical.
Maintaining Small Gear Pumps properly is essential for long-term performance. Even though they are designed for durability, poor operation can still lead to wear or failure. Regular attention helps prevent unexpected downtime.
One key factor is avoiding dry running. When no fluid is present, internal components experience higher friction. This can damage gears and reduce efficiency. Cavitation is another issue to watch. It occurs when vapor bubbles form and collapse, which can harm internal surfaces.
To keep the pump running smoothly, consider the following practices:
Avoid dry running and cavitation
Always ensure proper fluid supply. This protects internal components from damage.
Inspect wear parts regularly
Check gears, shafts, and seals. Early detection helps prevent major failures.
Maintain cleanliness
Remove residue or contaminants. This ensures smooth fluid movement and prevents blockage.
Store the pump properly when not in use
Protect it from moisture and contamination. This helps extend service life.
In many designs, including those from Suofu, wear-resistant materials are used to improve durability. However, good maintenance habits still play a major role. They help maintain performance and reduce long-term operating costs.
Small Gear Pumps play an important role in modern fluid systems. They offer stable flow, compact size, and reliable performance across many applications.Suofu focuses on micro magnetic gear pumps and customized flow solutions. Its products provide precise control, leak-free design, and strong adaptability to different applications. By combining engineering experience and flexible services, Suofu helps users achieve more stable and efficient fluid handling in demanding environments.
A: Small Gear Pumps are used for cooling, dosing, and fluid transfer systems.
A: Small Gear Pumps use fixed displacement, so flow changes with motor speed.
A: Small Gear Pumps provide stable, pulse-free flow for accurate dosing tasks.
A: Yes, Small Gear Pumps handle oils, chemicals, and low to high viscosity liquids.
A: Proper use, correct fluid choice, and maintenance extend Small Gear Pumps lifespan.
