Precision Micro Gear Pump & 0-55.0L/Min

NP98 0~55L/min Micro Magnetic Gear Pump Selection Guide

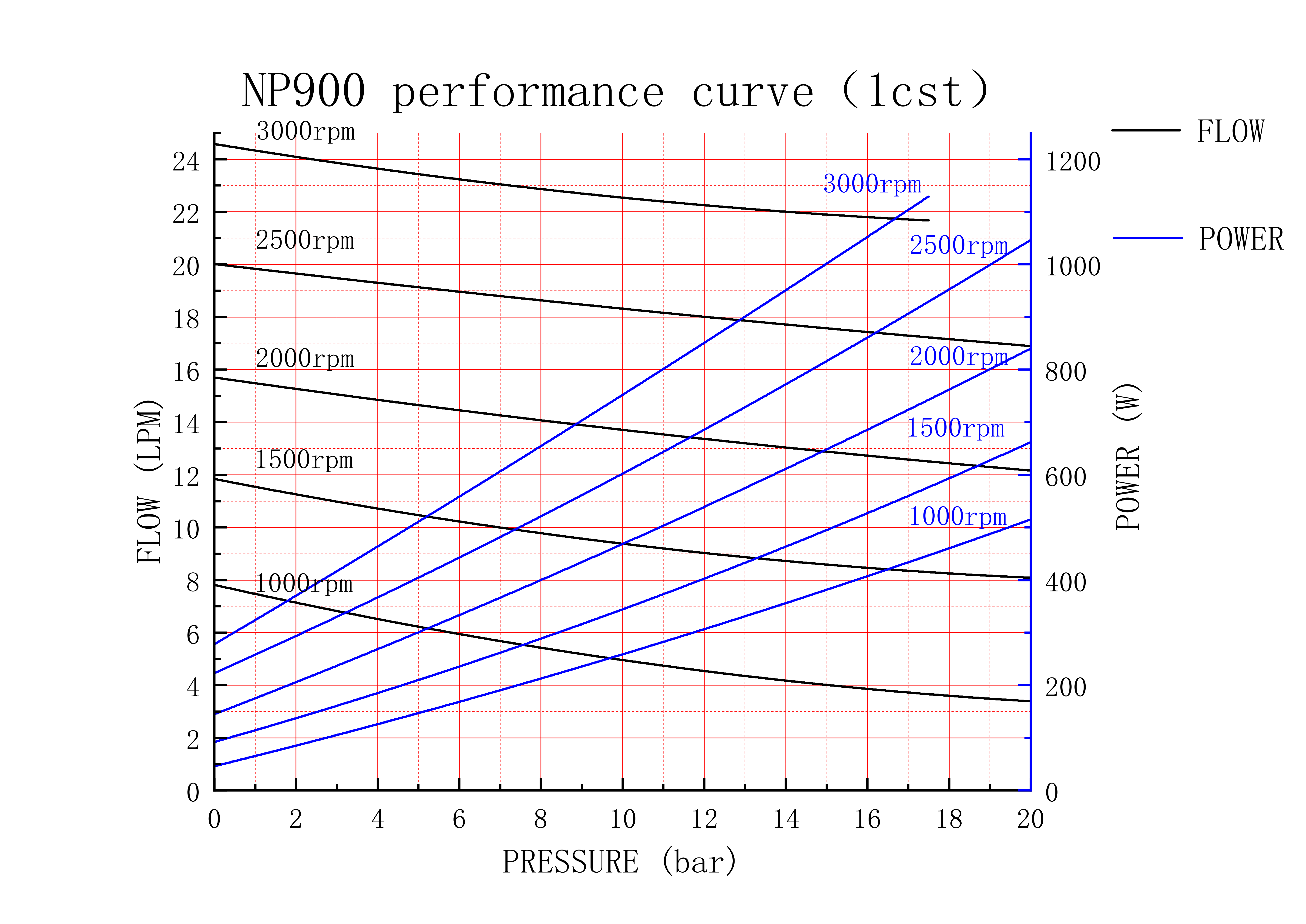

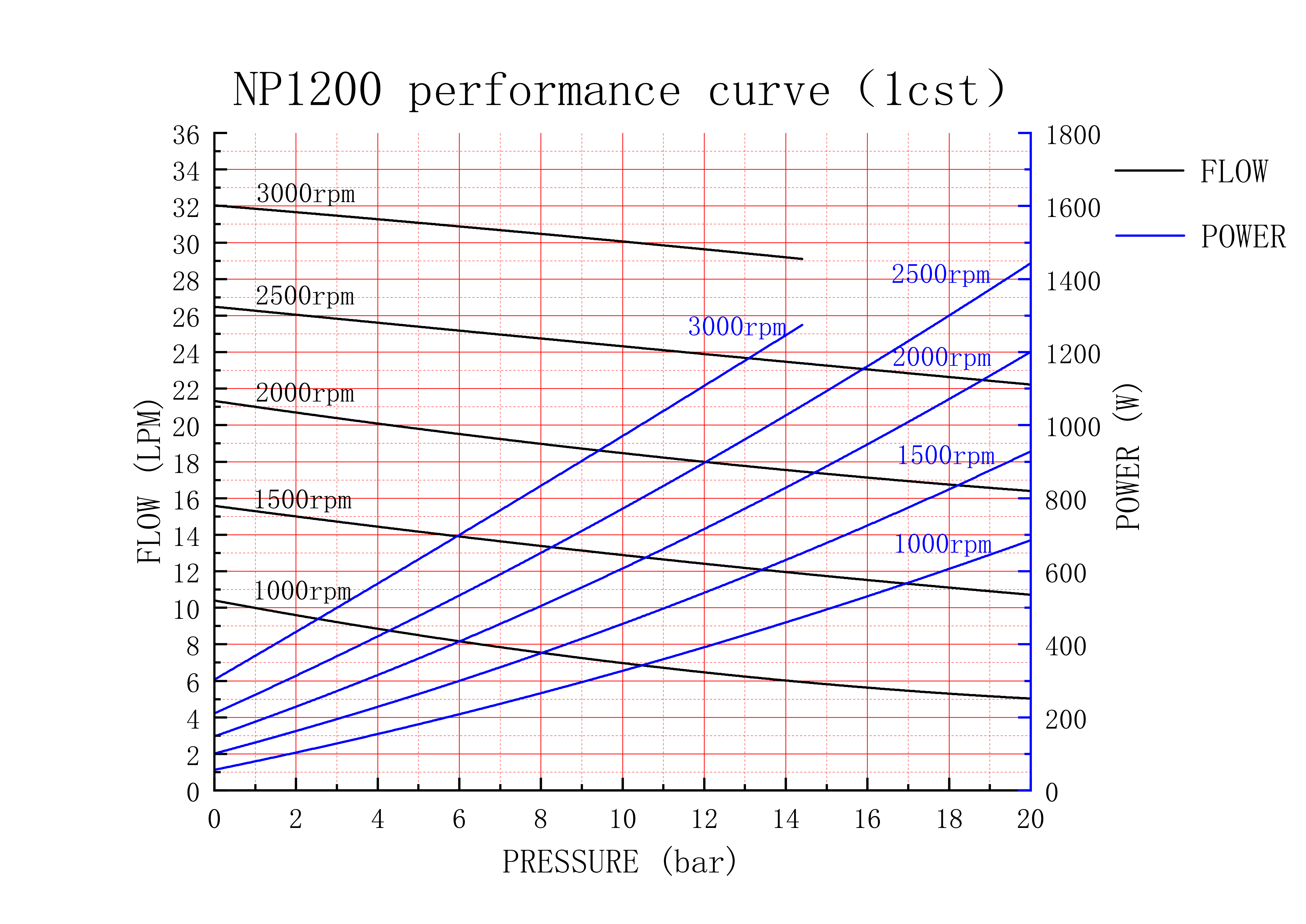

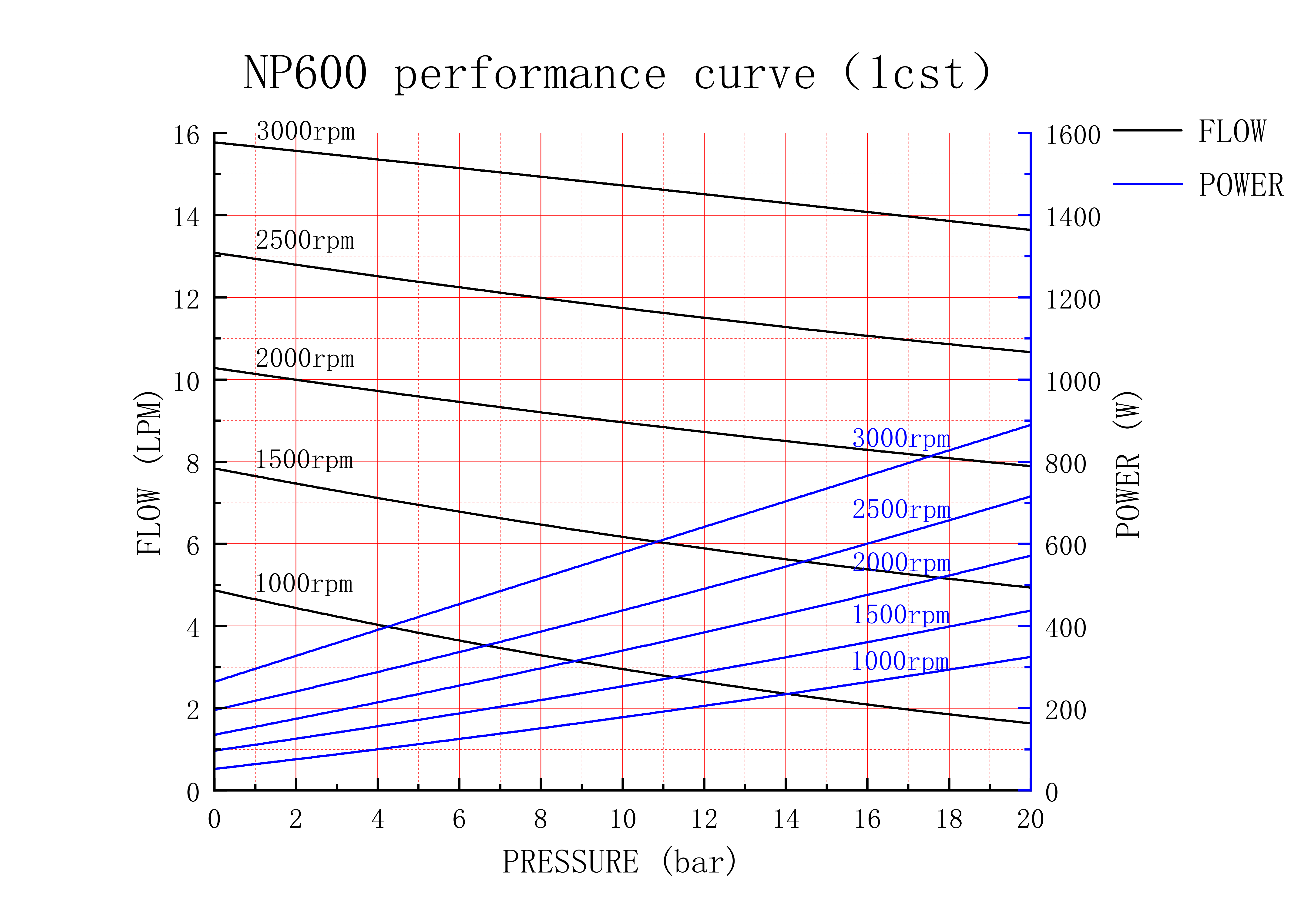

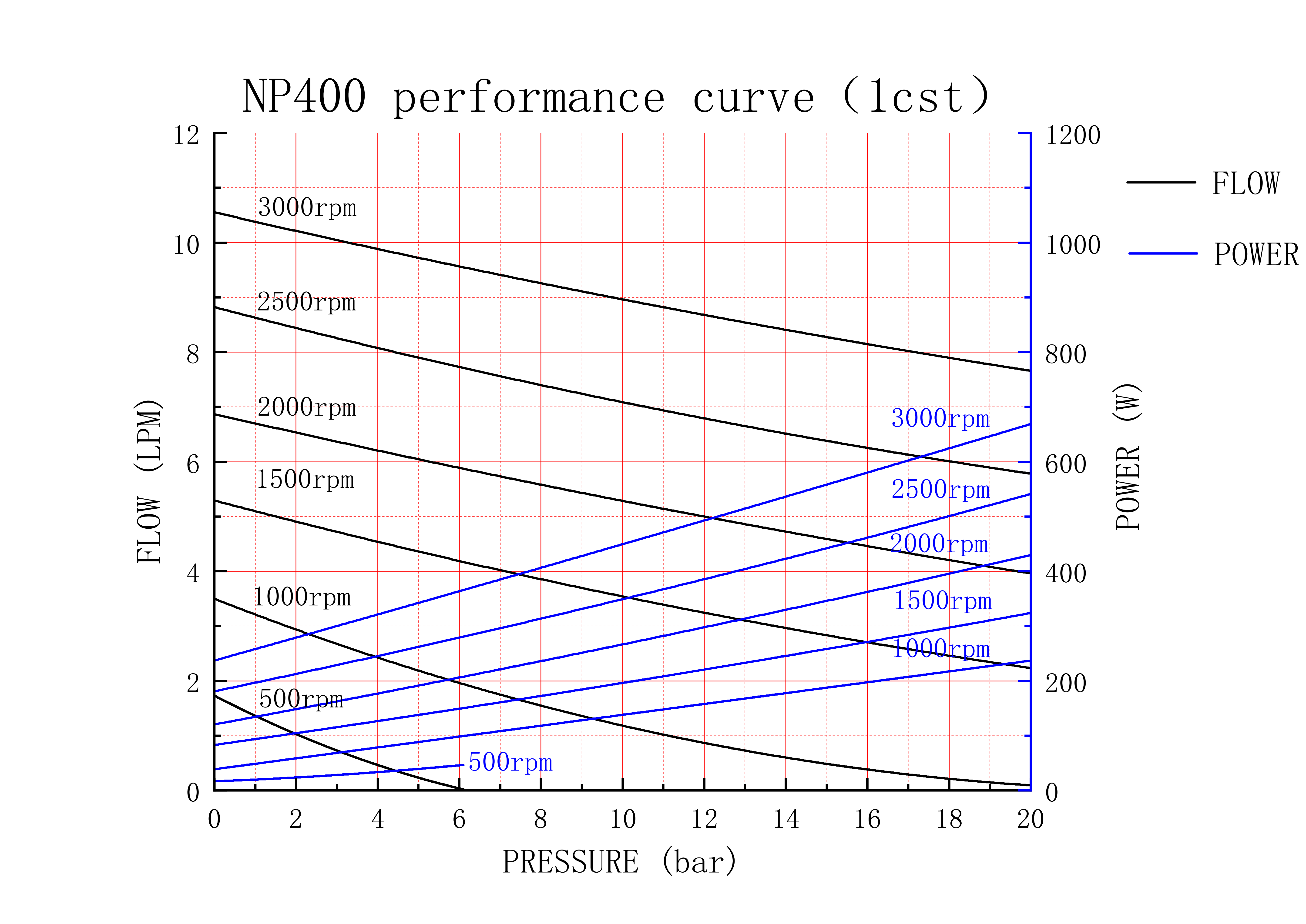

Choose the NP98 micro magnetic gear pump mainly according to the required flow rate. NP400 is suitable for lower-flow applications up to 12.6 L/min, while NP600 and NP900 cover medium-flow requirements up to 18.9 and 28 L/min. For higher-flow systems, NP1200 delivers up to 38 L/min and NP1700 up to 55 L/min. Final selection should also consider fluid viscosity, differential pressure, temperature, motor speed and operating conditions.

Contact Suofu with your fluid information for material compatibility confirmation.

Brushless DC Motor: 12V-48V voltage; 40W-2000W power; 100-3500 rpm speed; 0-5V/PWM/manual knob speed control; built-in/external driver

AC Motor: Standard IEC/NEMA motor; VFD/Ex-VFD/fixed frequency options

Servo Motor: Compatible with various brand servo motors

Proprietary Gear Profile Design: Minimizes gear wear and extends service life, ensuring stable performance even in high-speed operations (up to 4000 rpm).

Pulsation-Free Fluid Delivery: Precision-machined components and unique cavity design eliminate pressure fluctuations, protecting sensitive equipment like IGBT testing systems.

High-Grade Materials: Pump body options include SS316 Stainless Steel, Hastelloy, and PEEK for corrosion resistance; high-precision zirconia ceramic shaft offers exceptional rigidity, suitable for abrasive liquids.

Rare Earth Magnetic Drive: The magnetic drive system ensures leak-free operation, critical for hazardous media in chemical and pharmaceutical industries.

Extreme Environment Adaptability: Withstands deep-sea pressure (4000 meters) and wide temperature ranges (-120℃~150℃), ideal for offshore wind power and deep-sea exploration projects.

Long Service Life: Over 20,000 hours of operation in clean media reduces maintenance costs and downtime for industrial production lines.

The NP 98 Series 0~55L/min Micro Magnetic Gear Pump excels in demanding industries where reliability and precision are non-negotiable:

Lithium Battery Production: Transfers electrolyte and cooling fluids with zero contamination, supporting high-volume cell manufacturing.

Fuel Cells & Supercharging Stations: Delivers hydrogen fuel and cooling agents efficiently, ensuring stable power output for electric vehicles.

Offshore Wind Power & Deep-Sea Operations: Resists saltwater corrosion and high pressure, powering fluid systems in offshore platforms and subsea equipment.

Medical & Laboratory Equipment: Provides sterile fluid transfer for diagnostic devices and pharmaceutical production, complying with strict hygiene standards.

Diesel Exhaust Aftertreatment: Injects urea solution accurately to reduce emissions, meeting global environmental regulations.

For more information (motors/others), please click→ here.

Filter Requirement: Install a 400-mesh (25μm) or finer filter at the pump inlet (or outlet for closed-loop systems). Ensure the filter's rated flow is at least 1.5 times the pump's rated flow to avoid pipeline resistance.

Dry Running Caution: Dry running is not recommended—prolonged dry operation at high speeds will cause permanent damage to PEEK gears and ceramic shafts. Always ensure the pump chamber is filled or wetted before use.

Pipeline Installation: Align pipelines with the pump's inlet/outlet to avoid eccentric torque. Use pipeline supports to prevent the pump body from bearing pipe weight, which may cause leakage or structural damage.

FAQ-0~55L/min Micro Magnetic Gear Pump

What is the maximum flow rate of the NP98 Series?

The NP98 Series provides flow rates from 0 to 55 L/min, depending on the selected model and operating conditions.

How do I choose between NP400, NP600, NP900, NP1200 and NP1700?

Select the model mainly according to the required flow rate. NP400 and NP600 suit lower to medium flow, while NP900, NP1200 and NP1700 are designed for higher-flow applications.

Can the NP98 Series handle high-viscosity liquids?

Yes. The pump can handle high-viscosity fluids under suitable operating conditions. Final performance depends on viscosity, pressure, temperature and motor speed.

What materials are available for the pump?

Pump body options include SS316, Hastelloy and PEEK, while seal options include FKM, EPDM, PTFE and FFKM. Material selection should be based on the transferred fluid and temperature.

Can the NP98 Series be used for chemical liquids?

Yes. With suitable wetted materials and seals, the NP98 Series can be configured for various chemical transfer and circulation applications.

Can the pump be customized for high-pressure applications?

Yes. Customized pressure configurations are available. Please provide your required flow rate, system pressure and operating medium for evaluation.

What information is needed for pump selection?

Please provide the required flow rate, fluid type, viscosity, temperature, inlet and outlet pressure, motor voltage and operating mode.

Need Help Selecting the Right NP98 Gear Pump?

Tell us your required flow rate, fluid type, viscosity, temperature, pressure and motor requirements. Suofu will recommend the suitable NP400, NP600, NP900, NP1200 or NP1700 configuration for your application.
