Have you ever chosen a pump that did not perform as expected? It may have worked at first, but problems appeared later. This happens more often than many people think.
In this article, we will explore how to choose the right micro gear pump step by step. You will learn what really matters, how to avoid common mistakes, and how to select a pump that fits your application properly.

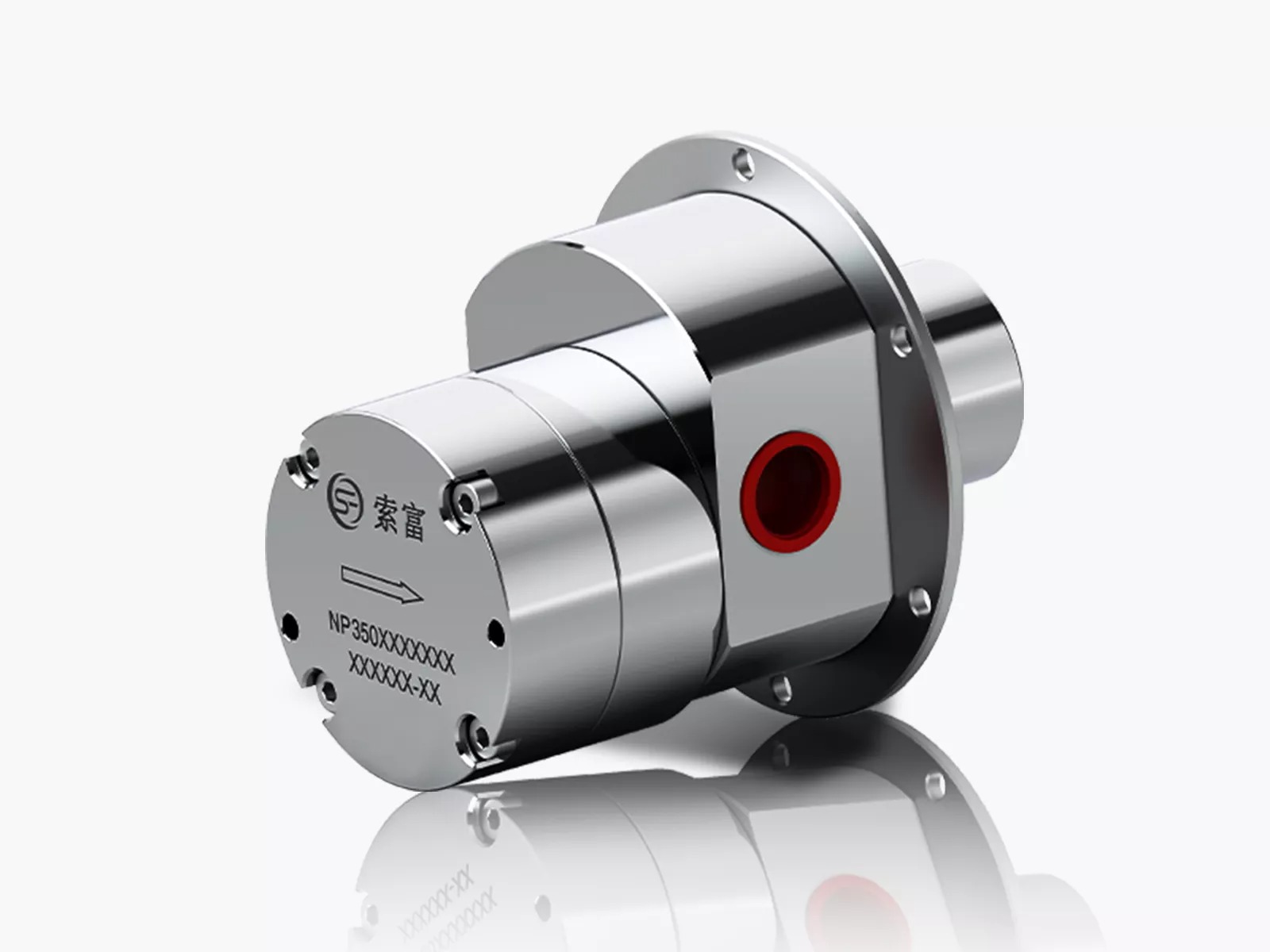

A micro gear pump is a compact positive displacement pump designed for precise fluid transfer. It works by using two meshing gears that rotate inside a tightly sealed chamber. As the gears turn, they trap fluid between the gear teeth and the housing, then move it from the inlet to the outlet in a continuous motion. It is simple in structure, yet highly effective for stable flow delivery.
Instead of pushing fluid randomly, it follows a volumetric displacement principle. Each rotation moves a fixed volume of liquid, so the output becomes predictable and repeatable. That is why it is widely used in applications where accuracy matters. It does not rely on pressure to generate flow; rather, pressure is a result of system resistance.
How the process works step-by-step:
Fluid enters the pump chamber as gears begin rotating
It gets trapped between gear teeth and pump casing
The rotating gears carry fluid toward the outlet side
The meshing gears push the fluid out under pressure
This mechanism allows the micro gear pump to deliver continuous, pulse-free flow, which is critical in systems requiring smooth operation.
Micro gear pumps are designed for situations where both size and precision matter. They are compact enough to fit into tight systems, yet powerful enough to deliver accurate flow control. Because of their mechanical design, they produce low pulsation output, which is essential for sensitive processes.
They are often chosen for systems where fluid delivery must be steady, predictable, and repeatable. This makes them suitable for industries such as medical equipment, liquid cooling systems, and precision industrial processes.
Key characteristics you should know:
Compact structure
They are small in size, which allows easy integration into limited spaces. This is useful for portable devices or dense system layouts. It also reduces installation complexity in modern equipment.
High precision flow control
Each rotation delivers a fixed volume of liquid. That makes them ideal for dosing, metering, and sampling applications. Systems that require repeatability benefit greatly from this feature.
Low pulsation and smooth output
Unlike some other pump types, they provide a nearly constant flow. This helps avoid pressure spikes and improves system stability. It also protects sensitive components downstream.
Wide application adaptability
They can handle different fluids and working conditions. From low-viscosity liquids to more demanding media, they offer flexibility when properly selected.
When people choose a micro gear pump, they often start with flow rate. But in real use, it is not just about how much liquid moves. It is about how accurately and consistently it moves every time. If flow is unstable, the system may lose control quickly.
A good micro gear pump should match your required flow range closely. Too large, it loses precision. Too small, it struggles under load. So we always look at the working range, not just the maximum value.
What matters most in flow selection:
Matching the real application range
We should choose a pump operating in its optimal zone. That keeps performance stable. It also reduces wear over time.
Stable output during operation
A steady flow helps avoid pressure spikes. It protects valves and downstream equipment. This becomes critical in cooling or dosing systems.
Repeatable performance per cycle
They rely on fixed displacement per rotation. That makes flow predictable. Companies like Suofu design for pulse-free delivery to improve this consistency.
Pressure is often misunderstood. Many users only check maximum ratings. But a micro gear pump responds to system resistance, not the other way around. So pressure must match the real system, not just the pump spec sheet.
We usually separate two ideas:
Differential pressure
It is the pressure difference between inlet and outlet. This directly affects pump load. If it gets too high, internal wear increases fast.
System pressure
It includes pipes, valves, filters, and all resistance. This is the real working condition. It is often higher than expected.
If pressure is underestimated, the pump may still run. But flow drops. Efficiency goes down. Parts wear faster. That leads to failure earlier than expected.
Before selecting, check these:
Normal operating pressure in the system
Peak pressure during startup or blockage
Safety margin for long-term stability
Manufacturers like Suofu offer multiple pressure configurations. This helps users balance flow and pressure without forcing compromises.
Temperature and viscosity always work together. When temperature changes, fluid thickness changes too. This directly affects how a micro gear pump performs.
At low temperatures, fluids become thicker. That increases resistance. The pump works harder. At high temperatures, fluids become thinner. That may reduce sealing efficiency and cause internal leakage.
So we never look at viscosity alone. We always consider it under actual working temperature.
Important factors to evaluate:
Operating temperature range
The pump must handle both extremes. This ensures stable performance in all conditions.
Viscosity under real conditions
Fluid behavior changes with temperature. So lab values may not match real use.
Effect on efficiency and wear
High viscosity increases load. Low viscosity reduces lubrication. Both impact service life.
| Condition | Low Temperature Effect | High Temperature Effect |
|---|---|---|
| Fluid Behavior | Thick, harder to move | Thin, easier but less stable |
| Pump Load | Increases | Decreases but may cause leakage |
| Efficiency | Drops due to resistance | May drop due to internal slip |
Many systems today need wide operating ranges. That is why companies like Suofu design pumps to handle broad temperature and viscosity conditions.
Leakage is not just a small issue. In many systems, it becomes a major risk. It can contaminate fluids. It can damage equipment. It can even cause safety problems. That is why sealing structure matters a lot when choosing a micro gear pump.
Traditional pumps often use mechanical seals. They work, but they wear over time. Once wear increases, leakage risk rises. Maintenance becomes frequent.
Magnetic drive design changes this situation. It removes direct shaft contact. So there is no dynamic seal to wear out. This greatly reduces leakage risk.
Why leak control is important:
Keeps fluids clean and uncontaminated
Improves safety in sensitive systems
Reduces maintenance frequency
Supports long-term stable operation
Advantages of magnetic drive structure:
No direct shaft sealing, fewer wear points
Lower chance of leakage over long use
Better for high-purity or hazardous fluids
When selecting a micro gear pump, material compatibility is one of the first things we should check. Not all fluids behave the same. Some are corrosive. Some are reactive. Others may be sensitive to contamination. If the pump material does not match the fluid, performance will drop quickly.
A pump may work well at first. But over time, incompatible materials can lead to corrosion, swelling, or even internal damage. This not only affects efficiency, but also increases the risk of leakage or system failure.
Key points to consider when matching materials:
Chemical compatibility
The material must resist reaction with the fluid. If not, it may degrade or contaminate the liquid. This is especially important in medical or chemical systems.
Corrosion resistance
Some fluids attack metals or plastics over time. Choosing corrosion-resistant materials helps extend pump life. It also reduces maintenance frequency.
Fluid purity requirements
In sensitive applications, material selection affects cleanliness. It must not release particles or react with the media.
| Fluid Type | Recommended Material Focus | Risk if Mismatched |
|---|---|---|
| Corrosive liquids | Corrosion-resistant alloys or PEEK | Material degradation |
| High-purity fluids | Chemically stable, non-reactive | Contamination |
| Industrial fluids | Durable metals or composites | Reduced service life |
Durability plays a big role in how long a micro gear pump can operate without failure. Inside the pump, gears rotate continuously under load. If materials are not wear-resistant, performance will decline quickly.
The design of the gears and internal components directly affects service life. High-quality pumps use optimized gear profiles and strong materials to reduce friction and wear. This helps maintain accuracy over time.
Important durability factors:
Gear design quality
Precision-machined gears reduce internal friction. They improve efficiency and extend lifespan.
Shaft material strength
Materials like ceramic shafts provide high rigidity. They resist wear better than standard metal shafts. This improves stability under continuous operation.
Internal component durability
Strong materials reduce deformation and wear. This keeps flow stable even after long use.
A longer service life does not just improve reliability. It also reduces maintenance cost and downtime. That is why many users prefer pumps designed for extended operation.
In many applications, a micro gear pump runs for long periods without stopping. This is common in cooling systems, industrial processes, and automated equipment. So reliability over time becomes a key factor.
Continuous operation puts stress on every component. Temperature changes, pressure variation, and fluid properties all affect performance. If the pump cannot handle these conditions, stability will decrease.
Factors affecting long-term reliability:
Thermal stability
Materials must perform well across temperature changes. This prevents deformation and efficiency loss.
Mechanical stability
Components must maintain alignment during operation. Poor alignment leads to wear and noise.
Fluid consistency
Changes in viscosity or composition can affect performance. The pump must handle these variations smoothly.
| Reliability Factor | Effect on Pump Operation | Result if Ignored |
|---|---|---|
| Temperature stability | Maintains consistent performance | Reduced efficiency |
| Mechanical strength | Prevents wear and misalignment | Increased failure risk |
| Fluid adaptability | Ensures smooth operation | Flow instability |
Consistent performance is especially important in industrial systems. If flow fluctuates, the entire process may be affected. That is why reliability is not just about durability, but also about maintaining stable output over time.
When choosing a micro gear pump, we should not look at the pump alone. The motor and drive system matter just as much. They directly affect how the pump performs in real conditions. If they are not matched well, even a high-quality pump may not work properly.
Different applications require different drive types. Some need simple constant flow. Others require precise speed control. So selecting the right motor becomes essential for system performance.
Common motor and drive options:
DC motors
They are easy to control and widely used in compact systems. Speed adjustment is simple. This makes them suitable for variable flow applications.
AC motors
They offer stable operation for continuous use. They are often used in industrial systems where long runtime is required.
Integrated drive solutions
These combine pump and control into one unit. They simplify installation. They also improve control accuracy and reduce wiring complexity.
| Motor Type | Best Use Case | Advantage |
|---|---|---|
| DC Motor | Variable flow systems | Easy speed control |
| AC Motor | Continuous industrial operation | Stable and reliable |
| Integrated Drive | Compact and automated systems | Simplified integration |
In many systems, space is limited. That is why the compact design of a micro gear pump becomes a key advantage. It allows easier integration into tight layouts. It also reduces overall system size.
But installation is not just about size. It also involves mounting direction, connection type, and system layout. A pump must fit naturally into the design without forcing major changes.
Key installation considerations:
Compact structure
Small size helps in tight environments. It is ideal for portable or integrated equipment.
Mounting flexibility
Pumps should support different orientations. This allows easier placement in complex systems.
Connection compatibility
Inlet and outlet design must match the pipeline. This avoids unnecessary adapters or redesign.
A well-designed pump reduces installation time. It also improves system efficiency by minimizing flow resistance and layout complexity.
In many cases, standard pumps are not enough. Systems often have unique requirements. These may include specific flow ranges, special fluids, or limited installation space. That is when customization becomes important.
A micro gear pump should be able to adapt to the system, not the other way around. This is especially true in industrial, medical, or new energy applications.
When customization is needed:
The required flow does not match standard models
The fluid has special chemical properties
The installation space is limited or complex
The system needs integrated control or special interfaces
Benefits of OEM/ODM solutions:
Better system compatibility
Improved performance under specific conditions
Reduced need for redesign or modification
Faster integration into existing equipment
Companies like Suofu offer OEM and ODM support, including performance tuning and structural customization. This allows users to develop solutions that fit their systems more precisely, rather than relying only on standard products.
Choosing the right micro gear pump means looking beyond simple flow values. We need to consider flow stability, pressure matching, and fluid compatibility.This is where manufacturers like Suofu provide value. They offer micro gear pumps designed for precision, reliability, and flexible integration. Their focus on leak-free performance, stable flow, and long service life helps users achieve better results in demanding applications.
A: A micro gear pump handles precise fluid transfer in cooling, dosing, and sampling systems.
A: Match flow, pressure, and fluid type to ensure stable micro gear pump performance.
A: Stable flow prevents system fluctuation and improves accuracy in critical applications.
A: Yes, but material compatibility must match the fluid to avoid damage or failure.
A: Wear resistance, material quality, and operating conditions all impact durability.
