Understanding the mechanical heart of a hydraulic system starts with one question: what actually makes a gear pump work? Whether you are dealing with High pressure industrial machinery or a Precision gear pump for laboratory use, the fundamental internal architecture remains remarkably consistent. These devices belong to the positive displacement family, meaning they move a fixed amount of fluid with every revolution.
If you are a maintenance engineer or a curious hobbyist, knowing the five core components is essential for troubleshooting and optimization. A failure in just one part—be it a worn seal or a scarred housing—can lead to massive pressure drops and system inefficiency. In this guide, we will peel back the Aluminum hydraulic gear pump shell to examine the five critical parts that ensure smooth fluid transfer.

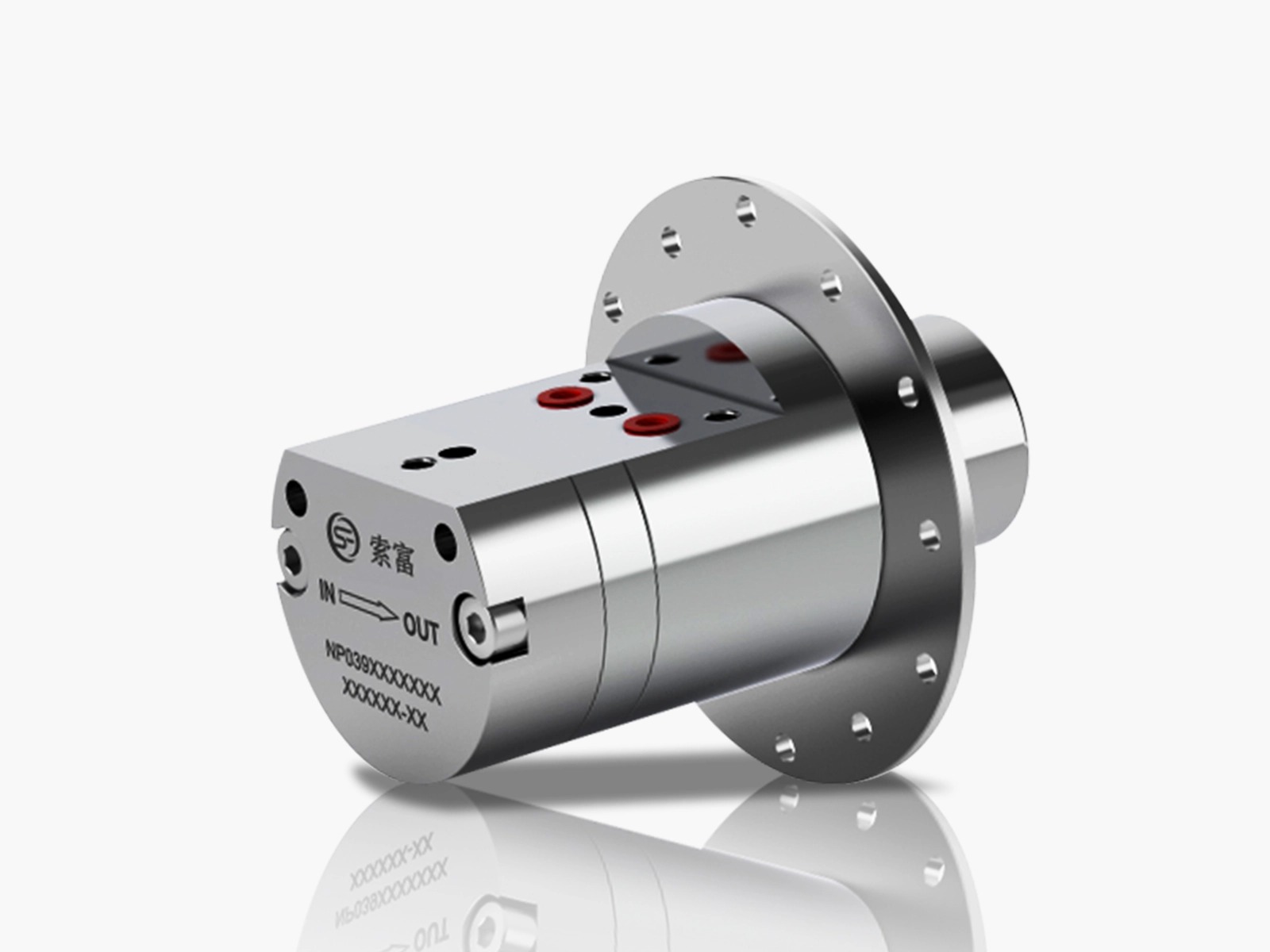

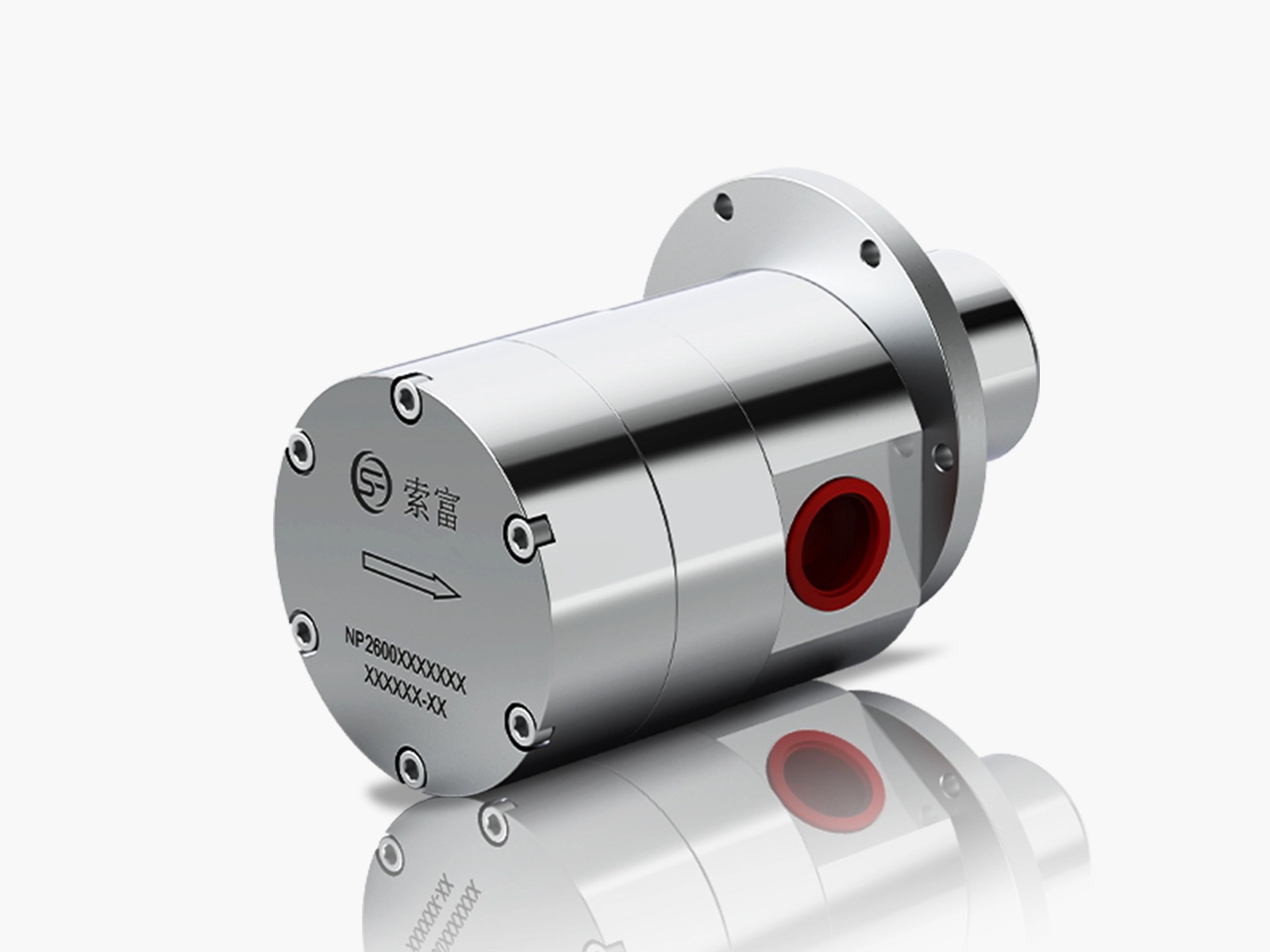

The casing is the external "skin" of the gear pump. It serves as the pressure vessel that holds all other internal components in place. Without a robust housing, the internal forces generated during fluid displacement would cause the pump to burst or leak. In many mobile applications, we see an Aluminum hydraulic gear pump housing used because it offers a perfect balance of lightweight portability and heat dissipation.
Inside the housing, the cavity is machined with extreme Precision. This ensures the gears have just enough room to rotate without touching the walls, yet stay close enough to prevent fluid from "slipping" backward. If the gap is too large, you lose efficiency; if it is too small, the friction will destroy the metal.
Materials: Common choices include cast iron for high-strength industrial use or Aluminum for weight-sensitive systems.
Porting: The housing contains the inlet (suction) and outlet (discharge) ports.
Safety: It must withstand the High pressure environment without deforming.
Every gear pump requires a leader. The driving gear is the component connected directly to the power source, such as an electric motor or an engine. It receives the torque and begins the rotation that drives the entire fluid movement process. Because it bears the brunt of the mechanical load, this gear is typically made of hardened steel or specialized alloys to prevent premature wear.
In a High pressure gear pump, the driving gear must be perfectly balanced. Any wobble or misalignment leads to vibration, which eventually creates a Low noise issue—or rather, a high-noise disaster. We often see these gears featuring ground teeth surfaces to ensure the smoothest possible interaction with the driven gear.
The driving gear is mounted on a drive shaft. This shaft often features a "key" or a spline. It ensures the gear doesn't just spin freely on the rod but turns in perfect synchronization with the motor. In a Precision gear pump, even a microscopic delay in gear movement can disrupt the flow rate, making this connection point vital for accuracy.
It transforms rotational kinetic energy into fluid potential energy. As it spins, it forces the fluid trapped between its teeth and the housing toward the discharge port. We must monitor this part for "pitting" or "cavitation" damage, as the driving gear is usually the first to show signs of system stress.
The driven gear (sometimes called the "idler") sits adjacent to the driving gear. It does not connect to the motor; instead, it moves because the driving gear's teeth mesh with its own. In an external gear pump, these two gears rotate in opposite directions. This counter-rotation creates a vacuum at the inlet, drawing fluid into the pump.
The relationship between these two gears defines the pump's performance. For instance, in a Low noise gear pump, the tooth profile is engineered to mesh so perfectly that there is almost no "trapped oil" volume. Trapped oil between teeth causes sudden pressure spikes, which create that annoying whining sound often heard in cheaper pumps.
As the teeth unmesh at the inlet, they create a void. As they re-mesh at the outlet, they force the fluid out. The driven gear must be identical in quality to the driving gear. If it is made of softer material, it will wear down, increasing the "backlash" and reducing the overall High pressure capability of the unit.
The driven gear rotates on its own shaft, supported by bushings or bearings. Because it is pushed against the housing by fluid pressure, these supports must be incredibly durable. In a High viscosity gear pump, the force required to turn the driven gear increases significantly, putting even more strain on this "silent partner."
We cannot talk about the five parts of a gear pump without mentioning the shafts and the bearings (or bushings) that hold them. Every pump has two shafts: the drive shaft and the idler shaft. These rods must remain perfectly parallel. If they tilt even a fraction of a degree, the gears will grind against the housing.
In a Precision gear pump for laboratory use, these shafts are often made of stainless steel to prevent corrosion. The bearings are the unsung heroes here. They absorb the radial loads created by the fluid pressure. In high-end models, we see "pressure-balanced" designs where a small amount of fluid is diverted to the back of the bearings to help balance the forces.
| Component | Purpose | Key Attribute |
| Drive Shaft | Connects motor to gear | High Torque Resistance |
| Idler Shaft | Supports the driven gear | Low Friction |
| Bushings/Bearings | Reduces wear during rotation | Low noise operation |
| Keyway | Locks gear to shaft | Mechanical Synchronization |
The fifth and final essential part is the sealing system. A gear pump is only as good as its ability to keep fluid inside the lines. There are two main types of seals involved: static seals (gaskets or O-rings) between the housing parts, and dynamic seals (mechanical seals or lip seals) where the drive shaft exits the housing.
For a High pressure gear pump, the seal must be able to withstand the internal force without blowing out. If you are pumping High viscosity fluids like heavy oils or resins, the seal must also be compatible with the chemical makeup of the liquid.
Mechanical Seals: Used for Precision applications to prevent even a single drop of leakage.
O-Rings: Usually made of Viton or Buna-N to handle different temperature ranges.
Lip Seals: Common in an Aluminum hydraulic gear pump for general industrial use.
When we move High viscosity liquids, the five parts face unique challenges. The gears must be strong enough to "bite" into the thick fluid without shearing. The housing must be rigid so it doesn't flex under the increased resistance.
In these scenarios, the clearances between the gear teeth and the housing are slightly wider than in a Precision gear pump designed for water-like liquids. This allows the thick fluid to actually lubricate the parts as it moves through. We often recommend a Low noise design for thick fluids because the "thumping" sound of air bubbles (cavitation) is much more common when the pump has to work harder to pull the liquid in.
Every gear pump relies on the synergy of these five parts: the housing, the driving gear, the driven gear, the shafts/bearings, and the seals. Whether you are looking for an Aluminum hydraulic gear pump for a tractor or a Precision gear pump for laboratory research, the quality of these five components determines the lifespan and efficiency of your system.
By selecting the right materials—like hardened steel for High pressure or specialized coatings for Low noise—you can ensure your equipment runs smoothly for years. Next time your pump loses pressure, check these five areas first. Usually, the culprit is a worn gear or a failing seal.
Q: Can I replace just the gears in a gear pump?
A: Technically, yes. However, gears and housings often wear together. If you put new gears into a scarred Aluminum hydraulic gear pump housing, you won't regain full pressure. It is usually more cost-effective to replace the whole unit or a matched kit.
Q: Why is my gear pump so loud?
A: Noise usually comes from cavitation (air bubbles) or worn bearings. A Low noise gear pump is designed to minimize these issues, but even the best pump will be loud if the inlet is blocked or the shafts are misaligned.
Q: What material is best for high-pressure applications?
A: For High pressure, cast iron or steel housings are preferred over Aluminum. Steel gears are almost always required to handle the torque.
Q: How do I choose a pump for a lab setting?
A: Look for a Precision gear pump for laboratory use that features stainless steel components and high-quality mechanical seals to ensure accurate flow rates and zero contamination.
