Steam Generator Industry Overview: The Thermal Core of Modern Industry
The Pain Point of Electrochemical Energy Storage Safety: A Technological Critical Battle Concerning a Trillion-Dollar Market
In recent years, the global electrochemical energy storage industry has developed rapidly, but frequent fire accidents have sounded the alarm for the sector. This year, the world's largest battery energy storage facility in the US has already experienced two fires; in 2024, 4 energy storage power station fires occurred in countries like the US, South Korea, and Germany; in 2023, 10 fires happened in the US, Germany, France, Australia, Switzerland, etc. The 2021 Beijing "4.16" energy storage station explosion accident resulted in the sacrifice of 2 firefighters; the explosion at the McMicken energy storage project in Arizona, USA, led to the suspension of an 850MW installation plan... These alarming incidents reveal a critical industry pain point: traditional fire suppression systems struggle to cope with the suddenness and complexity of lithium battery thermal runaway.
The National Development and Reform Commission and the National Energy Administration explicitly stated in the Guiding Opinions on Accelerating the Development of New Energy Storage: by 2025, the installed capacity of new energy storage must reach 30 million kilowatts. Achieving this goal makes safety protection technology an industry necessity.
Pump products, as the core components of fire suppression systems, face four major technical challenges:
Extremely High Sealing Requirements: The fire suppression agent Novec 1230 begins to vaporize at 30°C and completely vaporizes at 90°C, generating 3.3 bar of pressure.
Special Medium: Needs to transport Novec 1230 in a gas-liquid two-phase mixed state.
Extreme Operating Conditions: Stable operation across a wide temperature range from -40°C extreme cold to 150°C high temperature.
High Reliability Requirements: Service life exceeding 20,000 hours, with maintenance costs needing to be reduced by over 40%.
[Chart showing energy storage station fires and explosion incidents worldwide]
Technical Challenge | Limitations of Traditional Solutions | Suofu NP Series Solution |
|---|---|---|
Sealing Performance | Mechanical seals are prone to leakage | Magnetic Drive Zero Leakage: Rare-earth magnetic drive + fully welded pump body, ensuring zero leakage even when perfluorohexane is fully vaporized |
Medium Delivery | Only capable of transporting pure liquids | Gas-Liquid Two-Phase Delivery: Special cavity profile design, handling 30%-50% gas mixture ratio |
Self-Priming Capacity | Requires pre-priming for startup | 5m Water Column Self-Priming: Patented gear profile generates -0.85bar negative pressure, enabling dry-line startup and adapting to working conditions with gas at the pump inlet after long shutdowns |
Dry Running | Damaged after short-time dry running | 1-Hour Dry Running: Self-lubricating design with PEEK gears + ceramic shafts, zero wear after inspection |
Pressure Output | Pressure tank pressure decays rapidly | 20bar Continuous Pressure: Meets industry spraying requirements. Compared with pressure tank solutions, pipeline pressure stability is improved by 300% |
Service Life | 6000-8000 hours | 20,000-Hour Service Life: Almost pure rolling gear meshing design, reducing wear rate by 90%; The maximum design pressure of Suofu NP gears is at least 40bar, with zero risk in working conditions around 10bar, capable of withstanding long-term high-load operation. Low maintenance cost, providing continuous spraying pressure compared to the short-term pressure output of accumulators |
Easy Maintenance | Requires real-time pressure inspection and charging | Delivers stable pressure and flow at all times |
To more intuitively demonstrate the advantages of the Suofu NP series micro magnetic gear pump in electrochemical energy storage applications, a comparative analysis with centrifugal pumps and high-pressure tanks across several key performance dimensions is provided:
Performance Indicator | Suofu Micro Magnetic Gear Pump | Centrifugal Pump | High-Pressure Tank |
|---|---|---|---|
Flow Control | Precisely adjustable flow via motor speed control, with stable flow output. Ideal for low-flow, high-precision applications. | Relatively complex flow adjustment, highly affected by impeller speed and pipeline resistance, with low accuracy. | No active flow control capability; requires auxiliary equipment for flow regulation. |
Pressure Output | Stable pressure for high-pressure spraying (15-18 bar), excellent self-priming performance, fine spray mist, and superior cooling effect. Suitable for applications with strict pressure stability requirements. | Low pressure (3-5 bar), long vaporization time, poor cooling effect, and no self-priming capability after vaporization. | Capable of delivering high pressure, but pressure release is difficult to control precisely. Pressure decays rapidly during operation, significantly compromising atomization cooling performance under high-pressure demands. |
Energy Consumption | High gear transmission efficiency, low energy consumption, and remarkable energy-saving effect. | Mechanical friction losses, high energy consumption, and relatively low efficiency. | No inherent power consumption, but high energy demand for supporting equipment. |
Sealing Performance | Shaftless seal design, zero leakage. Suitable for transporting corrosive and toxic media. | Prone to shaft seal wear and leakage risks; not suitable for hazardous media. | Good overall sealing, but potential leakage at connection interfaces. |
Maintenance Difficulty | Simple structure, no vulnerable shaft seal components, long maintenance cycle, and low cost. | Requires regular seal replacement, impeller wear, and frequent maintenance. | Requires regular pressure and sealing inspections, with complex maintenance. |
Installation Space Requirement | Compact size and structure, easy for system integration. | Large size, occupies significant space, not suitable for compact layouts. | Large size, requires reserved safety space and installation positions. |
Application Scenario Adaptation | Ideal for battery thermal management, electrolyte circulation, and other applications with high safety and precision requirements. | Suitable for general liquid transfer with large flow and low requirements for pressure and accuracy. | Commonly used for pressure storage and instantaneous release scenarios, such as hydraulic systems. |
From the comparison, it is clear that under the stringent requirements of electrochemical energy storage systems for pressure output, flow accuracy, energy consumption, and spatial layout, the Suofu micro magnetic gear pump exhibits significant comprehensive performance advantages, making it more suitable for the application needs of this field.
Zero Leakage, Adapts to Gas-Liquid Two-Phase State
The saturated vapor pressure of Novec 1230 has a linear relationship with temperature, increasing as temperature rises. At 30°C, it gradually begins to vaporize slowly, generating 0.5 bar pressure inside the container. At 90°C, it is completely vaporized, producing 3.3 bar pressure, thus imposing extremely high sealing requirements on pipelines and pump sources.
The standard Suofu NP series gear pump is equipped with powerful rare-earth magnetic drive, offering strong magnetism and good stability. This magnetic drive design means the system only uses O-ring static seals, eliminating the risk of dynamic seal failure; even if the internal Novec 1230 is already in a vaporized state, no leakage occurs.
High Pressure, Strong Self-Priming Capability
During firefighting operations, Novec 1230 may vaporize, meaning the pump inlet may contain only gas. Additionally, sufficient self-priming capability is required during fluid replacement.
The gears of the Suofu NP gear pump are made from high-grade PEEK material. Patent-pending gear tooth profile and cavity design, along with the use of ceramic shafts, significantly enhance the system's "self-lubricating" performance. The system can generate a vacuum of -0.85 bar. Tests have verified that a Suofu NP gear pump can prime a water column up to 5 meters high.
Stable, Pulsation-Free Flow, Long Service Life
In a State Grid energy storage power station project, the NP1700 + Brushless DC motor pump combination operated continuously for 4000 hours with a flow decay of <1%.
High and Low Temperature Resistance
In a -40°C low-temperature startup test, it took only 8 seconds from cold start to full flow output.
Under 90°C high-temperature gas-liquid mixed conditions, pressure fluctuation was controlled within ±0.3 bar.
According to research from the State Key Laboratory of Fire Science at the University of Science and Technology of China, energy storage fire protection requires establishing a "PACK-Cluster-Container" three-level protection system. Suofu provides differentiated solutions:
PACK-Level Precision Protection
Product Model: NP900 (Flow: 2L/min, Pressure: 15bar)
Technical Highlights:
Response time <50ms, meeting early intervention requirements for thermal runaway.
Can be integrated into the Battery Management System (BMS) for multi-parameter linkage based on voltage drop and temperature.
Case Study: Deployment of 1200 NP900 units in an automotive company's energy storage project increased the thermal runaway propagation suppression rate to 99.2%.
Cluster-Level Zonal Protection
Product Model: NP1700 (Flow: 45L/min, Pressure: 10bar)
Innovative Design:
The Brushless DC motor can be directly connected to a UPS power source.
Precise flow control (accuracy ±0.1%) achieved via speed regulation.
Measured Effect: Compared to traditional centrifugal pumps, energy savings of 30% and noise reduction of 15dB under the same operating conditions.
Container-Level Total Flooding Protection
System Solution: NP1700 + Cluster Control
Advantages:
Supports quick-connect mobile refill interfaces.
15m safe distance remote control ensures firefighter safety.
Customer Value: After adopting this solution, a photovoltaic energy storage power station extended its fire protection system maintenance cycle from 3 months to 2 years.
Value Suofu Provides to Customers
Material Advantages:
Gears use imported PEEK material (temperature resistance: -120~150°C).
Ceramic shaft wear resistance exceeds national standard by 3 times.
Production Process Advantages:
One-time injection-molded gears achieve 99.97% density on the working surface.
Pulsation-free outlet pressure; high-precision part machining and structural design ensure smooth gas-liquid delivery.
Customization Service Capability:
Provides targeted solutions within 72 hours.
Supports flexible motor selection (DC/AC/Explosion-proof). The motor can be connected to the system's UPS power source for control via different speeds.
Cost Advantages:
Price is only 60% to 70% of comparable imported products.
Maintenance costs are reduced by over 40%.
Technical Q&A: Top 5 Questions from Engineers
Q1: Does Novec 1230 vaporization affect pump performance?
A: The special cavity design of the NP series automatically balances the gas-liquid ratio. Tests show flow fluctuation is <3% at 50% vaporization rate.
Q2: How is startup guaranteed in extreme cold environments?
A: Optional heating kits are available, enabling establishment of full flow within 8 seconds in -40°C environments.

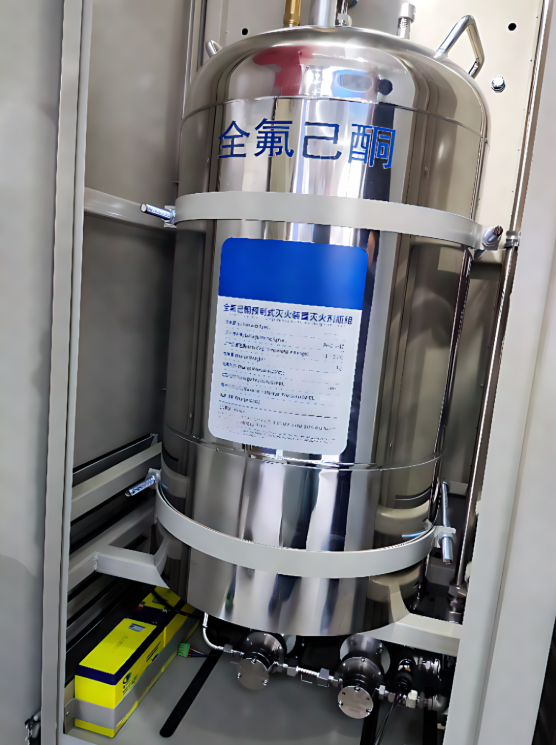

Q3: What are the advantages compared to pressure tank solutions?
A: Pressure tanks experience sudden pressure drop upon valve opening, whereas pumps provide continuous stable pressure, especially suitable for long pipeline scenarios.
Q4: How to deal with on-site rust and impurities?
A: It is recommended to install a 400-mesh filter at the inlet. Additionally, PEEK gear resistance to particle wear is 5 times that of metal gears.
Q5: Is retrofitting existing systems supported?
A: Various interface options (flange/thread) are provided. There is already a successful case retrofitting an early energy storage project for a globally leading new energy innovation technology company.
Shanghai Super Fluid Co., Ltd.
Shanghai Super Fluid Co., Ltd. (Suofu), has an R&D and sales center in Shanghai (Shanghai Suofu) and a production base in Sanming City, Fujian Province (Sanming Suofu). With its own R&D team and independent production factory, the company occupies a total area of 2000㎡, including a 1600㎡ production workshop and a 200㎡ warehouse. SUOFU is constructing a new plant covering 19 acres with a building area of 20,000 square meters. Sanming Suofu is recognized as a National High-Tech Enterprise and a Specialized, Refined, Distinctive, and Innovative (SRDI) Enterprise. Located in the Fujian Zhongguancun Science Park, the company has won the second prize in the Fujian Innovation and Entrepreneurship Competition and advanced to the national finals.
The company holds 29 patents and has participated in 25 national and provincial-level R&D projects.
Suofu Product Advantages:
Special Gear Profile Design: Proprietary gear profile design provides excellent wear resistance andnear-pure rolling gear meshing.
Special Cavity Profile Design: Adapts to operating conditions with wide-ranging outlet pressure variations, performing well under low pressure, high pressure, or short-term reversal.
Pulsation-Free Outlet Pressure: High-precision part machining and structural design ensure smooth liquid delivery.
One-Shot Injection Molded Gears: The working tooth surfaces of the gears are manufactured using high-precision one-shot injection molding without subsequent mechanical machining, ensuring gear working surface integrity.
High-Precision Ceramic Shaft: High-precision ceramic shafts offer exceptional wear resistance and rigidity, ensuring reliable pump operation under abrasive liquid and high-pressure conditions.
Capable of Long-Term Dry-Running Self-Priming: In applications requiring the pump's inlet vacuum to draw in the medium, the NP series products provide reliable performance.
Multiple Motor Options Available: Options include AC explosion-proof, AC variable frequency, single-phase/three-phase AC, DC brushed, DC brushless, DC brushless with built-in driver, and shielded DC brushless motors with built-in driver.
