As electric vehicle charging power continues to increase, thermal management has become one of the most important design considerations for DC fast charging stations. High charging currents generate significant heat in charging cables, connectors, power modules, capacitors, inductors, and control components.
An ultra-fast charging liquid cooling pump circulates coolant through the charging system, transfers heat away from critical components, and helps maintain a stable operating temperature during continuous high-power charging.
For charging station manufacturers and thermal management system integrators, the miniature magnetic gear pump is becoming an important pump option because of its compact structure, predictable fluid delivery, magnetic drive design, and suitability for closed liquid cooling circuits.
High Power Charging, commonly referred to as HPC, is used in ultra-fast DC charging stations that operate at high current levels. Phoenix Contact describes HPC as a high-performance DC charging class using charging currents above 375 A. Its latest liquid-cooled charging cable systems are designed for charging power reaching up to 1,000 kW under specified operating modes.
As charging current increases, electrical resistance produces more heat in the conductor, connector contacts, and surrounding electronic components. Without sufficient cooling, excessive temperature may lead to:
Reduced charging power
Automatic current derating
Premature component aging
Damaged cable insulation
Uncomfortable connector temperatures
Increased charger downtime
Potential coolant or electrical safety risks
Liquid cooling removes heat by circulating coolant through tubes, cooling plates, heat exchangers, charging cables, or connector assemblies. Consistent coolant circulation is essential because inadequate or unstable flow can reduce heat-transfer performance.
An ultra-fast charging liquid cooling pump is a coolant circulation pump installed inside an EV charging station, liquid cooling unit, charging dispenser, or cable cooling module.
Its main function is to circulate cooling fluid between heat-generating components and a heat exchanger or radiator.
Depending on the system design, the pump may cool:
Liquid-cooled EV charging cables
CCS or NACS charging connectors
Megawatt charging connectors
DC charging power modules
Rectifier and inverter components
IGBT or SiC power electronics
Busbars and electrical contacts
Charging station control cabinets
Integrated liquid cooling units
A complete cooling circuit may include the pump, coolant reservoir, radiator, fan, filter, temperature sensor, pressure sensor, flow sensor, expansion chamber, and electronic controller.
A miniature magnetic gear pump is a compact positive-displacement pump that uses rotating gears to move coolant through the cooling circuit.
Instead of using a conventional shaft seal between the motor and pump chamber, the pump uses magnetic coupling to transmit torque. The motor-side magnet drives an internal magnet connected to the pump gears.
This design separates the motor from the pumped liquid and can reduce leakage paths associated with dynamic shaft seals.
Magnetically driven gear pumps are already used in EV charger cooling applications because they can provide controlled fluid delivery in a compact package. Some commercial magnetic drive gear pumps are specifically designed for high-temperature fluids and use a seal-less magnetic transmission structure.
Coolant leakage is a serious concern inside charging equipment because liquid may damage power electronics, control boards, insulation systems, and electrical connections.
A magnetic drive pump eliminates the rotating shaft penetration between the wet pump chamber and the external motor. This reduces dependence on a conventional dynamic shaft seal.
However, the complete pump still requires properly designed static seals, housing joints, tube connections, and fittings. Therefore, the pump should be evaluated as part of the entire cooling circuit rather than treated as the only leakage-control component.
Ultra-fast charging equipment contains power modules, electrical distribution components, monitoring devices, communication systems, cooling equipment, and cable-management structures.
Available installation space is often limited.
A miniature magnetic gear pump can be integrated into:
Compact cooling distribution units
Charging cable cooling modules
Wall-mounted DC chargers
Standalone charging dispensers
Modular charging cabinets
Mobile charging equipment
Liquid cooling test systems
Its compact design gives charging equipment manufacturers more flexibility when arranging reservoirs, heat exchangers, sensors, piping, and control components.
Gear pumps transfer a defined volume of liquid during each gear rotation. This allows the flow rate to be adjusted through motor speed within the pump’s approved operating range.
Predictable coolant delivery is particularly useful when the charging system needs to maintain a target flow rate through narrow cooling tubes, long charging cables, connectors, filters, or compact heat exchangers.
The actual operating flow is affected by:
Pump speed
Coolant viscosity
Coolant temperature
Differential pressure
Internal leakage
Pipe diameter
Cable length
Filter resistance
Heat exchanger pressure drop
For this reason, pump selection should be based on a complete system resistance curve rather than a free-flow value alone.
Ultra-fast charging systems do not all use the same coolant.
Water-glycol mixtures are commonly used in charging equipment and liquid-cooled charging cables. For example, Phoenix Contact specifies a water-glycol mixture for some of its cooled HPC charging cable systems. Other charging or megawatt charging systems may use dielectric cooling fluids, depending on how the liquid contacts the conductor and electrical components.
A miniature magnetic gear pump can be developed for different coolants, but material compatibility must be verified for each project.
Important pump materials include:
Pump housing

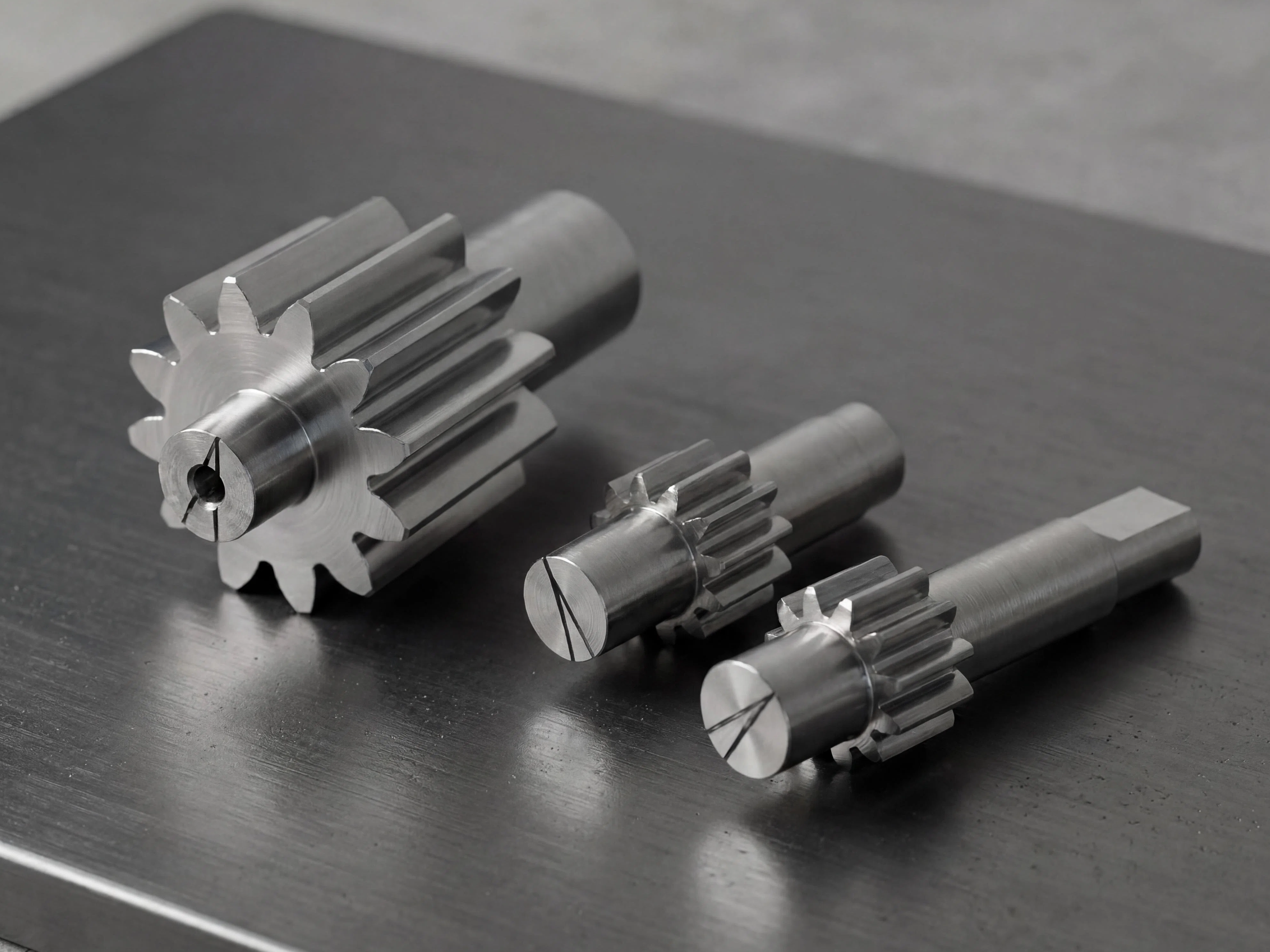

Gear material
Shaft material
Bearing material
O-rings
Gaskets
Adhesives
Magnetic containment components
Never assume that a pump suitable for water is automatically suitable for glycol mixtures, silicone oil, dielectric coolant, or other engineered cooling fluids.
Charging heat load changes during the charging cycle. It may also vary according to vehicle demand, battery state of charge, ambient temperature, charging current, and the number of active charging outputs.
A variable-speed pump allows the cooling controller to adjust coolant circulation according to real-time operating conditions.
Possible control methods include:
PWM speed control
0–10 V speed input
Analog voltage control
CAN communication
RS485 communication
Customized motor control protocols
Variable-speed operation may help reduce unnecessary energy consumption and noise when the charger is operating at a lower thermal load.
Public DC charging stations may operate for long periods and complete multiple charging sessions every day. The cooling pump must therefore be designed for frequent starts, extended operation, and changing environmental conditions.
When evaluating an EV charger cooling pump, buyers should request testing information related to:
Continuous-duty operation
Start-stop cycles
High- and low-temperature performance
Coolant aging
Pressure cycling
Motor temperature rise
Bearing and gear wear
Leakage testing
Long-duration endurance testing
The pump circulates coolant through the charging cable and connector before returning it to the heat exchanger.
This application requires careful control of pressure loss because the cooling channels inside the cable may be narrow and the total cable length may be several metres.
Heat can accumulate around charging contacts during high-current operation. A dedicated cooling circuit may carry heat away from the connector and cable terminal area.
The pump must provide sufficient flow without producing excessive pressure that could damage tubing, seals, or connector components.
Charging power modules contain heat-generating semiconductor components and electrical devices. Liquid cooling plates may be used to transfer heat from the modules to a shared cooling circuit.
In this application, the pump may need to handle multiple parallel cooling branches.
Some charging station manufacturers use a complete cooling distribution unit containing the pump, reservoir, radiator, fan, sensors, filter, and controller.
A compact magnetic gear pump can be integrated into this unit as the main coolant circulation component.
The required flow should be calculated according to:
Maximum heat load
Coolant heat capacity
Permitted coolant temperature rise
Cable and connector cooling requirements
Number of cooling branches
Heat exchanger efficiency
Do not simply choose the pump with the highest maximum flow rate. An oversized pump may increase energy consumption, system pressure, vibration, fluid noise, and coolant temperature rise caused by internal recirculation.
The pump must overcome resistance from the complete cooling circuit, including:
Charging cable
Connector
Cooling plates
Tubes and hoses
Bends and fittings
Filters
Valves
Heat exchanger
Flow meter
Quick couplings
Ask the pump supplier to provide a flow-pressure curve using a coolant viscosity close to the actual application.
Coolant viscosity may increase significantly in cold environments. A pump that performs correctly at 25°C may produce a lower flow rate or require more motor torque at sub-zero temperatures.
The selection process should consider:
Minimum start-up temperature
Maximum continuous coolant temperature
Cold-start viscosity
Normal operating viscosity
Maximum allowable motor current
Magnetic coupling torque margin
Provide the coolant’s complete technical data sheet to the pump manufacturer.
The evaluation should include:
Chemical composition
Glycol concentration
Additives
Electrical conductivity
Lubricity
Viscosity
Maximum temperature
Minimum temperature
Expected replacement interval
Long-term immersion or circulation tests may be necessary when the coolant contains proprietary additives.
Common charging equipment control voltages may include 12 VDC, 24 VDC, 48 VDC, or customized power supplies.
The selected pump motor should match the charger’s electrical architecture and provide suitable protection against:
Overcurrent
Overvoltage
Reverse polarity
Locked rotor
Excessive motor temperature
Communication failure
A modern liquid cooling system should not rely only on pump operation commands.
The controller may also monitor:
Coolant flow
Inlet and outlet temperature
Circuit pressure
Reservoir liquid level
Pump motor current
Pump speed
Coolant leakage
Filter blockage
Monitoring these values helps the charger reduce output or stop charging safely when cooling performance is insufficient.
Before requesting a quotation, charging station manufacturers should provide the following information:
Selection Item | Project Information Required |
|---|---|
Application | Charging cable, connector, power module or complete cooling unit |
Coolant | Water-glycol, dielectric liquid, silicone oil or other coolant |
Required flow | Rated and maximum flow rate |
System pressure | Normal and maximum differential pressure |
Temperature | Minimum start-up and maximum operating temperature |
Viscosity | Viscosity across the operating temperature range |
Motor voltage | 12 VDC, 24 VDC, 48 VDC or customized |
Control method | Fixed speed, PWM, analog, CAN or RS485 |
Installation | Horizontal, vertical or customized mounting |
Port connection | Thread, hose barb, flange or customized fitting |
Service life | Target operating hours and start-stop cycles |
Certification | Application-specific compliance requirements |
Annual quantity | Prototype, pilot project and mass-production demand |
Providing complete operating data allows the pump manufacturer to recommend a model based on actual duty conditions instead of nominal flow alone.
Maximum flow is usually measured under low-resistance conditions. The actual flow inside a charging cable cooling circuit can be substantially different.
A coolant may become much more viscous at low temperatures, increasing pump torque and power requirements.
An unsuitable O-ring or gasket material may swell, harden, crack, or lose sealing performance after long-term coolant exposure.
Trapped air may reduce heat transfer, increase noise, interrupt flow, or cause unstable pump operation. The system should include suitable filling, venting, and reservoir arrangements.
Continuous operation at excessive pressure or unsuitable speed may increase wear, motor temperature, and internal leakage.
A pump may perform well on a laboratory bench but behave differently when connected to the actual cable, cooling plate, heat exchanger, filter, and piping network.
Prototype testing should therefore use a cooling circuit that closely represents the final charging equipment.
Both pump types can be used in liquid cooling systems, but they have different characteristics.
Comparison | Magnetic Gear Pump | Centrifugal Pump |
|---|---|---|
Flow characteristic | Predictable displacement per revolution | Flow changes more strongly with system resistance |
Pressure capability | Suitable for circuits with moderate or higher resistance | Often preferred for high-flow, low-pressure circuits |
Size | Compact for low-to-medium flow applications | Available across a broad flow range |
Priming | Depends on pump design and installation | Often requires a flooded inlet |
Fluid cleanliness | Clean coolant is normally recommended | May tolerate different particle conditions depending on design |
Speed control | Suitable for controlled flow adjustment | Commonly used with variable-speed control |
Best application | Compact, controlled cooling circuits | Larger circulation systems with high flow demand |
The final choice should be based on coolant properties, required flow, pressure drop, noise, package size, service life, cost, and maintenance requirements.
It can be designed for water-glycol mixtures, but the pump supplier must verify gear, bearing, housing, magnet containment, and sealing material compatibility with the exact glycol concentration and additives.
Potentially, yes. However, dielectric fluids can have different viscosity, lubricity, swelling, and temperature characteristics. Application testing is required before mass production.
The magnetic drive removes a conventional rotating shaft seal, reducing one important leakage path. However, static seals, housing joints, ports, tubing, and fittings must still be correctly designed and tested.
There is no universal flow rate. It depends on charging current, cable design, cooling channel dimensions, coolant type, cable length, permitted temperature rise, and system pressure drop.
Yes, when the pump is equipped with a compatible brushless DC motor and speed controller. The charger can increase or reduce pump speed according to temperature, charging current, or cooling demand.
The pump manufacturer normally requires coolant data, flow, pressure, viscosity, operating temperature, motor voltage, control method, installation space, port type, expected lifetime, certification requirements, and annual demand.
As EV charging systems move toward higher current and higher power, stable liquid circulation becomes increasingly important. Liquid-cooled cables and connectors are already being developed for hundreds of amperes and, in some systems, megawatt-class charging.
A properly selected miniature magnetic gear pump can provide compact coolant circulation for charging cables, connectors, power modules, and integrated cooling distribution units.
Successful pump integration requires more than matching a nominal flow rate. Charging equipment manufacturers should evaluate the complete cooling circuit, coolant viscosity, pressure loss, temperature range, material compatibility, control strategy, monitoring requirements, and expected service life.
By working with an experienced ultra-fast charging liquid cooling pump manufacturer, EV charger OEMs can develop a customized pump configuration that meets their cooling performance, installation, reliability, and mass-production requirements.
