Quick Answer: Can micro magnetic gear pumps be used for compressor cooling?
Yes. Micro magnetic gear pumps can be used in selected compressor cooling and refrigeration systems where compact size, controlled positive-displacement flow, fluid containment and flexible motor control are required. The correct pump depends on the refrigerant or coolant, flow rate, differential pressure, temperature, viscosity and system architecture.

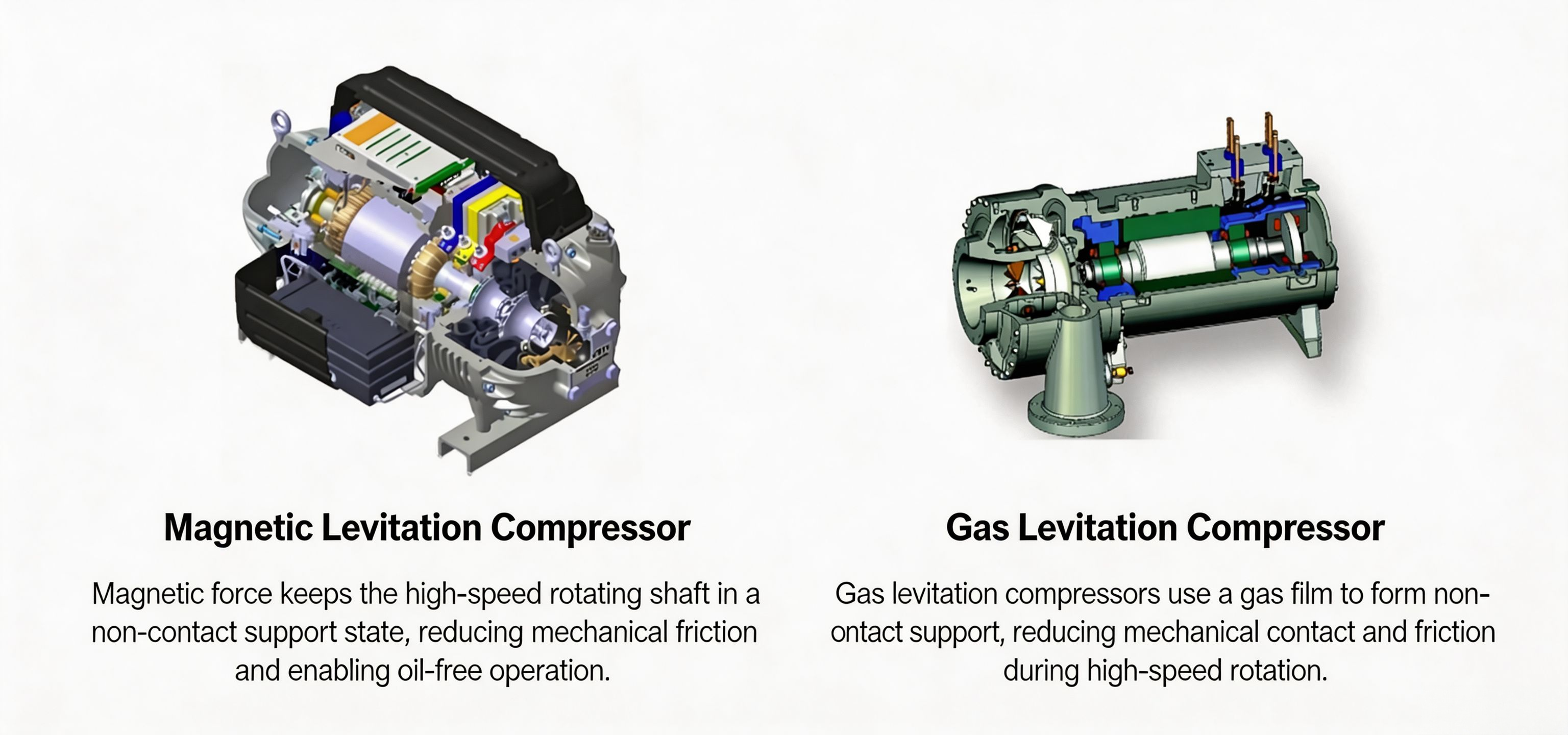

Magnetic-bearing and air-bearing compressors are increasingly used in high-efficiency refrigeration, industrial cooling, and data center cooling systems. As compressor systems become more compact and thermally demanding, the auxiliary pump used for refrigerant or cooling-fluid circulation must deliver stable flow, sufficient pressure, reliable sealing, compact installation, and long-term operating stability.
A micro magnetic gear pump can be a suitable solution when the cooling system requires precise fluid delivery in a compact package. Its magnetic-drive structure eliminates the need for a conventional dynamic shaft seal, while the positive-displacement gear mechanism provides controlled flow across a broad operating range.
For compressor cooling applications, however, selecting a pump is not simply a matter of choosing the smallest or highest-flow model. Engineers need to consider the refrigerant or cooling medium, required flow, differential pressure, temperature, viscosity, motor and control method, materials compatibility, and actual system operating conditions.
This guide explains how micro magnetic gear pumps support compressor cooling systems, what technical parameters matter most, and how to select a suitable pump configuration.
In a conventional refrigeration system, fluid circulation performance directly affects heat transfer and system efficiency.
The requirements become more demanding in magnetic-bearing and air-bearing compressor systems, where compact equipment, high operating efficiency, and precise thermal management are often important design objectives.
Depending on the system architecture, an auxiliary pump may be used to support:
Refrigerant circulation
Compressor cooling
Heat exchanger circulation
Liquid cooling loops
Thermal management of auxiliary components
Precision refrigeration systems
The pump therefore needs to operate reliably under the actual combination of flow, pressure, temperature, viscosity, and fluid properties.
For engineering teams, the key question is not simply:
“What pump has enough flow?”
A better question is:
Can the pump maintain the required operating point while remaining compatible with the refrigerant, temperature, pressure, materials, motor, and control system?
Traditional motor-driven pumps often use a mechanical shaft seal where the rotating shaft passes through the pump chamber.
For refrigeration and precision cooling applications, leakage at this interface can create reliability and maintenance concerns.
A magnetic-drive gear pump transfers motor torque through magnetic coupling without requiring a conventional dynamic shaft penetration into the fluid chamber.
This structure can:
Reduce the leakage path associated with conventional shaft seals
Separate the motor from the pumped fluid
Improve containment of the working medium
Support compact pump construction
However, magnetic drive should not be interpreted as an absolute “zero-leakage” guarantee. Actual sealing performance depends on the complete pump configuration, materials, connections, pressure, temperature, and installation conditions.
Compressor cooling systems do not always require large fluid volumes.
Some applications require relatively small but accurately controlled flow rates to maintain the desired thermal conditions.
A positive-displacement gear pump delivers a defined volume per revolution. The theoretical flow can be approximated by:
Q ≈ Vd × n
where:
Q = theoretical flow
Vd = displacement per revolution
n = rotational speed
Actual flow will depend on operating conditions, including internal slip, pressure differential, fluid viscosity, temperature, and pump configuration.
This makes pump speed control particularly useful when the cooling system needs variable flow.
Refrigerant applications can be more challenging than conventional water-based cooling loops.
Depending on the system, the pump may encounter refrigerants or other low-viscosity media such as:
R134a
R410A
R245fa
R1233zd
Water/glycol mixtures
Dielectric cooling fluids
Other application-specific refrigerants or cooling media
The actual compatibility of a refrigerant with a pump cannot be determined from the refrigerant name alone.
Engineers should evaluate:
Fluid viscosity
Operating temperature
Vapor pressure
Pressure differential
Material compatibility
Seal compatibility
Lubricity
Gas-liquid conditions
Required service life
For this reason, refrigerant compatibility should always be confirmed for the specific pump configuration before final selection.
A refrigeration or compressor cooling loop may require the pump to overcome:
Heat exchanger resistance
Piping losses
Valves and fittings
Filters
Cooling channels
Elevation differences
System pressure differences
A pump with insufficient differential-pressure capability may fail to reach the required flow rate.
At the same time, selecting an excessively large pump can increase motor power, system cost, and control complexity.
The correct selection therefore starts from the actual operating point:
Required flow + required differential pressure
rather than simply selecting a pump according to nominal flow.
Compressor cooling systems may experience significant temperature variation during startup, normal operation, transient conditions, and shutdown.
Depending on the selected NP configuration, Suofu micro magnetic gear pumps can support demanding temperature ranges, with some configurations designed for approximately -120°C to +150°C operation.
The actual allowable temperature depends on:
Pump model
Pump materials
Seal material
Refrigerant
Motor configuration
Pressure
Speed
Operating conditions
Therefore, the published temperature range should be treated as a configuration-dependent engineering parameter, rather than a universal value for every NP Series pump.
Space can be limited inside:
Compressor assemblies
Chiller units
Refrigeration skids
Data center cooling equipment
Liquid cooling modules
Precision temperature-control systems
A compact micro pump can simplify system integration and provide greater flexibility when the pump must be installed close to the cooling circuit.
For OEM equipment manufacturers, the pump can also be customized according to:
Pump dimensions
Port configuration
Motor
Voltage
Speed range
Control signal
Materials
Installation interface
Suofu's NP Series covers a broad range of micro magnetic gear pump configurations for precision fluid delivery.
The product family extends from small-flow precision pumps to higher-flow industrial cooling pumps.
NP Series | Typical Models | Displacement | Rated Flow Range | Typical Application |
|---|---|---|---|---|
NP20 | NP010 | 0.1 ml/rev | 0–1.5 L/min | Small-flow precision cooling |
NP42 | NP020 / NP039 / NP060 / NP070 | 0.2–0.7 ml/rev | 0–2.2 L/min | Small-flow cooling |
NP51 | NP100 / NP120 / NP170 / NP190 | 1.0–1.9 ml/rev | 0–6.0 L/min | Small-to-medium cooling |
NP60 | NP240 / NP350 | 2.4–3.5 ml/rev | 0–10.5 L/min | Medium-flow cooling |
NP98 | NP400/NP600/NP900/NP1200/NP1700 | 4–17 ml/rev | 0–55 L/min | Higher-flow refrigeration |
NP106 | NP2600 | 26 ml/rev | 0–65 L/min | Large-flow industrial cooling |
The published product ranges show that the NP Series can cover applications from approximately 0–1.5 L/min to 0–65 L/min, depending on model and configuration. Differential-pressure capability also varies by series and operating condition.
Important: The values above are product-range references, not guaranteed operating points for every refrigerant application. Final selection should be based on the actual medium, flow, differential pressure, temperature, speed, motor configuration, and pump performance curve.

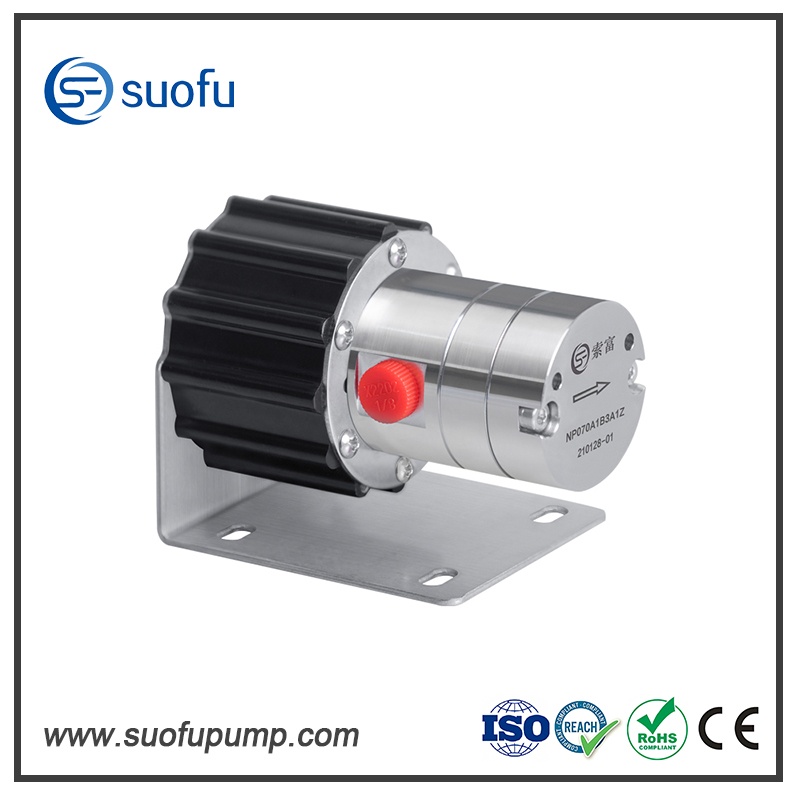

The NP070 can be considered when a compressor cooling system requires a relatively small and controlled flow rate.
Typical applications include:
Precision refrigeration
Small cooling circuits
Compact compressor cooling systems
Specialized thermal management
For applications requiring very low flow with compact installation, the NP42 family provides additional configuration options.

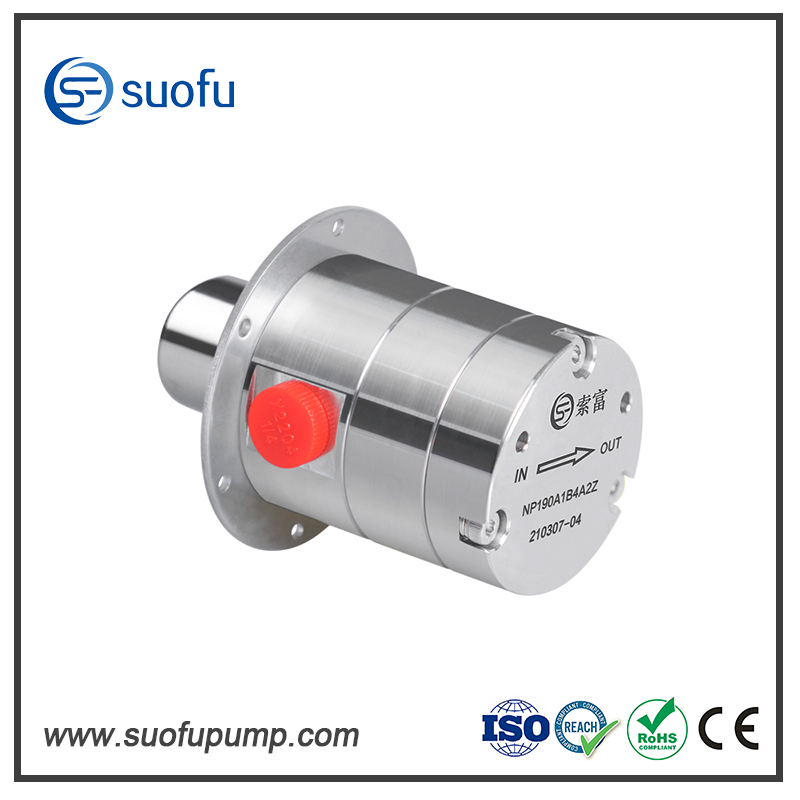

The NP190 is suitable for small-to-medium flow applications where the system requires a compact pump with flexible motor and speed-control options.
A typical configuration may include:
24 V DC motor
Multiple motor power options
0–5 V speed control
Shielded motor configuration
Potential applications include:
Compressor cooling
AIDC cooling equipment
Precision refrigeration
Compact liquid cooling systems

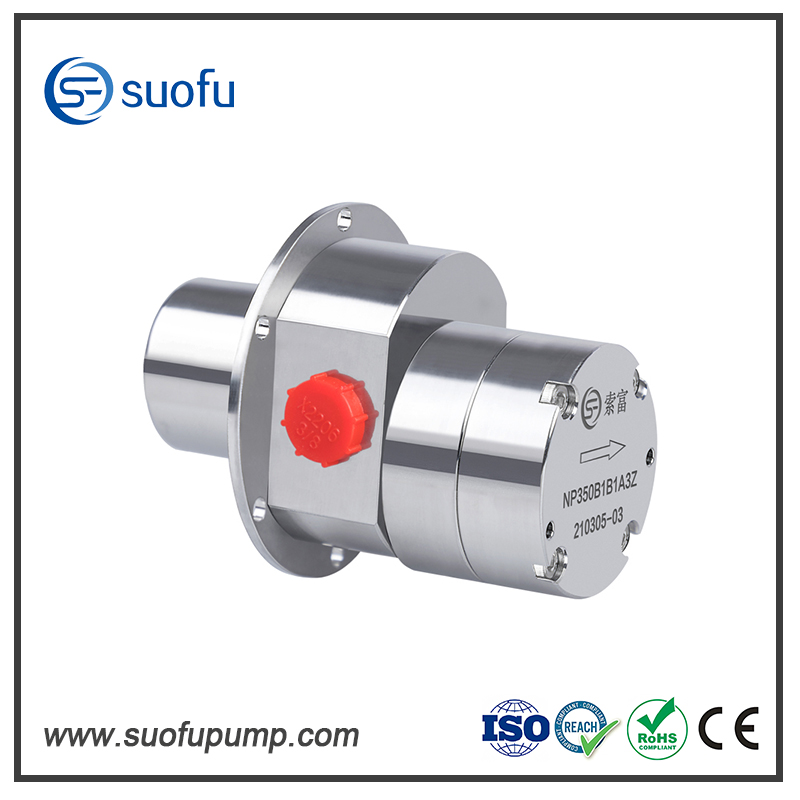

For systems requiring greater circulation capacity, the NP350 provides a higher displacement option.
A typical configuration can use a 24 V / 300 W DC speed-control motor, depending on the application.
It can be considered for:
Data center cooling equipment
Medium-flow refrigeration
Compressor cooling systems
Industrial thermal management

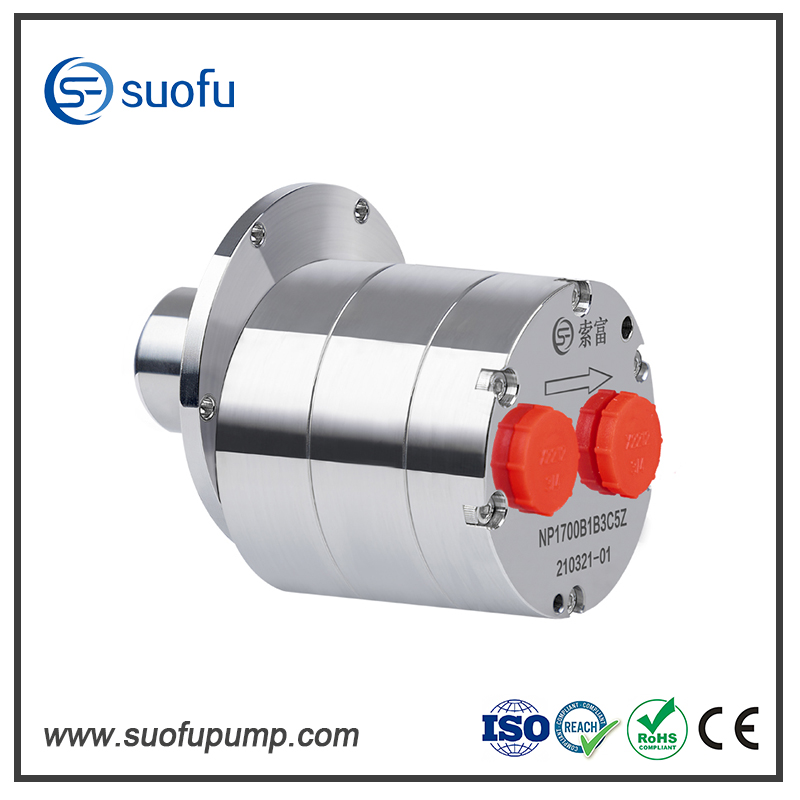

The NP1700 belongs to the higher-flow NP98 Series.
It can be configured with an industrial inverter motor for variable-frequency operation, making it suitable for applications where the required flow changes according to operating conditions.
Potential applications include:
Large compressor cooling systems
Industrial refrigeration
AIDC cooling
High-flow liquid circulation

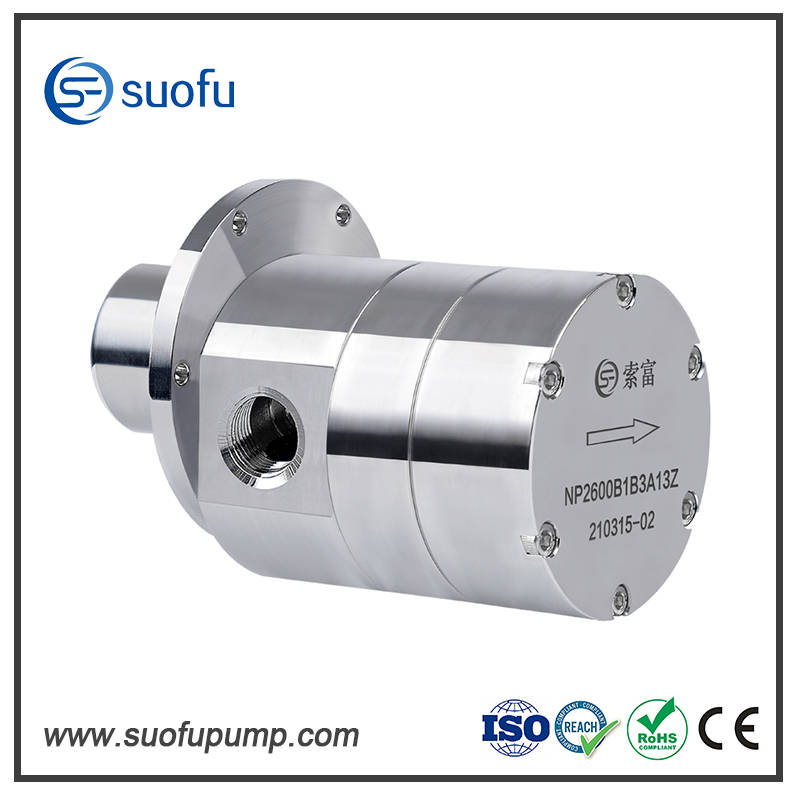

For systems requiring substantially greater circulation capacity, the NP2600 provides a higher-displacement option.
With a rated flow range reaching up to approximately 65 L/min, the NP2600 can be considered for larger industrial cooling systems where the required operating point falls within its performance envelope.
Selecting the pump should follow the actual system operating conditions rather than the model number alone.
Determine the actual cooling flow required by the system.
Consider:
Normal operating flow
Minimum flow
Maximum flow
Startup conditions
Flow-control requirements
If variable flow is required, confirm that the selected motor and controller can provide the necessary speed range.
Determine the pressure that the pump must overcome.
Consider:
Pump differential pressure = system pressure losses + required pressure margin
Include:
Piping
Heat exchangers
Filters
Valves
Cooling channels
Fittings
Other restrictions
Then verify the operating point against the pump's performance curve.
Provide the pump manufacturer with the exact medium.
Do not select materials based only on whether the fluid is called a “refrigerant.”
Confirm:
Chemical compatibility
Seal compatibility
Material compatibility
Viscosity
Temperature
Pressure
Gas-liquid conditions
Specify both:
Fluid temperature + ambient temperature
Also consider:
Startup temperature
Maximum operating temperature
Shutdown conditions
Thermal cycling
For low-temperature refrigeration systems, material and seal selection can be just as important as the pump body itself.
The same pump body may be configured with different motor options.
Depending on the system, control methods may include:
DC speed control
0–5 V analog control
PWM
AC motor
Variable-frequency drive
Servo control
The selected motor should provide sufficient torque across the required operating range.
The pump inlet should be designed to avoid unnecessary pressure loss.
Check:
Inlet pipe diameter
Pipe length
Filter resistance
Fluid velocity
Inlet pressure
Connection size
Installation orientation
Some NP Series configurations recommend a 400-mesh inlet filter under appropriate operating conditions. The exact filtration requirement should be confirmed according to the selected model and medium.
For compressor cooling, the choice of pump technology should be based on the system's actual requirements.
Requirement | Micro Magnetic Gear Pump | Conventional Pump |
|---|---|---|
Compact installation | Excellent for many applications | Depends on design |
Dynamic shaft seal | Not required in magnetic-drive structure | Often required |
Precise displacement-based flow | Strong advantage | Depends on pump type |
Low-flow control | Well suited | Application dependent |
Variable-speed operation | Available with suitable motor | Available on many designs |
Refrigerant compatibility | Configuration dependent | Configuration dependent |
High-pressure compact delivery | Suitable for selected models | Depends on pump type |
OEM customization | Available | Depends on supplier |
The important point is that magnetic-drive gear pumps are not automatically the best choice for every cooling system. They become particularly attractive when the application combines compact installation, controlled positive-displacement flow, fluid containment, and customized motor/control requirements.
Magnetic-bearing compressors eliminate conventional mechanical bearings in the rotating assembly, allowing highly efficient operation in many refrigeration applications.
In these systems, an auxiliary pump may be integrated into the thermal management architecture to support refrigerant or cooling-fluid circulation.
Suitable pump selection depends on the specific compressor architecture and cooling circuit.
Air-bearing compressors also require careful thermal management.
Where a liquid circulation loop is used, a micro magnetic gear pump can provide controlled fluid delivery while allowing the pump to be integrated into compact equipment.
As AI and high-performance computing increase data center heat loads, cooling systems increasingly require precise and reliable fluid circulation.
Micro magnetic gear pumps can be considered for:
Chiller systems
Precision cooling loops
Refrigeration subsystems
Compact liquid cooling equipment
Auxiliary thermal-management circuits
The appropriate pump depends on the required flow, pressure, coolant, and system architecture.
Industrial refrigeration equipment may require continuous circulation under demanding pressure and temperature conditions.
Applications can include:
Refrigeration units
Process cooling
Precision temperature control
Industrial chillers
Specialized cooling equipment
The broad NP Series flow range allows engineers to select different pump sizes according to system capacity.
For OEM applications, the pump is often only one part of a larger system.
The pump needs to match the:
Compressor
Cooling circuit
Refrigerant
Motor
Controller
Heat exchanger
Piping
Installation structure
Suofu supports customized micro magnetic gear pump configurations involving parameters such as:
Flow rate
Differential pressure
Motor power
Voltage
Speed
Speed-control method
Port configuration
Materials
Installation dimensions
This allows the pump to be developed around the actual system operating point, rather than forcing an existing standard pump into an unsuitable application.
For the official cooling solution, Suofu currently lists applications involving water, water/glycol mixtures, dielectric fluids, refrigerants and other cooling media, with configuration-dependent flow, pressure, temperature and viscosity ranges.
To shorten the engineering selection process, prepare the following information:
Parameter | Information Needed |
|---|---|
Medium | Refrigerant or cooling fluid |
Flow | Minimum / normal / maximum flow |
Differential pressure | Required ΔP |
Temperature | Minimum / normal / maximum |
Viscosity | Operating viscosity |
Inlet condition | Inlet pressure / vacuum condition |
Motor | DC / AC / servo / VFD |
Control | Voltage / 0–5 V / PWM / VFD / other |
Installation | Dimensions and mounting requirements |
Connection | Port type and size |
Materials | Compatibility requirements |
Operating mode | Continuous / intermittent / variable speed |
Environment | Ambient temperature and installation conditions |
The more complete these parameters are, the more accurately the pump can be matched to the system.
A micro magnetic gear pump is a compact positive-displacement pump that uses magnetic coupling to transmit motor torque to the gear mechanism without a conventional dynamic shaft seal penetrating the fluid chamber. It is commonly considered for applications requiring compact size, controlled flow, and reduced leakage risk.
Yes, selected configurations can be considered for refrigerant circulation applications. However, compatibility depends on the specific refrigerant, temperature, pressure, viscosity, seals, and wetted materials. The exact pump configuration should be validated before use.
Yes. Depending on system architecture, they can support refrigerant circulation, compressor cooling, or other thermal-management circuits in magnetic-bearing and air-bearing compressor systems.
There is no single model suitable for every compressor cooling system. Smaller systems may consider models such as NP070 or NP190, while higher-flow applications may require NP350, NP1700, or NP2600. Final selection should be based on the actual flow, differential pressure, medium, temperature, and performance curve.
The NP Series covers a broad range of applications. Depending on the model, published rated flow ranges extend from approximately 0–1.5 L/min to 0–65 L/min.
Yes. Depending on the selected motor configuration, Suofu NP Series pumps can be equipped with different speed-control options, including analog control, PWM, DC speed control, AC/VFD and servo configurations.
Start with five key parameters:
Flow → Differential Pressure → Medium → Temperature → Motor/Control
Then verify material compatibility, installation requirements, pump performance curves and the complete system operating point.
A micro magnetic gear pump can provide a compact and controllable fluid-delivery solution for compressor cooling, refrigeration and precision thermal-management systems.
For magnetic-bearing and air-bearing compressors, the most important selection criteria are not simply pump size or nominal flow. Engineers should evaluate the complete operating point, including flow rate, differential pressure, refrigerant compatibility, temperature, viscosity, motor configuration, control method and installation conditions.
Suofu's NP Series provides multiple displacement and flow configurations, from small-flow precision cooling to higher-flow industrial refrigeration. The series can also be customized for specific motor, control, material and installation requirements.
If you are developing a compressor cooling system and need help selecting a micro magnetic gear pump, contact Suofu with your required flow, differential pressure, medium and temperature. Our engineering team can recommend a suitable pump configuration based on your operating conditions.
