Product Launch | Suofu’s Self-Developed Micro Pump Family Welcomes Its Smallest Member—NP010 High-Pressure Micro Gear Pump

The NP series of micro magnetic gear pump family welcomes its newest and smallest member—the NP010 High-Pressure Micro Gear Pump. This marks a key technological breakthrough for Suofu in the field of micro-liter grade domestic micro pumps. This product further enriches the NP series product matrix, achieving comprehensive international substitution​ in core areas of high-end equipment such as life sciences, medical diagnostics, pharmaceutical & chemical industries, new energy, and aerospace, providing independent, controllable, high-performance, and cost-effective core fluid handling solutions for high-end equipment.

01. New Product Introduction: NP010

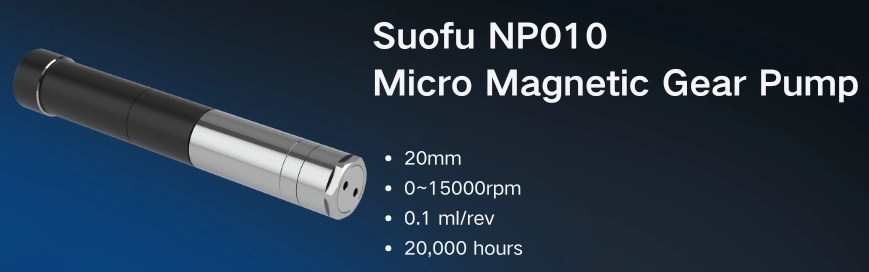

The Suofu NP010​ is a micro-liter flow micro internal gear pump. With a pump body diameter of only 20mm, the entire unit features a compact and delicate structure. Under the premise of extreme miniaturization, it perfectly balances five core performances: low flow rate, high precision, high pressure, low pulsation, and ultra-long lifespan.

Simultaneously, the NP010​ possesses significant characteristics such as zero leakage, low pulsation, wide temperature range, and strong self-priming capability, enabling stable micro-liter grade precise metering and medium transfer.

(Performance under 3000 rpm, continuous flow operation)                (Performance under 1000 rpm, continuous flow operation)

02. NP010 Materials and Parameters

1. Performance Parameters

2. Materials

Gears: Utilize high-hardness and high-strength hard alloy materials, ensuring lower wear and sustained precision over long-term operation.

Shaft: Made from high-hardness and wear-resistant zirconia ceramic, maintaining a low friction coefficient and chemical stability even with low-lubricity (water, solvents) or corrosive media.

Pump Body: Uses easily machinable stainless steel, enabling high-precision forming of complex flow channels and scalable manufacturing.

These three components work in synergy, forming the underlying technical foundation for the NP010's stable performance.

03. NP010 Product Highlights

The NP010 breaks through the industry bottleneck of "miniaturization necessitates performance compromise," featuring five key technological highlights:

1. Miniaturized Design for Compact Integration

With a pump body diameter of only 20mm, its small size and light weight make it suitable for portable devices​ and high-density integrated systems. It addresses the industry pain points of traditional pumps being too bulky and having limited installation options. It can be directly embedded into existing equipment layouts without significant structural modifications, slash enterprise replacement and costs. Its port threads are compatible with existing pipeline interfaces, and it supports various drive motors (DC brushless, stepper, servo, canned, etc.), enabling "plug-and-play" integration.

2. High-Precision Metering, Overcoming Technical Barriers

Achieves precise 0.1 ml/rev micro-liter flow transfer​ with high metering accuracy of ±0.1%. It solves the Chinese​ pump industry's bottleneck of "difficult micro-liter control,"  equal to international top-tier standards, and is suitable for applications with extremely high flow control requirements.

3. High Reliability & Long Life, Ensuring Continuous Operation

Service life exceeds 20,000 hours with clean media ( 20,000 hours under low-pressure conditions). Combined with medical-grade corrosion and wear-resistant materials, it ensures 7×24 continuous, stable operation​ with minimal maintenance.

4. High Pressure & Low Pulsation, Suitable for Complex Conditions

Handles pressure differentials up to 20 Bar, with excellent self-priming​ and gas-liquid mixed transport​ capabilities. It overcome complex work situation such as high-pressure cleaning and high-resistance pipeline transfer, improve system fault tolerance. Its operating temperature range of -20℃~60℃ provides wide temperature range adaptability for various industry environments. The inlet vacuum degree of >15 kPa(A) offers outstanding self-priming performance.

5. Multi-Scenario Adaptability + Customization, Solving Import Compatibility Issues

Applicable across diverse fields including medical diagnostics, analytical instruments, fuel cells, chemical/pharmaceutical, and aerospace. It supports multiple media types. Backed by Suofu's complete R&D and production system, the NP010 offers full-chain customization services. Interface specifications, pump body materials, drive motors, flow ranges, and pressure ratings can be tailored to different industry and equipment integration needs, with support throughout the process from design and prototyping to batch delivery.

04. Applications and Scope

Primarily applied in:

Life Sciences & Medical Diagnostics

In-vitrodiagnostics, biochemical analyzers, chemiluminescence immunoassay analyzers, nucleic acid extractors, liquid handling workstations, blood type analyzers, Gram stainers, analytical instruments, chromatographs, flow cytometers, sample preparation/pre-treatment, microchannel reactors, particle analysis, biotechnology, vacuum metering.

Pharmaceutical & Fine Chemical Industries

Pharmaceutical manufacturing, small-dose drug filling, dosing technology, fine chemicals, flow chemistry, adhesive dispensing, microscale coating transfer, chemical plants, R&D centers, laboratories, organic electronics, laser technology applications.

New Energy & Energy Storage

Fuel cell cooling & fluid metering, energy storage systems, lithium battery equipment, compact liquid cooling modules.

Aerospace & Special Equipment

Airborne micro-fluidic systems, aerospace technology support, special environment medium transfer, reliable operation under harsh conditions.

Mechanical Engineering & Industrial Support

Minimal quantity lubrication, silicone application technology, polyurethane grouting, coating technology, food technology, precision dispensing, compact fluidic system integration.

05. Outlook

The Suofu NP010 micro internal gear pump, with its comprehensive advantages in precision, pressure, lifespan, and integration, is becoming an indispensable key component in high-end equipment fluid systems, support Chinese​ high-end manufacturing advance to a higher level.

Shanghai Super Fluid Co., Ltd.

Shanghai Super Fluid Co., Ltd. (Suofu), has an R&D and sales center in Shanghai (Shanghai Suofu) and a production base in Sanming City, Fujian Province (Sanming Suofu). With its own R&D team and independent production factory, the company occupies a total area of 2000㎡, including a 1600㎡ production workshop and a 200㎡ warehouse. SUOFU is constructing a new plant covering 19 acres with a building area of 20,000 square meters. Sanming Suofu is recognized as a National High-Tech Enterprise​ and a Specialized, Refined, Distinctive, and Innovative (SRDI) Enterprise. Located in the Fujian Zhongguancun Science Park, the company has won the second prize in the Fujian Innovation and Entrepreneurship Competition and advanced to the national finals.

The company holds 29 patents​ and has participated in 25 national and provincial-level R&D projects.

Suofu Product Advantages:

• Special Gear Profile Design:​ Proprietary gear profile design provides excellent wear resistance andnear-pure rolling gear meshing.

• Special Cavity Profile Design:​ Adapts to operating conditions with wide-ranging outlet pressure variations, performing well under low pressure, high pressure, or short-term reversal.

• Pulsation-Free Outlet Pressure:​ High-precision part machining and structural design ensure smooth liquid delivery.

• One-Shot Injection Molded Gears:​ The working tooth surfaces of the gears are manufactured using high-precision one-shot injection molding without subsequent mechanical machining, ensuring gear working surface integrity.

• High-Precision Ceramic Shaft:​ High-precision ceramic shafts offer exceptional wear resistance and rigidity, ensuring reliable pump operation under abrasive liquid and high-pressure conditions.

• Capable of Long-Term Dry-Running Self-Priming:​ In applications requiring the pump's inlet vacuum to draw in the medium, the NP series products provide reliable performance.

• Multiple Motor Options Available:​ Options include AC explosion-proof, AC variable frequency, single-phase/three-phase AC, DC brushed, DC brushless, DC brushless with built-in driver, and shielded DC brushless motors with built-in driver.
