Maintaining a stable and repeatable flow becomes more difficult as the required liquid volume decreases. Small variations caused by pressure changes, fluid viscosity, pump pulsation or motor speed can significantly affect the performance of dosing, sampling, cooling and analytical systems.
A micro magnetic gear pump is designed to deliver controlled fluid volumes within a compact structure. Its positive-displacement operating principle, low-pulsation output and magnetic coupling make it particularly suitable for applications that require accurate low-flow liquid transfer.
From chemical dosing and laboratory instruments to compact cooling systems, medical equipment and automated production lines, micro gear pumps provide equipment manufacturers with a practical way to improve fluid control, reduce leakage risks and simplify system integration.

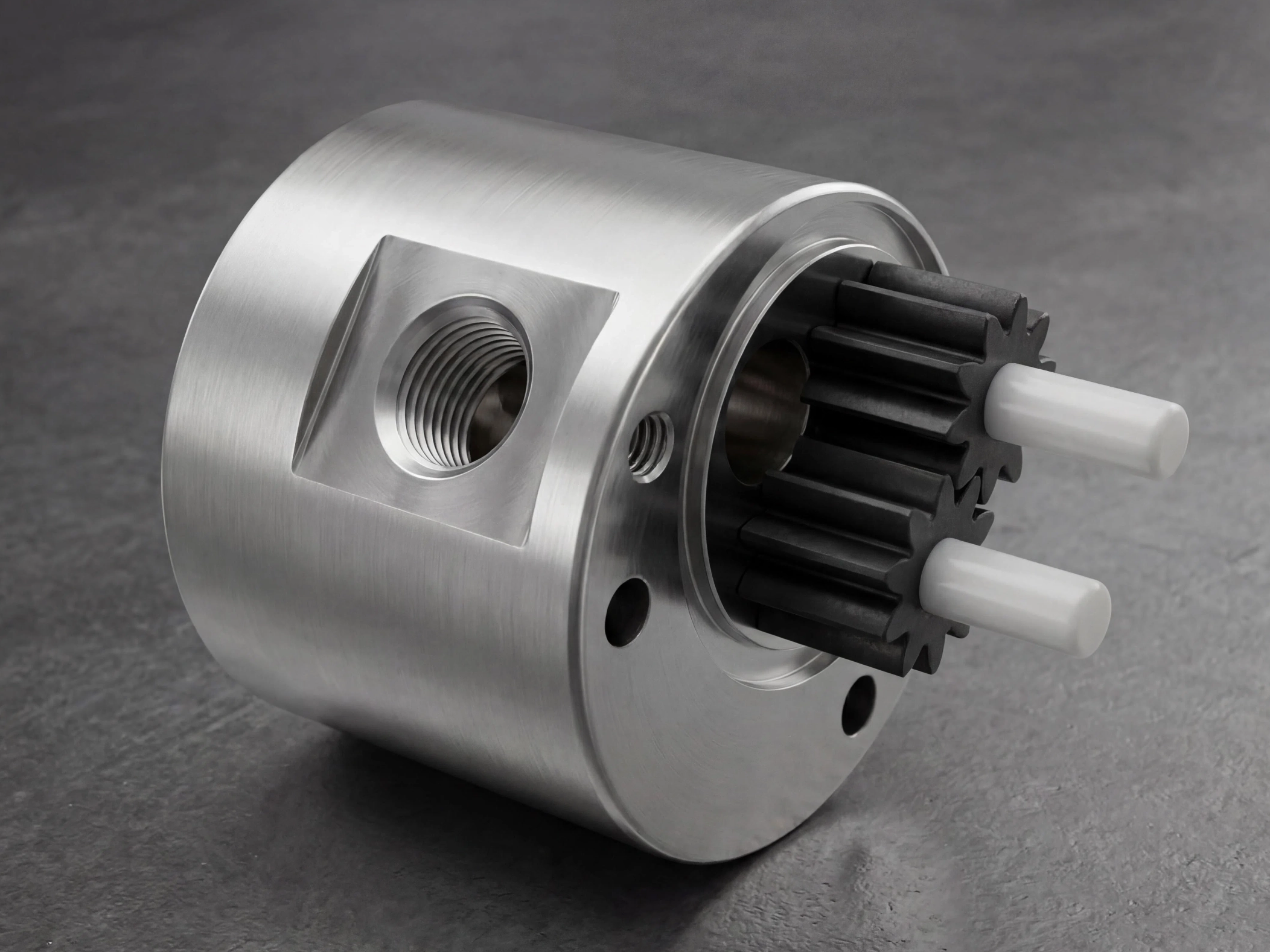

A micro magnetic gear pump is a compact positive-displacement pump that transfers liquid through the rotation of two precisely matched gears.
As the gears rotate, liquid enters the inlet side, is carried around the pump chamber between the gear teeth and housing, and is discharged through the outlet. Each revolution moves a relatively predictable volume of liquid.
The basic relationship can be expressed as:
Flow rate = pump displacement per revolution × rotational speed
The actual output may also be affected by:
Differential pressure
Liquid viscosity
Liquid temperature
Internal pump clearances
Motor speed stability
Inlet conditions
Fluid lubricity
Unlike a conventional directly driven pump with a rotating shaft passing through the pump housing, a magnetic drive transfers motor torque through a magnetic coupling. The pumped liquid remains separated from the motor side, eliminating the need for a traditional dynamic shaft seal.
This design reduces a common external leakage path and makes the pump suitable for applications involving valuable, sensitive, corrosive or contamination-sensitive liquids.
Low flow does not simply mean using a smaller pump. The lower the target flow rate, the more noticeable small fluctuations become.
A low-flow system may experience several problems:
Unstable output at reduced motor speed
Excessive pulsation during dosing
Flow changes caused by pressure variations
Inaccurate chemical addition
Poor repeatability between production cycles
Difficulty handling viscous liquids
Leakage from conventional shaft seals
Oversized pumps operating outside their efficient range
For example, a small variation that has little effect on a high-volume transfer process may produce a significant percentage error in a precision dosing or sampling application.
The pump must therefore provide not only a low nominal flow but also repeatable output under the actual pressure, temperature and viscosity conditions of the system.
A gear pump moves a defined volume of liquid during each revolution. When combined with an appropriately selected motor and speed controller, the flow rate can be adjusted by changing the rotational speed.
This proportional relationship makes micro gear pumps suitable for applications requiring:
Continuous fluid delivery
Repeatable batch dosing
Variable flow control
Proportional chemical addition
Process synchronization
Closed-loop control with a flow meter
Because the pump does not depend solely on centrifugal force, it can maintain more predictable delivery in low-flow systems with changing resistance.
Flow pulsation can affect coating thickness, spray quality, analytical measurements, dispensing accuracy and temperature stability.
Peristaltic, diaphragm and piston pumps may produce noticeable flow pulses because liquid is moved through repeated squeezing or reciprocating actions. Pulsation dampeners can be added, but they increase system size and complexity.
A micro gear pump provides continuous rotary displacement, producing a smoother and lower-pulsation flow. This is useful for processes such as:
Precision coating
Continuous reagent supply
Ink circulation
Cooling liquid circulation
Online sampling
Fine spraying
Chemical metering
Although no positive-displacement pump is completely free from pulsation, the continuous rotation of the gears helps reduce the large flow interruptions associated with many reciprocating pump designs.
Equipment manufacturers often need to install pumps inside compact cabinets, portable instruments or densely arranged production systems.
A miniature gear pump can be integrated into:
Laboratory analyzers
Medical instruments
Desktop dosing equipment
Compact chillers
Semiconductor equipment
Mobile cleaning systems
Battery testing equipment
Small pilot systems
Automated dispensing machines
Its compact structure can reduce the space required for mounting brackets, large pump chambers and additional pulsation-control components.
Traditional pumps may use a mechanical seal around the rotating drive shaft. Wear, chemical incompatibility or incorrect installation can eventually create a leakage point.
In a micro magnetic drive gear pump, torque is transmitted without a rotating shaft passing through the containment housing. The pump mainly relies on static seals rather than a continuously moving shaft seal.
This structure is valuable when transferring:
Chemical solutions
Reagents
Coolants
Oils
Fuels
Pharmaceutical liquids
High-value process fluids
Odorous or contamination-sensitive media
A magnetic drive should not be described as making the entire fluid system automatically leak-proof. Static O-rings, pump housing joints, tubes, valves and fittings must still be selected and assembled correctly.
Low-flow control becomes more difficult when the liquid is thicker than water. High viscosity increases suction resistance, pressure loss and motor torque requirements.
Centrifugal pumps generally become less effective as liquid viscosity increases. A micro gear pump uses positive displacement to carry liquid through the pump chamber, making it more suitable for many viscous-fluid applications.
Typical media may include:
Lubricating oil
Silicone oil
Hydraulic oil
Resin
Adhesive
Coating liquid
Syrup
Cosmetic ingredients
Chemical additives
However, viscosity should always be evaluated across the complete operating temperature range. A liquid that flows easily at room temperature may become significantly thicker during a cold start.
Many modern machines do not operate at one fixed flow rate. The pump may need to increase or decrease output according to temperature, production speed, chemical concentration or equipment load.
Depending on the motor and control configuration, a micro gear pump can support:
Fixed-speed operation
Variable DC voltage control
PWM speed control
Stepper motor positioning
Servo motor control
PLC-based control
Flow-meter feedback
Customized communication interfaces
Variable-speed control allows one pump platform to support multiple operating stages without relying entirely on bypass valves or frequent manual adjustment.
Accurate low-flow delivery helps reduce excessive chemical addition, product waste and cleaning requirements.
In a dosing application, supplying more liquid than required can affect formulation quality and increase raw material costs. In coating and spraying systems, unstable flow can create inconsistent film thickness and rejected products.
A properly selected micro gear pump helps deliver only the required volume, improving:
Material utilization
Batch consistency
Process repeatability
Product quality
Production efficiency
A centrifugal pump uses a rotating impeller to increase fluid velocity and pressure. It is commonly selected for high-flow circulation systems with relatively low resistance.
At very low flow rates, however, a centrifugal pump may operate far away from its preferred operating range. Flow can become sensitive to changes in system pressure, and throttling may be required to reduce output.
A micro gear pump is generally more suitable when the system requires:
Lower flow rates
Predictable displacement
Higher pressure at a compact size
Viscous-liquid handling
Direct speed-to-flow adjustment
A centrifugal pump may still be the better choice for high-volume cooling loops, water circulation and applications where precise metering is not required.
A peristaltic pump transfers liquid by compressing flexible tubing with rotating rollers. Because the liquid contacts only the tube, it is useful for sterile, contamination-sensitive or disposable fluid paths.
However, the repeated compression of the tubing can produce pulsating flow. The tubing is also a wear component and may require scheduled replacement.
A micro gear pump may be preferred when the application requires:
Smoother continuous output
Higher pressure capability
Longer unattended operation
No routine pump-tube replacement
Compact integration
Better control of viscous liquids
A peristaltic pump may remain preferable when single-use tubing, easy fluid-path replacement or complete isolation from pump components is the priority.
A diaphragm pump moves liquid through the reciprocating movement of a flexible diaphragm and normally uses inlet and outlet check valves.
It can be suitable for chemical dosing and fluids that require separation from the drive mechanism. However, the reciprocating action may create pulsation, and check-valve performance can be affected by particles, gas bubbles or crystallizing liquids.
A micro gear pump offers continuous rotary flow and does not rely on inlet and outlet check valves for every pumping cycle. It is often selected for continuous dosing, circulation and applications requiring smooth output.
A diaphragm pump may be more suitable when dry self-priming, strong suction lift or intermittent dosing is the main requirement.
Micro gear pumps can add controlled volumes of catalysts, additives, acids, alkalis, disinfectants and treatment chemicals into production processes.
Stable output helps maintain the required concentration and reduces overdosing.
Laboratory equipment often requires small, repeatable liquid volumes for sampling, reagent delivery, calibration and online analysis.
A compact pump can be integrated into automated instruments where installation space and flow repeatability are critical.
Micro gear pumps circulate coolant through laser systems, semiconductor equipment, battery test equipment, medical instruments and other compact thermal-management circuits.
Their ability to generate flow against narrow tubing, filters and cooling plates makes them useful in cooling loops with relatively high resistance.
A stable liquid supply is important for consistent spray droplets and coating coverage.
Micro gear pumps can supply paint, disinfectant, fragrance, lubricant, release agent and other liquids to spray nozzles under controlled conditions.
Unstable flow can create uneven coating thickness, interrupted adhesive beads or inconsistent ink delivery.
Low-pulsation delivery helps improve process consistency in precision coating, adhesive dispensing and industrial printing equipment.
Bearings, gears, chains and precision mechanical components may require small but continuous quantities of lubricant.
A micro gear pump can provide controlled oil delivery based on machine speed, operating time or load.
Medical and pharmaceutical systems may require precise delivery of reagents, cleaning fluids, formulations or process liquids.
Pump material compatibility, cleanability and regulatory requirements must be evaluated for each application.
Micro gear pumps may be used for edible oils, syrups, flavorings, additives and other food-processing liquids when suitable food-contact materials are selected.
The complete pump configuration should be evaluated for hygiene, cleaning and applicable food-contact requirements.
Define the minimum, normal and maximum flow rather than providing only one target value.
The selected pump should operate reliably across the required range without running continuously at an unsuitable minimum or maximum speed.
Calculate pressure loss through:
Tubing
Filters
Valves
Nozzles
Heat exchangers
Flow meters
Connectors
Elevation changes
Process equipment
The pump must deliver the required flow at the actual differential pressure, not only under free-flow conditions.
Provide viscosity values at the minimum, normal and maximum operating temperatures.
Higher viscosity can increase motor load and suction resistance, while very low viscosity can increase internal slip and reduce volumetric efficiency at higher pressure.
Confirm the compatibility of all wetted components, including:
Pump body
Gears
Shafts
Bearings
O-rings
Gaskets
Containment components
The fluid’s concentration, additives, temperature and exposure time should all be considered.
Positive-displacement pumps require an adequate liquid supply at the inlet.
Long narrow suction tubes, clogged filters, excessive suction lift or highly viscous liquid can reduce inlet pressure and cause unstable delivery or cavitation.
Where possible, use:
Short inlet tubing
Sufficient tube diameter
A flooded inlet
A clean upstream filter
Proper air removal
The motor should match the required speed, torque, power supply and control system.
Common options include brushed DC motors, brushless DC motors, stepper motors, servo motors and explosion-proof motor configurations.
Inform the supplier about:
Daily operating hours
Continuous or intermittent duty
Start-stop frequency
Ambient temperature
Fluid temperature
Expected maintenance interval
Required equipment lifetime
A pump selected for occasional laboratory use may not be suitable for continuous industrial operation.
Suofu specializes in the development and production of micro magnetic gear pumps for precision fluid transfer. Its NP series includes multiple displacement and flow configurations for dosing, sampling, spraying, circulation, cooling and industrial fluid-control applications.
Suofu can support customers with pump selection and customized flow-control configurations based on:
Required flow and pressure
Fluid viscosity
Operating temperature
Wetted material compatibility
Motor type and voltage
Installation dimensions
Port connections
Speed-control requirements
OEM and ODM integration
Rather than selecting a pump according to maximum flow alone, Suofu evaluates the complete operating condition to help equipment manufacturers identify a suitable pump displacement, motor and material configuration.
To receive a more accurate pump recommendation, provide the following information:
Selection Parameter | Information to Provide |
|---|---|
Liquid name | Complete fluid name and composition |
Viscosity | Value at minimum and maximum temperature |
Required flow | Minimum, rated and maximum flow |
Differential pressure | Normal and maximum operating pressure |
Temperature | Liquid and ambient temperature range |
Motor | Voltage, speed and preferred motor type |
Control | Fixed speed, PWM, stepper, servo or other control |
Materials | Special corrosion or food-contact requirements |
Installation | Available space, orientation and port direction |
Duty cycle | Continuous or intermittent operation |
Quantity | Prototype, pilot production and annual demand |
Yes. A small-displacement gear pump combined with accurate motor-speed control can provide controlled low-flow output. The achievable minimum stable flow depends on pump displacement, speed, pressure, viscosity and motor control resolution.
Micro gear pumps are commonly used for oils and other viscous liquids. However, the maximum suitable viscosity depends on pump size, inlet conditions, motor torque, speed and operating temperature.
The theoretical flow is proportional to rotational speed. Actual flow may differ because of internal slip, pressure, viscosity and manufacturing clearances. Testing under the real operating condition is recommended for precision applications.
A magnetic drive eliminates the conventional rotating shaft seal between the motor and pump chamber. Static seals may still be used in the pump housing and connections.
Dry-running capability depends on the pump model, materials, speed and duration. Buyers should not assume that every micro gear pump can operate dry continuously. The expected dry-running condition should be discussed during selection.
Suofu supports OEM, ODM and customized fluid-control projects, including adjustments to pump configuration, motor, materials, connection method and system integration according to application requirements.
Low-flow fluid transfer requires more than simply reducing the size or speed of a standard pump. The system must maintain stable output despite changes in pressure, viscosity, temperature and operating conditions.
A micro magnetic gear pump combines positive displacement, low-pulsation delivery, compact installation and reduced shaft-seal leakage risk. These characteristics make it suitable for precision dosing, sampling, cooling, spraying, lubrication, coating and many other low-flow applications.
Selecting the right pump requires a complete evaluation of flow, pressure, fluid properties, materials, inlet conditions, motor control and service life.
