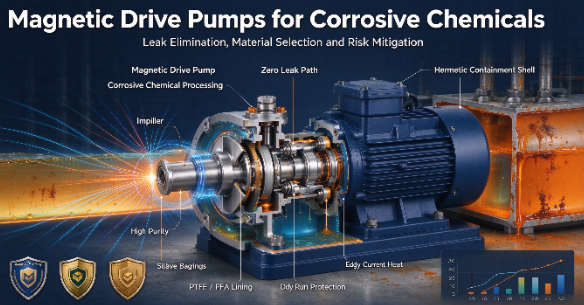

Corrosive chemical processing carries extreme stakes. Unplanned downtime, environmental hazards, and catastrophic safety risks usually trace back to one single point of failure: the pump seal. Traditional mechanical seals remain inherently vulnerable to aggressive fluids. They account for the vast majority of chemical pump breakdowns across industrial facilities. This constant degradation leads to hidden maintenance burdens, severe product contamination, and strict regulatory fines from agencies like the EPA and OSHA. You need a definitive engineering solution to handle these aggressive media safely. Enter the Magnetic Drive Pump. It stands as the industry standard for hazardous, toxic, and high-purity fluid transfer. We must shift the operational evaluation immediately. Stop asking how to fix leaks. Start asking how to eliminate the leak path entirely. This guide explores the mechanics, mitigations, and application criteria for sealless technology.
Elimination of Mechanical Seals: Magnetic drive pumps remove the dynamic shaft seal, neutralizing the component responsible for 70–80% of chemical pump failures.
Absolute Fluid Containment: The sealless, hermetically sealed design ensures zero leakage, meeting strict EPA and OSHA regulatory compliance for toxic, volatile, and highly corrosive fluids.
Contamination-Free Transfer: By eliminating the need for seal flush or barrier fluids, magnetic drive pumps protect high-purity chemicals from external contamination.
Application Limitations: They require clean fluids; the presence of heavy solids or abrasives necessitates specific mitigations or alternative pump technologies.
Table of Contents
Mechanical seal pumps and magnetic drive pumps differ primarily in their sealing methods, leakage risks, and maintenance requirements. Mechanical seal pumps use dynamic shaft seals, while magnetic drive pumps transfer power through a sealed containment shell, reducing the risk of chemical leakage.
Mechanical seals rely on rotating and stationary seal faces to prevent leakage. When handling corrosive or crystallizing chemicals, seal components may deteriorate due to chemical attack, friction, or insufficient lubrication.
Common failure risks include:
Chemical Corrosion: Aggressive fluids damage seal faces and elastomers.
Crystallization: Chemical deposits cause abrasion and premature wear.
Dry Running: Insufficient lubrication leads to overheating and seal damage.
Maintenance Costs: Seal replacement and leakage management increase downtime.
These challenges make proper seal material selection and maintenance essential for chemical processing applications.
Magnetic drive pumps eliminate dynamic shaft seals by transferring motor power through magnetic coupling. A stationary containment shell separates the process liquid from the external motor, reducing leakage risks and simplifying sealing requirements.

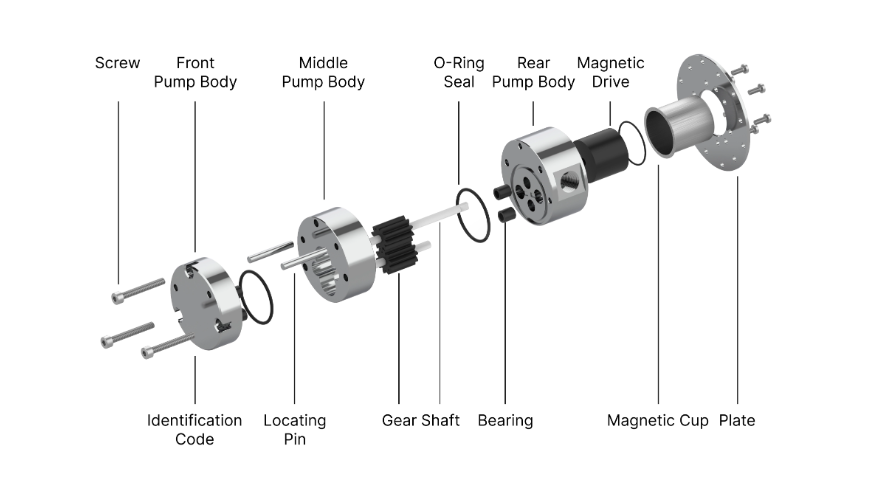

Main Components and Functions
Component | Function |
|---|---|
Outer Drive Magnet | Transfers rotational force from the motor |
Containment Shell | Creates a sealed barrier around the process liquid |
Inner Driven Magnet | Receives magnetic torque |
Impeller | Moves liquid through the pump |
Internal Bearings | Support rotating components |
This sealless design is particularly suitable for hazardous, corrosive, and high-purity liquid handling, although proper operation and maintenance remain necessary.
Comparison Factor | Mechanical Seal Pump | Magnetic Drive Pump |
|---|---|---|
Sealing Method | Dynamic mechanical seal | Static containment shell |
Leakage Risk | Possible seal leakage | Reduced shaft leakage risk |
Maintenance | Periodic seal maintenance | Internal bearing and shell inspections |
Corrosive Chemicals | Requires compatible sealing materials | Well-suited with compatible materials |
Initial Cost | Generally lower | Generally higher |
Main Limitation | Seal wear and leakage | Dry-running sensitivity |
Material compatibility is essential for magnetic drive pump reliability. Non-metallic materials, such as PTFE, PFA, and ETFE, provide excellent chemical resistance for corrosive acids and alkalis. Metallic containment shells, including Hastelloy C-276 and titanium, are suitable for selected high-pressure and high-temperature applications. However, metallic shells can generate eddy current heat, while non-conductive shells help reduce energy losses and fluid overheating.
Containment Shell Material | Chemical Resistance | Temperature Limit | Eddy Current Heat Generation | Best Application |
|---|---|---|---|---|
PTFE / PFA Lined | Excellent (Broad spectrum) | Up to 250°F (120°C) | None | Highly corrosive acids, bases, high-purity chemicals |
Hastelloy C-276 | Good (Specific to alloys) | Up to 600°F (315°C) | High | High-temperature, high-pressure aggressive fluids |
Alumina Ceramic | Excellent | Up to 300°F (150°C) | None | Applications requiring zero heat generation and high wear resistance |
Corrosive chemicals often possess high specific gravity. Concentrated sulfuric acid, for example, is nearly twice as dense as water. This high density requires precise motor sizing. It also requires exceptional magnetic coupling strength. The magnets must possess enough torque to spin the heavy fluid. If the fluid density exceeds the magnetic strength, the pump will decouple. Proper sizing prevents this failure during operation. Engineers must calculate the required horsepower at the end of the pump curve and select a magnetic coupling that exceeds that value.
Viscosity limits dictate application success. A Magnetic Drive Pump handles low-to-medium viscosity liquids best. Thick fluids strain the magnetic coupling. They also struggle to flow through the tight internal clearances required for bearing lubrication. We generally restrict sealless centrifugal pumps to fluids under 200 centipoise. Beyond this threshold, shear forces increase dramatically. The magnetic bond cannot overcome the resistance of highly viscous sludge, resins, or syrups.
Extreme processing environments demand thermal stability. High-temperature containment shells maintain structural integrity under intense heat. Specialized samarium-cobalt magnets replace standard neodymium magnets in these applications. Neodymium loses its magnetic strength at high temperatures, leading to premature decoupling. Samarium-cobalt maintains powerful magnetic flux even when pumping fluids exceeding 300 degrees Fahrenheit. You must match the magnet material to the maximum expected fluid temperature to ensure continuous operation.
Sealless magnetic drive pumps can help reduce contamination risks by eliminating the need for a dynamic shaft seal and its associated barrier or flush fluid arrangements.
For high-purity chemical applications, material selection is equally important. Daikin's high-purity NEOFLON PFA materials include grades developed for semiconductor-related applications where low particle and ion contamination is important.
However, a sealless pump does not automatically guarantee contamination-free operation. Surface cleanliness, wetted material selection, internal bearing wear, manufacturing quality, and cleaning procedures must also meet the requirements of the intended process.
Magnetic drive pumps can reduce seal-related maintenance and leakage management requirements by eliminating the conventional rotating shaft seal.
The U.S. EPA's Leak Detection and Repair (LDAR) Best Practices Guide identifies pumps, valves, and other process equipment as potential sources of fugitive emissions in chemical and petroleum processing facilities.
For facilities handling hazardous or volatile liquids, reducing equipment leakage can contribute to safer operation and lower maintenance-related costs.
However, the total lifecycle cost advantage of a magnetic drive pump depends on purchase price, energy consumption, fluid compatibility, maintenance frequency, and operating reliability. Facilities must also evaluate their applicable environmental compliance obligations.
Dry running is a major risk for magnetic drive pumps because internal bearings often depend on the pumped liquid for cooling and lubrication. Operating without sufficient liquid can cause overheating and bearing damage. Power monitoring, temperature sensors, and compatible bearing materials help reduce this risk and protect pump components.
Solid particles can damage the internal bearings and containment shells of magnetic drive pumps. Ferrous particles may also accumulate around magnetic components. Suction strainers, magnetic filters, and suitable flushing arrangements can help protect the pump. For high-solids or abrasive slurries, alternative pump technologies may be more appropriate.
Magnetic decoupling occurs when the magnetic coupling loses synchronization, causing the motor-side magnet to rotate without properly driving the impeller. Excessive torque demand, unexpected fluid viscosity, or mechanical resistance can trigger this condition. Proper coupling selection, operating condition monitoring, and overload protection help prevent overheating and internal damage.open discharge valves slowly to prevent sudden torque spikes during startup.
Performance Metric | Mechanical Seal Pump | Magnetic Drive Pump |
|---|---|---|
Leakage Risk | High (Dynamic seal faces wear continuously over time) | Zero (Hermetically sealed containment shell provides absolute barrier) |
Maintenance Frequency | High (Requires regular seal replacement and flush system monitoring) | Low (No dynamic seals to replace; fewer wearing components) |
Fluid Purity | Vulnerable to barrier fluid and atmospheric contamination | Absolute isolation guarantees high purity and zero contamination |
Solids Handling capability | Moderate (Can handle some particulates with proper seal flush plans) | Low (Requires clean fluids or strict upstream filtration) |
Dry Run Tolerance | Moderate (Double seals with barrier fluids tolerate dry running) | Low (Requires fluid for lubrication unless specialized bearings are used) |
A sealless design is the definitive choice when the consequences of a leak exceed standard equipment considerations. Safety, environmental impact, and product contamination demand absolute containment. Traditional seals will eventually fail. Sealless technology removes the failure point entirely. Specify this technology for toxic, highly corrosive, high-purity, or volatile fluids. Ensure the fluid remains relatively clean and continuous flow is guaranteed.
Take these actionable steps to upgrade your fluid transfer systems:
Audit your current mechanical seal failure rates across all chemical transfer lines to identify problematic installations that drain maintenance resources.
Gather precise fluid data including chemical composition, specific gravity, temperature, and solids content for accurate pump and magnet sizing.
Install power monitors on existing systems to track load sensing and prevent catastrophic dry running events.
Consult with a pump application engineer to verify magnetic coupling torque ratings for your specific application before finalizing procurement.
A: Standard models cannot run dry because they rely on the process fluid to lubricate and cool the internal bearings. Without fluid, friction causes rapid overheating and catastrophic failure. However, specific engineered materials, like diamond-coated silicon carbide, combined with electronic power monitors, can provide effective dry-run protection for short durations.
A: These pumps are optimal for low-to-medium viscosity fluids. The general threshold is typically around 150-200 cP. Beyond this point, operational efficiency drops significantly. Thick fluids create immense shear resistance, which increases the risk of magnetic decoupling and prevents proper lubrication of the internal sleeve bearings.
A: Decoupling happens when the motor turns but the impeller stops. Primary causes include excessive fluid density, sudden spikes in system pressure, a blocked discharge line, or motor torque exceeding the magnetic coupling strength. When the resistance of the fluid overcomes the magnetic bond, the magnets slip and decouple.
A: Standard centrifugal models are not self-priming. They require a flooded suction to operate correctly and prevent dry running. The pump casing must be full of fluid before starting the motor. However, specific self-priming models with specialized volute designs are available for applications requiring suction lift from underground tanks.
A: You must install suction strainers or clean-flush systems to protect the tight internal clearances. We strongly warn against using them for heavy slurries. Abrasive particles will grind against the containment shell and destroy the bearings. If solids exceed 1-2% by volume, consider alternative technologies like diaphragm pumps.
A: The Mean Time Between Failures (MTBF) is significantly longer in corrosive applications. The complete lack of wearing seal faces eliminates the most common point of failure. As long as the pump operates within its design parameters and avoids dry running, it will drastically outlast a traditional mechanical seal pump.
A: Yes. Their sealless design eliminates the need for barrier fluids or seal flushes. This makes them completely leak-proof and ideal for preventing external contamination. They isolate the chemical entirely within the wet end, making them the standard choice for semiconductor manufacturing and high-purity pharmaceutical applications.
