In industries handling corrosive, toxic, highly volatile, or high-value fluids, mechanical seal failures are not just maintenance inconveniences. They are severe safety hazards, contamination risks, and primary drivers of unplanned downtime. When pumping aggressive chemicals or high-purity pharmaceutical ingredients, a compromised seal immediately threatens personnel safety and environmental compliance. While transitioning to sealless technology solves the mechanical seal vulnerability, off-the-shelf procurement often leads to misapplied hydraulics, material incompatibility, and catastrophic decoupling. Securing a leak-free, compliant fluid transfer system requires moving beyond transactional purchasing. You must partner with a reliable manufacturer capable of providing application-specific engineering, rigorous testing, and lifecycle support. We will examine the operational realities of hazardous fluid transfer, the core engineering advantages of sealless technology, and the evaluation dimensions for selecting a manufacturing partner.
Risk Mitigation Over Initial Cost: The true value of a magnetic drive pump lies in eliminating hazardous leaks through a simplified architecture with fewer wear parts and minimized maintenance downtime.
Engineering Match is Non-Negotiable: High magnetic coupling efficiency and precise material selection (e.g., ETFE, PFA, or specialized alloys) require direct manufacturer expertise to match specific fluid gravities, viscosities, and system curves.
Compliance and Traceability: Reliable manufacturers provide certified testing and documentation (e.g., API 685, ISO standards, FDA/EHEDG) necessary for regulatory compliance in chemical, pharmaceutical, food processing, and water treatment applications.
Lifecycle Support Dictates ROI: A strategic OEM partnership ensures access to proprietary dry-run protection technologies, predictive maintenance data, and rapid localized support.
Table of Contents
Mechanical seal pumps can incur significant maintenance and operating costs when handling corrosive, abrasive, or crystallizing fluids. Seal wear, leakage, and complex support systems increase maintenance requirements and production downtime. Hazardous fluid leaks may also create environmental, safety, and product contamination risks, making total lifecycle costs an important consideration.
Sealless pump technology aims to minimize leakage, improve operational safety, and reduce maintenance requirements. Successful implementation depends on proper material compatibility, hydraulic performance, and system design. Evaluating NPSH, flow rate, pressure, and fluid properties helps prevent cavitation, maintain reliable operation, and ensure long-term equipment performance.
Synchronous magnetic couplings transmit torque without a physical shaft penetrating the pump casing. An outer magnet ring connects directly to the motor shaft, while an inner magnet ring attaches to the pump impeller. A stationary containment shell separates these two magnetic assemblies, creating a hermetically sealed fluid boundary. This design inherently reduces the number of moving parts and eliminates the dynamic leak path entirely. High magnetic coupling efficiency drives consistent operational outcomes for your facility. It ensures stable flow rates and significantly reduces overall energy consumption by minimizing mechanical friction.
Efficient coupling also prevents magnetic decoupling under heavy operational loads or sudden system upsets. Manufacturers utilize advanced rare-earth magnets to meet the demands of heavy industrial applications. Neodymium Iron Boron (NdFeB) magnets offer exceptional magnetic strength for standard temperature ranges, providing high torque transmission in a compact footprint. Samarium Cobalt (SmCo) magnets excel in high-temperature environments, resisting demagnetization under extreme heat where standard magnets would fail. These powerful magnetic arrays provide the necessary torque for handling high-specific-gravity fluids. A well-engineered Magnetic Drive Pump maximizes these efficiencies to deliver reliable, long-term performance.
Pump material selection is essential for chemical compatibility, corrosion resistance, and long-term reliability. ETFE- and PFA-lined pumps are suitable for many aggressive acids and chemicals, while Hastelloy C-276, titanium, and Alloy 20 serve demanding high-temperature or corrosive applications. Polished stainless steel is commonly used in hygienic processing. Selecting compatible wetted materials, containment shells, and bearings helps prevent premature wear, contamination, and equipment failure.
Professional magnetic drive pump manufacturers should evaluate the complete pumping system rather than selecting equipment based only on flow rate and discharge head.
Important considerations include the system curve, Best Efficiency Point (BEP), Net Positive Suction Head Available (NPSHa), Net Positive Suction Head Required (NPSHr), fluid viscosity, specific gravity, and operating temperature.
The U.S. Department of Energy's pump system guidance provides technical resources on pump selection, system optimization, operating efficiency, and lifecycle cost management.
A reliable manufacturer should provide documented performance curves, appropriate material recommendations, and engineering support to help minimize cavitation, excessive energy consumption, and magnetic coupling overload.
A reliable magnetic drive pump manufacturer should provide documented quality control procedures, material traceability, performance testing, and appropriate manufacturing records.
API Standard 685, listed in the American Petroleum Institute's official standards catalog, establishes requirements for sealless centrifugal pumps used in petroleum, petrochemical, and gas industry services.
Where API 685 is specified, buyers should verify that the proposed pump model meets the applicable requirements and that the manufacturer can provide supporting inspection and testing documentation.
ISO 9001 certification can support quality management evaluation, while additional sanitary or hygienic requirements should be assessed separately for food and pharmaceutical applications.
Reliable after-sales support helps minimize pump downtime and maintenance costs. Manufacturers should provide accessible spare parts, including bearings, O-rings, and containment shells, along with technical assistance and maintenance guidance. Local service availability, operator training, and preventive maintenance support improve equipment reliability and long-term operational efficiency.

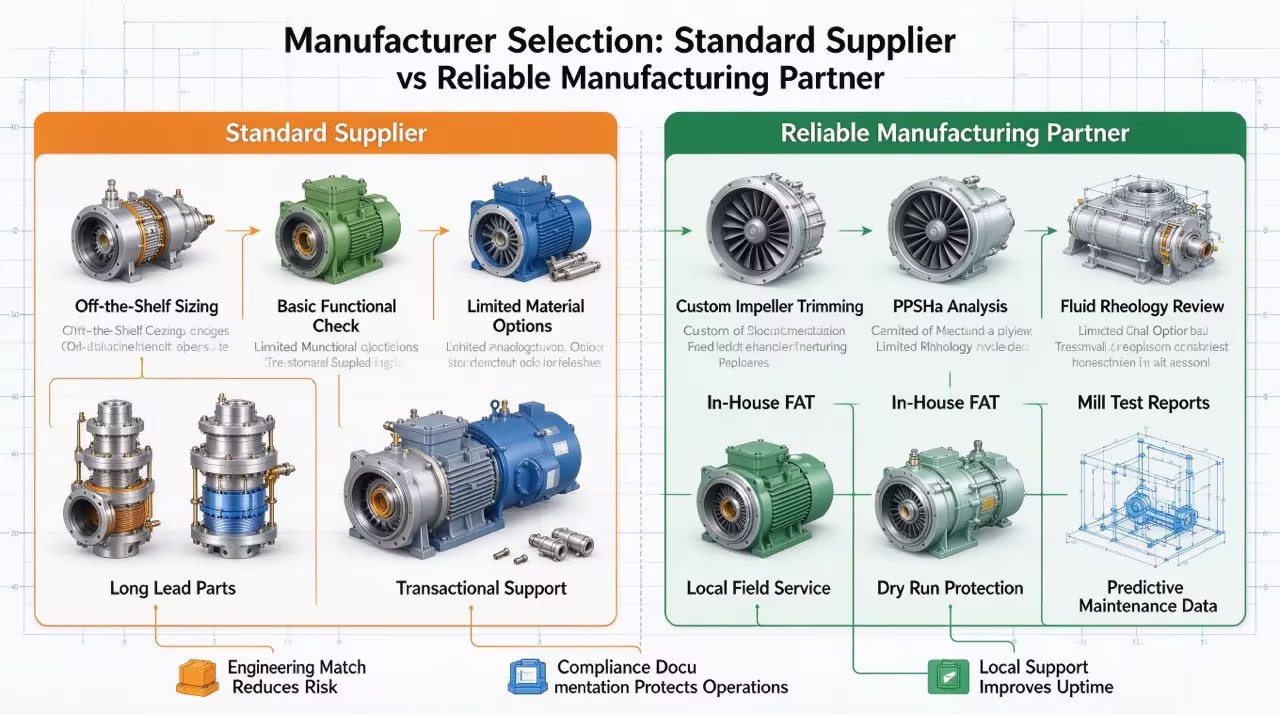

Evaluation Dimension | Standard Supplier | Reliable Manufacturer Partner |
|---|---|---|
Application Engineering | Off-the-shelf sizing based on basic flow and head data | Custom impeller trimming, NPSHa analysis, fluid rheology mapping |
Quality Assurance | Basic functional checks and visual inspections | In-house FAT, API 685/EHEDG compliance, Mill Test Reports |
Aftermarket Support | Transactional parts sales with long lead times | Localized field service, predictive maintenance data, team training |
Material Selection | Limited standard materials (e.g., basic stainless steel) | Advanced alloys (Hastelloy, Titanium) and specialized fluoropolymers |
Integrating a Magnetic Drive Pump fundamentally changes how your maintenance department allocates its daily labor hours. Sealless technology eliminates complex seal flush plans entirely from your process infrastructure. You no longer need to monitor barrier fluid levels, check nitrogen blanket pressures, or inspect heat exchangers associated with Plan 53 or Plan 54 setups. This dramatically reduces the daily operational burden on your maintenance staff, allowing them to focus on proactive plant optimization rather than reactive leak management. The physical footprint of the pump skid also shrinks, freeing up valuable floor space in congested process areas.
The simplified design requires a much lower spare parts inventory compared to mechanically sealed units. With fewer overall components, you tie up less warehouse space and reduce administrative tracking for consumable parts. Routine maintenance requirements drop significantly. You eliminate the specialized labor previously required for delicate mechanical seal alignments, face lapping, and barrier fluid replacements. Maintenance teams simply monitor motor loads, vibration levels, and bearing wear during scheduled turnarounds, streamlining the entire asset management lifecycle.
Sealless pumps can improve Mean Time Between Failures (MTBF) by eliminating mechanical seal wear and reducing leakage-related failures. Their magnetic coupling design helps minimize maintenance, unplanned downtime, and contamination risks. In chemical, pharmaceutical, and food processing applications, improved fluid containment supports product purity, operational safety, and consistent production efficiency.
Compile comprehensive fluid data sheets, including viscosity, specific gravity, vapor pressure, and temperature profiles across all operating conditions.
Audit your current fluid transfer systems to identify high-risk mechanical seals handling hazardous, toxic, or high-value chemicals.
Initiate a technical consultation or request a Front-End Engineering Design (FEED) review with shortlisted sealless pump manufacturers.
Demand documented proof of factory acceptance testing, performance curves, and material traceability before finalizing any procurement decisions.
A: Magnetic coupling efficiency dictates how effectively torque transfers from the motor to the impeller without a physical shaft. High efficiency ensures consistent flow rates and head pressure. It minimizes energy loss and prevents the inner and outer magnets from decoupling during heavy operational loads or unexpected process upsets.
A: They eliminate mechanical seals, providing absolute leak-free operation. This containment is mandatory for handling hazardous, corrosive, toxic, and high-purity fluids. It protects personnel from chemical exposure, prevents environmental contamination, and ensures product purity by eliminating the risk of external contaminants entering the fluid stream.
A: Standard models cannot run dry, as they rely on the pumped fluid to lubricate internal bearings and cool the containment shell. Dry running causes rapid damage, especially with volatile solvents. However, reliable manufacturers offer specialized dry-run protection technologies, such as advanced silicon carbide bearings and integrated power monitors.
A: They require significantly less routine maintenance. The sealless design eliminates wear-prone mechanical seals and complex seal support systems. With fewer overall moving parts, facilities experience reduced maintenance downtime, lower spare parts inventory requirements, and a much longer Mean Time Between Failures (MTBF).
A: Decoupling occurs when the torque required to turn the impeller exceeds the magnetic coupling's strength. This is typically caused by unexpected spikes in fluid viscosity or specific gravity, system blockages, closed discharge valves, or operating the pump far outside its designed performance curve.
A: Yes, when engineered correctly. Manufacturers use specialized Samarium Cobalt magnets that resist demagnetization at high temperatures. They also utilize robust metallic containment shells and high-temperature alloys to safely handle extreme-heat environments, such as hot hydrocarbon processing, without compromising fluid containment.
