Have you ever wondered how pumps can operate without leaks? Magnetic drive pumps solve this challenge with innovative technology.
A magnetic drive pump uses magnetic coupling to transfer power without direct contact, eliminating seal leaks. This makes them vital in many industries.
In this post, you’ll learn what magnetic drive pumps are, how they work, and why they matter in chemical, pharmaceutical, and other fields.
Magnetic drive pumps use magnetic coupling to transfer torque from the motor to the pump impeller without a direct mechanical connection. This coupling consists of two sets of permanent magnets: one set is attached to the motor shaft outside the pump casing (drive magnet), and the other set is fixed to the impeller inside the sealed pump chamber (driven magnet).
The magnets are separated by a containment shell, which acts as a barrier preventing fluid leakage. When the motor turns the drive magnet, its magnetic field causes the driven magnet — and thus the impeller — to rotate in unison. This non-contact transfer of energy eliminates the need for mechanical seals, which are common leak points in conventional pumps.
A typical magnetic drive pump includes the following key components:
Drive magnet assembly: Located outside the pump housing, connected to the motor shaft.
Driven magnet assembly: Attached to the impeller inside the fluid chamber.
Containment shell: A corrosion-resistant barrier separating the magnets and fluid, preventing leaks.
Impeller: The rotating part that moves fluid by centrifugal force.
Pump casing: Houses the impeller and fluid, designed for corrosion resistance.
Bearings and bushings: Support the impeller shaft, ensuring smooth rotation.
Motor: Provides the rotational power to the drive magnet.
This design ensures a hermetically sealed fluid path, improving safety and reliability by eliminating leakage risks.
Conventional pumps typically use a direct shaft connection from the motor to the impeller, requiring mechanical seals to prevent fluid leakage along the rotating shaft. These seals are prone to wear, leakage, and require regular maintenance.
In contrast, magnetic drive pumps:
Eliminate mechanical seals, reducing leakage risk.
Use magnetic forces for torque transfer, allowing a sealed fluid chamber.
Offer safer handling of hazardous or corrosive fluids due to leak-free operation.
Have fewer moving parts exposed to fluid, reducing wear and maintenance.
May have slightly lower efficiency due to magnetic coupling losses but gain in reliability and safety.
This makes magnetic drive pumps ideal for applications where fluid containment and environmental safety are critical.
Tip: Always verify the alignment of the magnetic assemblies during installation to ensure efficient torque transfer and prevent vibration issues.
Magnetic drive pumps excel in many industries due to their leak-proof design and chemical resistance. Their unique construction makes them ideal for handling fluids that require safety, purity, or corrosion resistance.
Chemical plants often deal with harsh, toxic, or corrosive substances. Magnetic drive pumps provide a sealed system that prevents leaks, protecting workers and the environment. They handle aggressive chemicals like methylenediphenyl diisocyanate (MDI) and toluene diisocyanate (TDI), commonly used in polyurethane production. The pumps’ corrosion-resistant materials ensure long service life even with these challenging fluids.
In pharmaceutical production, purity is critical. Magnetic drive pumps transfer fluids without risk of contamination because they eliminate mechanical seals, which can be leak points. Their sealed design ensures sterile conditions, meeting strict regulatory standards. They also handle sensitive fluids gently, preserving product integrity.
Water treatment plants use magnetic drive pumps to move acids, caustics, and disinfectants safely. The pumps’ leak-free operation prevents chemical spills, protecting equipment and personnel. Their chemical compatibility and durability make them reliable for continuous operation in treatment processes.
Semiconductor manufacturing demands ultra-pure chemicals and contamination-free environments. Magnetic drive pumps provide hermetic sealing, ensuring no leaks or contamination. They handle aggressive etchants and solvents safely, maintaining the high standards required for chip fabrication.
In food and beverage industries, hygiene and product quality are paramount. Magnetic drive pumps transfer viscous, shear-sensitive, or sanitary fluids without contamination risk. Their sealed design prevents bacterial ingress and fluid leakage, maintaining cleanliness and product safety. They also reduce maintenance downtime, supporting continuous production.
Tip: When selecting magnetic drive pumps for sensitive applications, choose models with materials compatible with your fluid to maximize durability and ensure contamination-free operation.
Magnetic drive pumps offer several key benefits that make them popular in industries requiring safe, reliable fluid handling. Their unique design eliminates many common problems found in traditional pumps.
One of the biggest advantages is the removal of mechanical seals. Mechanical seals often cause leaks, which can lead to costly downtime and safety hazards. Magnetic drive pumps use a magnetic coupling to transfer power, so no shaft penetrates the pump casing. This design creates a hermetic seal, preventing fluid leaks completely. It reduces maintenance needs and avoids contamination risks, especially important when handling hazardous or toxic fluids.
Handling dangerous chemicals demands strict safety measures. Magnetic drive pumps enhance safety by eliminating leak points. Without mechanical seals, the risk of exposure to harmful fluids or vapors drops significantly. This protects workers and the environment, making these pumps ideal for chemical processing, pharmaceuticals, and water treatment plants.
Fugitive emissions, including volatile organic compounds (VOCs), pose health and environmental risks. Conventional pumps with seals can release these emissions through leaks. Magnetic drive pumps prevent such emissions by sealing the fluid path completely. This helps companies meet regulatory standards and avoid fines while improving overall workplace safety.
Dry running can damage pumps quickly when fluid flow stops unexpectedly. Some magnetic drive pumps feature dry run protection, allowing them to operate briefly without fluid. This reduces the chance of pump failure caused by human error or system interruptions, saving repair costs and downtime.
Magnetic drive pumps often use corrosion-resistant materials like stainless steel or Hastelloy for the containment shell and impeller. This makes them highly durable against aggressive chemicals. Their robust construction ensures long service life even in harsh environments, reducing replacement frequency and overall costs.
Choosing the right pump can be complex due to the many seal options and materials involved. Magnetic drive pumps simplify this process by eliminating mechanical seals entirely. This reduces variables and makes it easier to select a pump that fits the application, saving time and minimizing errors during specification.
Tip: When specifying magnetic drive pumps, prioritize models with corrosion-resistant containment shells to maximize lifespan and ensure leak-free operation in harsh chemical environments.
Magnetic drive pumps offer many benefits, but they also come with some limitations and challenges that users should consider.
One common issue is vibration caused by imbalanced magnetic forces. If the magnets inside the pump are not perfectly aligned or if the magnetic coupling isn't balanced, it can create uneven forces. This leads to vibration, which may cause premature wear on components and reduce pump life. Proper installation and alignment are critical to minimize this problem.
Bearings in magnetic drive pumps operate close to strong magnets and often endure high loads. This proximity can increase friction, leading to faster bearing wear than in conventional pumps. Regular inspection and timely replacement of bearings are essential to avoid unexpected downtime. Maintenance schedules should focus on bearing condition monitoring.
The magnetic coupling can induce eddy currents in nearby conductive materials, causing energy loss. These eddy currents generate heat and reduce the overall efficiency of the pump. The effect is more noticeable at higher operating speeds. Choosing materials and designs that minimize eddy current formation helps improve efficiency.
Magnets used in these pumps can lose their magnetic strength if exposed to extreme temperatures or strong external magnetic fields. Demagnetization reduces torque transfer capability, leading to lower pump performance or failure. It’s important to operate pumps within recommended temperature ranges and avoid exposure to strong magnetic interference.
Magnetic drive pumps are generally not designed to handle fluids containing solids or abrasive particles. Solids can damage the containment shell, impeller, and bearings, leading to rapid wear and potential failure. For applications involving solids, alternative pump types should be considered.
Compared to traditional mechanical seal pumps, magnetic drive pumps often have a higher upfront cost. This investment can be justified by lower maintenance expenses and longer service life, but the initial price may limit adoption in some budget-sensitive projects.
Tip: To reduce vibration and extend pump life, ensure precise alignment of magnetic assemblies during installation and perform regular bearing inspections.
Magnetic drive pumps and canned motor pumps are both sealless designs, but they differ in how they rotate the impeller. Magnetic drive pumps use permanent magnets to transfer torque from the motor to the impeller through a containment shell. The magnets outside the pump housing create a magnetic field that drives the magnets inside, spinning the impeller without a direct shaft connection.
Canned motor pumps, however, integrate the motor rotor and impeller inside a sealed can. The rotor spins inside the stator, creating a magnetic field that turns the impeller. This design offers double containment since the motor and pump share a sealed casing, providing extra protection against leaks.
Key differences include:
Size and compactness: Canned motor pumps are generally more compact due to integrated motor and pump components. Magnetic drive pumps tend to be larger, as the motor is separate.
Operating flexibility: Magnetic drive pumps allow adjusting operating points by changing motor specifications. Canned motor pumps require replacing the entire pump to change operating conditions.
Containment: Canned motor pumps feature double containment, offering higher leak safety. Magnetic drive pumps have a single containment shell.
Maintenance: Magnetic drive pumps often have simpler maintenance since motor and pump are separate. Canned motor pumps may require more complex servicing due to integrated parts.
Mechanical seal pumps use a direct shaft connection with mechanical seals to prevent leaks. These seals wear over time, causing leaks and requiring maintenance. Magnetic drive pumps eliminate mechanical seals by using magnetic coupling, creating a hermetic seal that prevents leaks entirely.
Advantages of magnetic drive pumps over mechanical seal pumps:
Zero leakage: No dynamic seals means no leakage risk, improving safety and environmental protection.
Lower maintenance: No seal replacements or barrier fluid monitoring reduces downtime and costs.
Improved safety: Eliminates exposure risks to hazardous fluids through leaks.
Reduced vibrations and mechanical loads: Magnetic coupling reduces shaft stress, extending bearing life.
Simplified installation: Fewer components and no seal systems simplify setup.
However, mechanical seal pumps may be more suitable for applications involving solids or abrasive fluids, where magnetic drive pumps have limitations.
Magnetic drive pumps excel in handling hazardous, corrosive, or ultra-pure fluids where leak prevention is critical. They offer safer, cleaner operation and lower maintenance. Their design suits chemical processing, pharmaceuticals, water treatment, and semiconductor industries.
Canned motor pumps provide higher containment safety and compactness but can be less flexible in operation and more complex to maintain.
Mechanical seal pumps remain cost-effective for general applications, especially where solids handling is required or initial budget constraints exist. However, they carry higher risks of leaks and maintenance demands.
Choosing the right pump depends on fluid properties, safety requirements, maintenance capabilities, and budget considerations.
Tip: When selecting between magnetic drive, canned motor, or mechanical seal pumps, carefully evaluate fluid characteristics and safety needs to balance performance, maintenance, and cost effectively.
Magnetic drive pumps come in several types, each designed for specific applications and fluid handling needs. The main types include centrifugal magnetic drive pumps, positive displacement magnetic drive pumps, and micro magnetic drive pumps or mini centrifugal models.

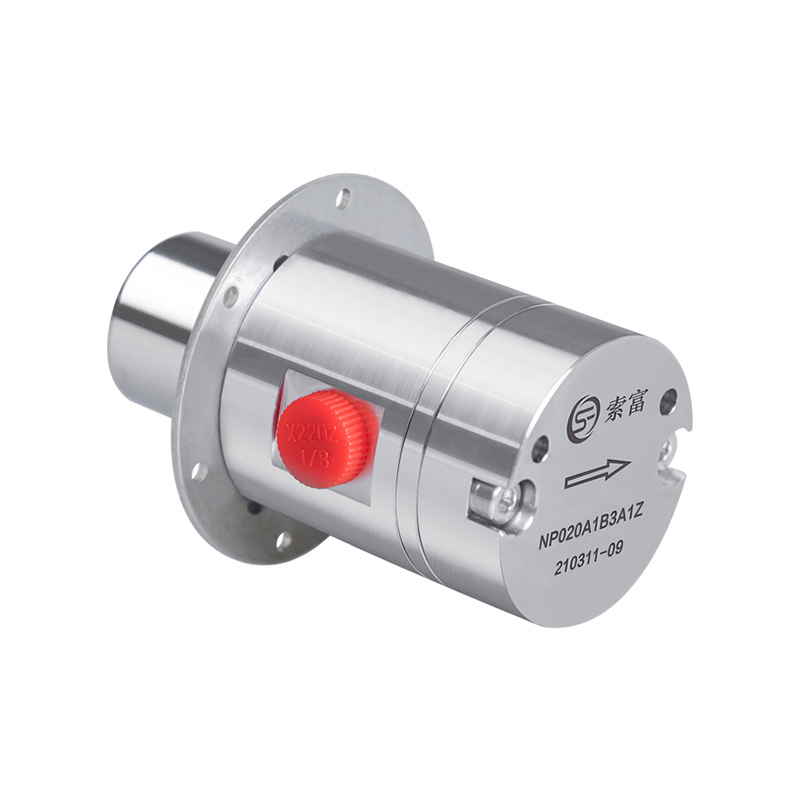

Micro magnetic drive pumps are compact, fully sealed units designed for low flow rates and small-scale applications. They employ the same magnetic coupling principle but in a miniaturized form.
Mini centrifugal magnetic drive pumps, such as the MINI COMPASS series, feature single-stage centrifugal impellers driven magnetically. They provide flows typically ranging from 11 to 50 liters per minute and heads up to about 11 meters.
These small pumps excel in clean environments, laboratory equipment, or systems requiring quiet, leak-free operation. Their compact size and absence of mechanical seals make them easy to install and maintain.
Centrifugal magnetic drive pumps use centrifugal force to move fluids. The impeller, attached to the internal driven magnet, spins inside the sealed pump casing. The external drive magnet, powered by the motor, turns the internal magnet through magnetic coupling without a direct shaft connection.
This rotation imparts kinetic energy to the fluid, creating a pressure difference. Fluid enters the pump at the suction side and is pushed outward by the spinning impeller to the discharge side. The containment shell keeps the fluid sealed inside, preventing leaks.
These pumps are ideal for handling low to medium viscosity fluids and are widely used in chemical processing, water treatment, and pharmaceutical industries. Their simple design offers smooth flow and minimal pulsation.

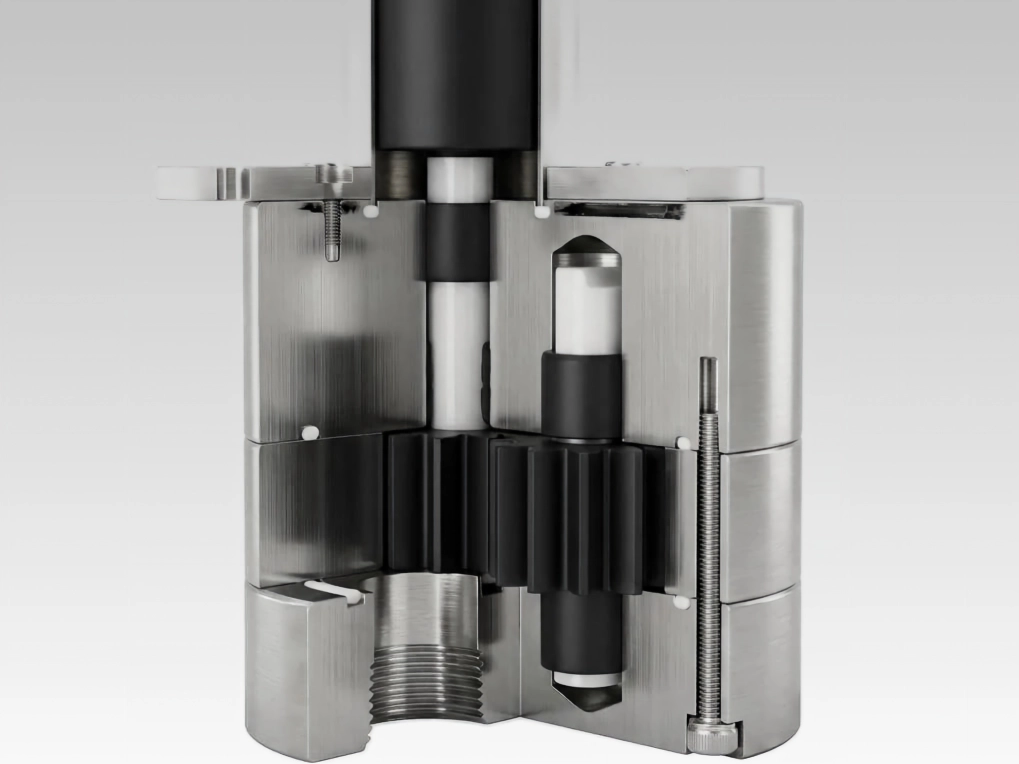

Positive displacement magnetic drive pumps move fluid by trapping a fixed volume and forcing it through the pump. They typically use gears, lobes, or diaphragms connected to the driven magnet inside the sealed chamber.
As the gears or lobes rotate, they create cavities that capture fluid and transport it from the inlet to the outlet. The magnetic coupling transmits torque from the external motor to the internal components without any shaft penetration.
These pumps deliver a constant flow regardless of pressure changes, making them suitable for precise dosing or high-pressure applications. They handle viscous fluids better than centrifugal pumps and are used in chemical metering, food processing, and oil transfer.
Tip: When choosing a magnetic drive pump type, consider fluid viscosity, required flow rate, and pressure to ensure optimal performance and reliability.
Proper maintenance starts with routine checks before and during pump operation. Always ensure the motor fan rotates freely to prevent overheating. Before starting the pump, prime it properly to avoid dry running. Open the suction valve fully to allow fluid flow and prepare the discharge valve to control output pressure. Once started, verify the pump’s rotation matches the motor direction. Monitor power consumption and operating parameters closely to detect early signs of trouble.
Magnetic drive pumps can sometimes experience vibration due to misalignment of the magnetic assemblies or imbalanced magnetic forces. Check alignment carefully during installation and periodically thereafter. Excessive vibration can cause premature bearing wear and reduce pump life. Power consumption spikes may indicate fluid blockage, loss of prime, or mechanical issues inside the pump. Inspect for air leaks, verify system head, and confirm correct motor speed and rotation to resolve these problems.
Regular maintenance ensures longevity and reliable performance. Initial inspection is recommended after about 6 months or 2,000 operating hours, followed by annual checks. Focus on bearing condition, containment shell integrity, and magnet assembly alignment. Replace worn bearings promptly to avoid further damage. Examine seals and O-rings for wear, even though magnetic drive pumps lack mechanical seals, to maintain containment shell sealing. Adjust maintenance frequency based on fluid type and operating conditions.
Continuous monitoring of motor and pump health helps prevent unexpected failures. Use vibration sensors and power meters to track abnormal changes. Temperature monitoring of bearings and motor windings can reveal early overheating issues. Keep detailed logs of operating data to spot trends and schedule proactive maintenance. This approach reduces downtime, lowers repair costs, and maximizes pump availability.
Tip: Establish a detailed startup and inspection checklist to ensure consistent magnetic drive pump operation and early detection of potential issues.
Magnetic drive pumps offer leak-free, safe fluid transfer ideal for chemical, pharmaceutical, and water treatment industries. Their sealed design reduces maintenance and prevents contamination. Future trends focus on improving efficiency and durability while minimizing vibration and energy loss. Selecting the right pump type and materials ensures reliable operation and long service life. Shanghai Super Fluid Co., Ltd. (Suofu) provides advanced magnetic drive pumps that deliver safety, reliability, and cost savings for demanding applications. Their expertise supports optimal pump selection and maintenance.
A: A magnetic drive pump transfers torque from the motor to the impeller using magnetic coupling, eliminating mechanical seals and preventing leaks through a sealed containment shell.
A: Magnetic drive pumps offer leak-free operation, improved safety handling hazardous fluids, reduced maintenance, and better corrosion resistance compared to conventional mechanical seal pumps.
A: Magnetic drive pumps generally have a higher initial cost than traditional pumps, but their reduced maintenance and longer lifespan can offset this investment over time.
A: Check magnetic assembly alignment carefully, inspect bearings for wear, and ensure proper installation to reduce imbalanced magnetic forces causing vibration.
A: Magnetic drive pumps use external magnets for torque transfer and separate motors, while canned motor pumps integrate motor and pump in a sealed unit, offering double containment but less operational flexibility.
