Selecting a micro magnetic gear pump is not simply a matter of choosing the smallest pump or the model with the highest rated flow. For precision fluid handling systems, pump performance depends on the relationship between flow rate, differential pressure, fluid viscosity, temperature, motor speed, materials and piping conditions.
A properly selected miniature magnetic drive gear pump can provide stable flow, high pressure capability, leak-free fluid transfer and long operating life. An incorrectly selected pump, however, may experience insufficient flow, excessive motor load, gear wear, unstable metering or premature failure.
So, how do you select a micro magnetic gear pump for your application?
The most important parameters are:
Required flow rate and operating speed
Differential pressure and system pressure
Fluid viscosity and physical properties
Fluid and ambient temperature
Motor and speed-control requirements
Piping, filtration and installation conditions
This guide explains each factor from an engineering perspective and provides a practical selection process for OEM engineers, equipment manufacturers and system designers.

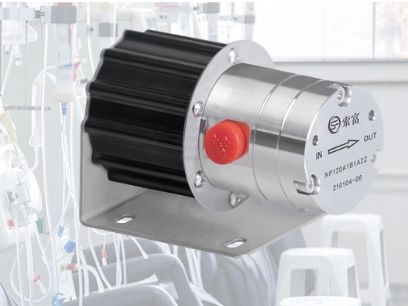

A micro magnetic gear pump is a compact positive displacement pump designed to transfer liquids at relatively low flow rates while maintaining stable pressure and controllable output.
Unlike a centrifugal pump, whose flow is strongly influenced by system pressure and pump speed, a gear pump moves a defined volume of liquid with each revolution. This makes it particularly suitable for applications requiring:
Precise fluid dosing
Low-flow liquid transfer
High-pressure fluid delivery
Continuous circulation
Lubricant or oil transfer
Chemical and reagent delivery
Cooling and temperature-control systems
Medical and laboratory equipment
The magnetic-drive configuration adds another important advantage. Instead of using a conventional dynamic shaft seal, the motor transfers torque through a magnetic coupling. This separates the motor from the wetted pump chamber and eliminates the conventional rotating shaft penetration.
As a result, magnetic drive gear pumps are especially useful when leakage prevention, fluid cleanliness and long-term reliability are important.
Before selecting a model, engineers should first answer six questions:
What fluid needs to be transferred?
What flow rate is required?
What differential pressure must the pump overcome?
What are the fluid viscosity and temperature?
How long will the pump operate?
Does the system require fixed-speed operation, variable-speed control or precision metering?
These answers form the foundation of pump selection.
For a positive displacement gear pump, theoretical flow is related to pump displacement and rotational speed:
Theoretical Flow = Displacement per Revolution × Rotational Speed
For example, a pump with a nominal displacement of 1.0 mL/rev theoretically delivers approximately 1.0 mL for every revolution before accounting for internal leakage and operating conditions.
In actual operation:
Actual Flow = Theoretical Flow − Internal Leakage
Internal leakage becomes more significant when the pump operates with low-viscosity fluids or high differential pressure.
Therefore, selecting a pump only according to its maximum flow rate can lead to poor performance.
When selecting a precision metering gear pump, evaluate:
Required minimum flow
Normal operating flow
Maximum flow
Pump displacement per revolution
Operating speed range
Differential pressure at the working point
Flow stability at different pressures
The pump should normally operate within a reasonable section of its performance curve rather than continuously at its maximum speed or maximum pressure.
For variable-flow applications, a speed-controlled motor can adjust the pump output. BLDC motors, for example, can be configured with different speed-control methods depending on the pump and application. Suofu's NP series supports different motor configurations and speed-control options across its product range.
Application requirement | Recommended selection approach |
|---|---|
Very low flow | Select a small-displacement gear pump |
Stable continuous flow | Match rated flow with the actual working point |
Variable flow | Use a speed-controlled motor |
Precision metering | Evaluate flow accuracy, pressure and speed stability together |
High-flow application | Select a larger displacement pump series |
Pressure is one of the most misunderstood parameters when selecting a micro magnetic gear pump.
The pump's required differential pressure is determined by the complete fluid circuit, not simply by the pump itself.
The basic relationship is:
Differential Pressure = Outlet Pressure − Inlet Pressure
System pressure loss can come from:
Pipe friction
Valves
Filters
Heat exchangers
Nozzles
Elevation differences
Equipment internal resistance
Tank or vessel backpressure
For example, a system may require only 500 mL/min, but if the fluid must pass through a restrictive filter and a long narrow tube, the required differential pressure may be much higher than expected.
When evaluating a pump, distinguish between:
1. Working differential pressure
The pressure difference the pump must continuously overcome.
2. Maximum differential pressure
The maximum pressure difference permitted under specified operating conditions.
3. System pressure or pressure-withstanding capability
The pressure the pump housing and wetted components can withstand.
These values are not interchangeable.
Suofu's NP product families have different pressure capabilities. For example, the NP42 series is specified for up to 20 bar differential pressure with water under stated conditions, while larger NP60, NP98 and NP106 series products can be configured for higher differential-pressure requirements depending on the model and application.
Therefore, always select the pump according to the actual operating point rather than simply choosing the highest-pressure model.
Fluid viscosity has a direct effect on both pump performance and motor load.
A high viscosity magnetic gear pump behaves differently from a pump handling water or another low-viscosity liquid.
Examples include:
Water
Diluted aqueous solutions
Some solvents
Low-viscosity refrigerants
Low-viscosity fluids can increase internal leakage through the small clearances between gears and the pump housing, particularly as differential pressure increases.
This means that a pump may produce less actual flow than its theoretical displacement suggests.
Examples include:
Lubricating oils
Silicone oils
Resins
Certain adhesives
Polymer solutions
Higher viscosity can reduce internal leakage and improve volumetric efficiency, but it also increases resistance to gear rotation.
This results in greater:
Motor torque demand
Power consumption
Gear loading
Heat generation
Therefore, when handling high-viscosity media, engineers should consider pump speed and motor torque together rather than simply increasing pump speed.
Suofu's NP product specifications cover a broad viscosity range, with certain NP series products specified for approximately 0.2–10,000 cP, depending on model and operating conditions.
Low viscosity → pay particular attention to internal leakage and pressure.
High viscosity → pay particular attention to motor torque, speed and heat.
For shear-sensitive liquids, lower rotational speed may also be preferable.
Temperature affects far more than the pump housing.
It can change:
Fluid viscosity
Internal component dimensions
Gear clearances
Seal performance
Bearing performance
Magnet performance
Motor temperature
Material compatibility
For this reason, both fluid temperature and ambient temperature should be provided during pump selection.
At low temperatures, fluid viscosity may increase significantly and different materials may contract at different rates.
For applications involving very cold liquids, engineers should verify:
Gear material
Shaft material
Bearing material
Seal material
Magnetic material
Pump housing
Motor temperature rating
At elevated temperatures, material strength, seal performance and magnet characteristics must be considered.
Some Suofu NP series products are specified for operating temperatures from approximately -120°C to 150°C, but this should not be interpreted as a universal temperature rating for every model or every fluid. The actual allowable range depends on the selected pump configuration, materials, seals, motor and operating conditions.
Common material options for micro magnetic gear pumps can include:
Pump component | Typical material options | Main consideration |
|---|---|---|
Pump body | SS316, Hastelloy, PEEK, custom alloys | Corrosion and pressure resistance |
Gears | PEEK and engineered polymers | Wear, lubrication and chemical compatibility |
Shaft | Zirconia ceramic | Wear resistance and dimensional stability |
Magnetic drive | Rare-earth magnets | Temperature and chemical protection |
O-ring | FKM, EPDM, PTFE, FVMQ, CR and others | Fluid and temperature compatibility |
Suofu's NP series provides multiple material configurations for different fluid and environmental conditions.
For aggressive chemicals or unfamiliar fluids, material compatibility testing should be performed before mass production.
The pump head is only half of the system. The motor determines how the pump operates.
Different applications require different drive solutions.

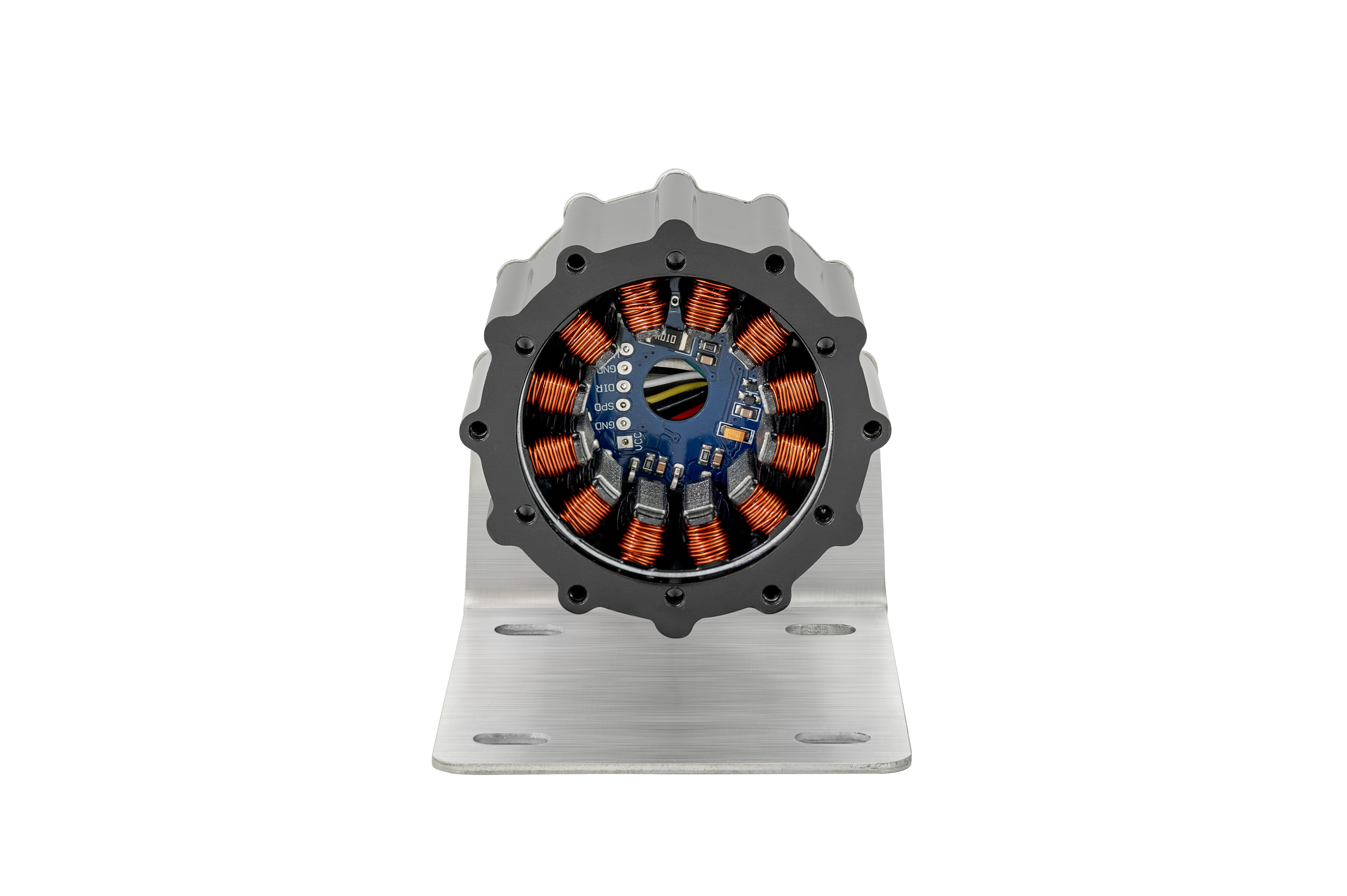

A brushless DC motor is a common choice for compact equipment because it can provide:
Compact integration
Variable-speed control
High operating efficiency
Low maintenance
Compatibility with automated control systems
Depending on the configuration, Suofu's NP pumps can be paired with BLDC motors supporting different voltage, power and speed ranges, as well as 0–5 V, PWM or other control methods.

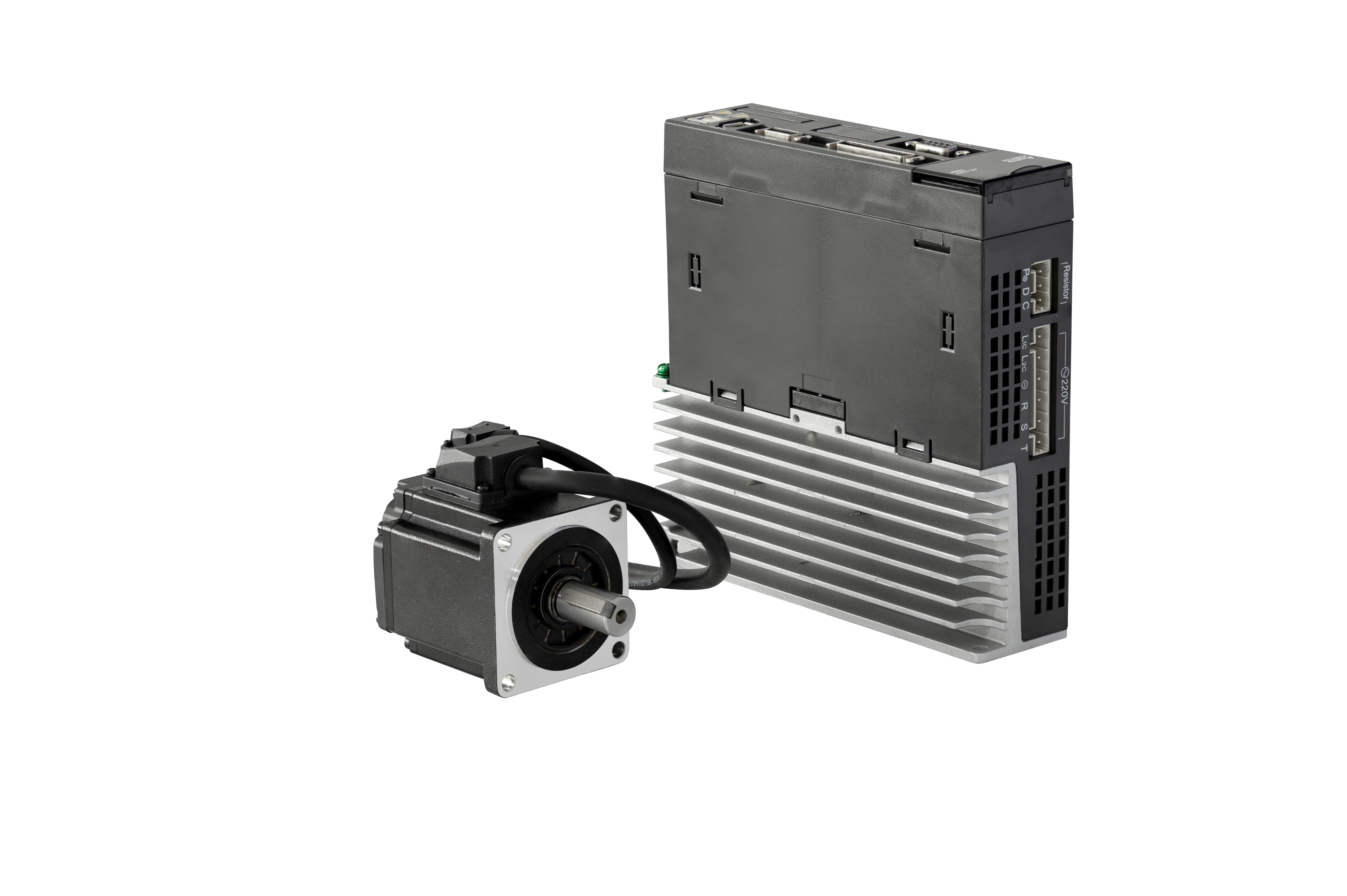

Servo motors are useful when the system requires:
High-precision speed control
Closed-loop control
Rapid speed adjustment
Stable operation under changing loads
They can be considered for precision dosing and automated fluid-control systems.

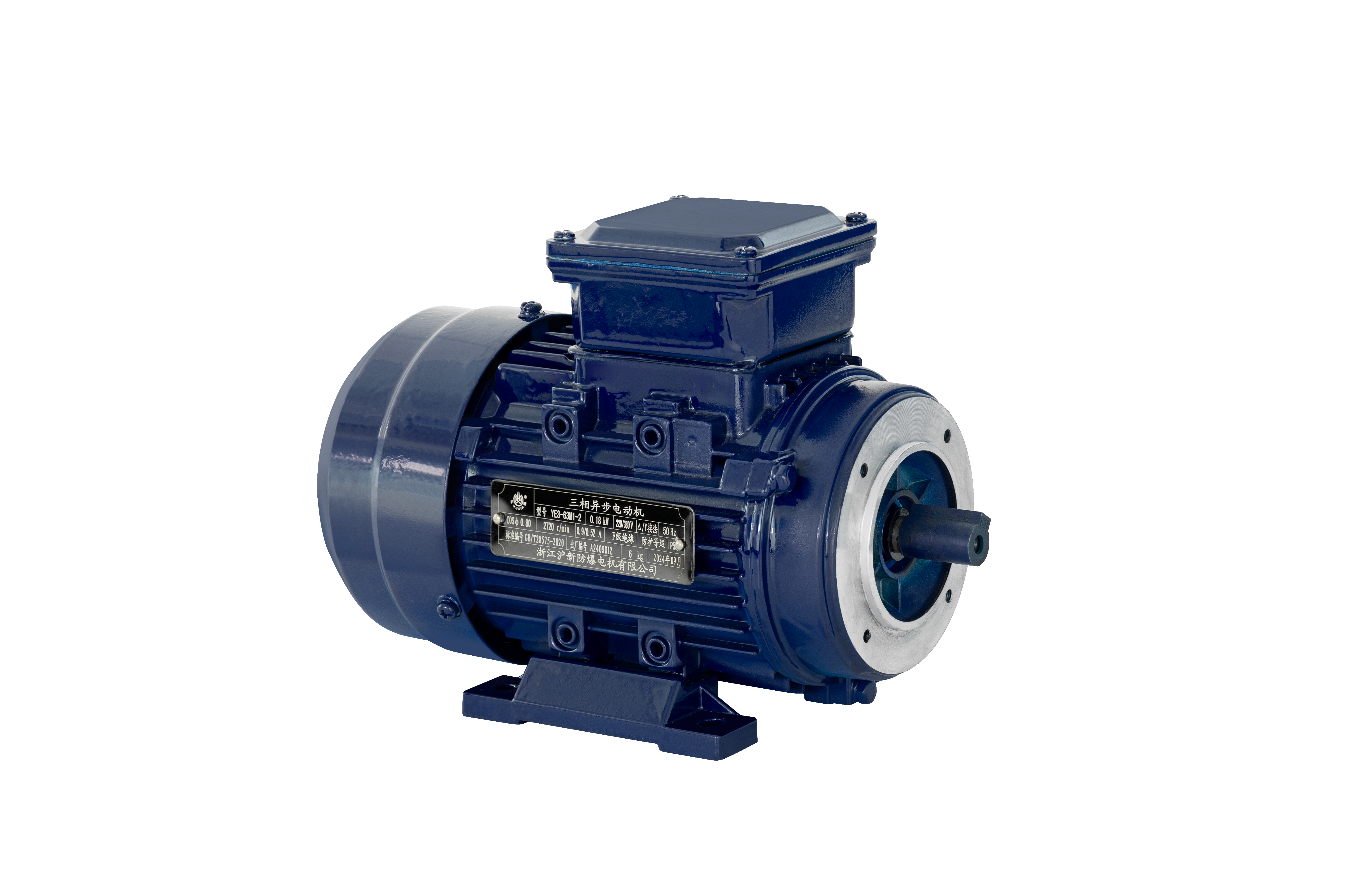

AC motors can be appropriate for larger pumps or applications where:
Fixed-speed operation is sufficient
A standard industrial motor is preferred
A VFD is already available
Suofu's product range supports AC motor and other motor configurations depending on the pump series.
For high-viscosity or high-pressure applications, insufficient motor torque can cause:
Speed reduction
Magnetic coupling slip
Motor overheating
Unstable flow
Premature component wear
Therefore, the motor should be selected together with flow, pressure, viscosity and operating speed.
Dry running is an important consideration in systems where the pump may temporarily lose liquid supply.
However, dry-running capability is not a universal specification across all micro magnetic gear pumps.
Some pump models and configurations are designed to tolerate short-term dry running, while other models should not be operated dry.
For example, Suofu's NP42 and NP60 product information specifies dry-running capabilities under defined conditions, whereas NP98 and NP106 product information states that dry running is not recommended.
Therefore, OEM engineers should specify:
Whether dry running can occur
Maximum possible dry-running duration
Pump speed during dry running
Whether gas-liquid two-phase flow is expected
Whether the pump must self-prime
Whether the fluid provides sufficient lubrication
Never assume that a pump's dry-running performance can be extrapolated from one model to another.
This is especially important for cooling, refrigeration, laboratory and automated dosing systems where air can occasionally enter the fluid circuit.
A correctly selected pump can still perform poorly if the inlet system is incorrectly designed.
Because micro gear pumps contain very small internal clearances, contamination can damage gears, bearings or other precision components.
Inlet side:
Keep the inlet pipe as short as practical.
Avoid unnecessary elbows.
Avoid excessive inlet restriction.
Match the inlet pipe size to the pump port and required flow.
Use an appropriate inlet filter where contamination is possible.
Confirm that the filter does not create excessive pressure loss.
For certain Suofu NP configurations, a 400-mesh inlet filter is recommended. The exact filtration requirement should be confirmed according to the pump model and fluid.
Outlet side:
Calculate pressure loss through the complete outlet circuit.
Avoid unnecessary restrictions.
Consider a pressure regulator or safety valve where required.
Verify backpressure during startup and shutdown.
This step is often overlooked because the pump itself may be correctly sized while the surrounding piping prevents it from reaching the expected operating point.
Once the basic application information has been collected, engineers can compare pump series systematically.
For Suofu's NP Series, the current product range covers different displacement and flow classes, from the compact NP20/NP42 families through the larger NP51, NP60, NP98 and NP106 series. The published rated flow ranges extend from approximately 0–1.5 L/min to 0–65 L/min, depending on the series.
Parameter | What to determine | Why it matters |
|---|---|---|
Required flow | Minimum / normal / maximum flow | Determines pump displacement |
Differential pressure | Normal and maximum ΔP | Determines pump pressure capability |
Fluid viscosity | cP or mPa·s | Affects leakage and motor torque |
Fluid temperature | Minimum / normal / maximum | Determines materials and clearances |
Ambient temperature | Operating environment | Determines motor and electronics selection |
Speed | Required RPM range | Determines flow-control range |
Motor | BLDC / servo / AC / other | Determines control and torque |
Dry running | Yes / no / duration | Determines pump configuration |
Fluid compatibility | Corrosive, abrasive, reactive | Determines wetted materials |
Inlet condition | Positive pressure / vacuum | Affects suction performance |
Port size | Inlet / outlet connection | Determines system integration |
Filtration | Particle size / filter mesh | Protects precision components |
Operating mode | Continuous / intermittent | Affects service-life requirements |
This table can be placed before the product recommendation section, because it converts the article from general educational content into an actual engineering selection guide. It is also useful for AEO/GEO because AI systems can extract the individual parameter-to-decision relationships more easily.
A reliable selection process can be simplified into six steps.
Record:
Fluid name
Viscosity
Temperature
Corrosiveness
Lubricity
Particle content
Gas content
Determine:
Minimum flow
Normal operating flow
Maximum flow
Required flow accuracy
Determine:
Inlet pressure
Outlet pressure
Differential pressure
Pipeline resistance
Filter pressure drop
Confirm the compatibility of:
Pump body
Gears
Shaft
Bearings
Magnets
O-rings
Choose between:
BLDC motor
Servo motor
AC motor
Other customized motor configurations
Then determine the required:
Voltage
Power
RPM
Speed-control signal
Forward/reverse function
Closed-loop control requirements
Before mass production, test:
Actual flow
Differential pressure
Temperature
Motor load
Noise and vibration
Startup performance
Continuous operation
Fluid compatibility
Dry-running behavior if applicable
The final pump model should be selected from the actual working point, not from a single catalog parameter.
Even experienced engineers can encounter problems when one parameter is considered in isolation.
A pump rated for a high maximum flow may not provide stable performance at a very low target flow.
The pump must be evaluated at the actual flow-pressure working point.
A pump that performs well with water may require a different speed and motor configuration when handling high-viscosity oil or resin.
Temperature capability depends on the complete pump configuration, including materials, seals, magnets and motor.
Dry-running capability is model-specific and must be confirmed with the manufacturer.
An undersized inlet pipe or excessively restrictive filter can cause insufficient flow even when the pump itself is correctly selected.
Standard models are usually the fastest starting point, but OEM equipment may require a customized configuration.
Customization may be appropriate when the application involves:
Unusual fluid viscosity
Highly corrosive chemicals
Extreme temperatures
Special inlet or outlet connections
Limited installation space
Specific motor voltage
Special speed-control signals
High-pressure operation
Gas-liquid two-phase flow
Strict noise requirements
Special sealing materials
Suofu provides OEM/ODM customization covering performance, system integration and structural integration, allowing the pump, motor, connection and installation configuration to be matched to the equipment design.
For engineers comparing pump options, the NP Series Micro Magnetic Gear Pumps can therefore be evaluated not only as standalone pumps but also as integrated fluid-control components.
There is no single parameter that determines the correct model. The basic selection should consider flow rate, differential pressure, viscosity, temperature, motor speed and fluid compatibility together.
Start with the required minimum and normal flow, then select the appropriate displacement and operating-speed range. For precision metering, also evaluate flow accuracy, pressure stability and motor-control resolution.
Yes, many micro gear pumps can handle high-viscosity liquids. However, increasing viscosity increases motor torque requirements, so pump speed, motor power and operating temperature must be evaluated together.
Some models are designed to tolerate short-term dry running, while others are not. Dry-running capability must be confirmed for the specific pump model and operating condition.
BLDC motors are suitable for many compact and variable-flow systems. Servo motors are more appropriate when closed-loop precision control is required, while AC motors can be suitable for larger or fixed-speed industrial applications.
Start with the fluid's chemical composition, temperature, viscosity and concentration. Then match the pump body, gears, shaft, bearings and sealing materials to the actual operating conditions.
At minimum, provide:
Fluid + flow rate + differential pressure + viscosity + temperature + inlet condition + operating time + motor/control requirements + connection size.
The more complete the application data, the more accurately the pump can be selected.
Choosing a micro magnetic gear pump is an engineering matching process rather than a simple product comparison.
The correct selection should connect the entire fluid system:
Fluid → Flow → Pressure → Viscosity → Temperature → Materials → Motor → Piping → Operating Conditions
A properly matched pump can provide stable fluid transfer, accurate metering, reliable pressure performance and long-term operation. Conversely, selecting a pump based only on maximum flow, maximum pressure or physical size can result in unstable output, excessive motor load or premature wear.
Suofu specializes in micro magnetic gear pumps and precision fluid-transfer solutions, with NP Series products covering different flow ranges, pressure requirements, material configurations and motor options. The current NP portfolio is designed for applications including precision fluid transfer, medical equipment, laboratory instruments, chemical processing, refrigeration, liquid cooling and industrial systems.
For OEM engineers and equipment manufacturers, the best pump is not necessarily the largest, fastest or highest-pressure model. It is the model whose flow, pressure, materials, motor and operating conditions are correctly matched to the complete system.
Need help selecting a micro magnetic gear pump? Provide your fluid, required flow rate, pressure, viscosity, temperature and motor requirements, and Suofu can help evaluate the appropriate NP Series configuration.
