Although compact in size, a micro magnetic gear pump operates within a precision system that must contend with multiple challenges simultaneously:
High pressure, friction, corrosion, temperature fluctuations, and more.
Materials are the foundation of it all, determining the pump's wear resistance, lifespan, stability, and cleanliness. Beyond design, process, assembly, testing, and systems, material quality represents the first critical differentiator between an "ordinary product" and a "high-performance solution."
Suofu has been deeply engaged in micro magnetic gear pumps for sixteen years. Its NP series achieves high precision (±0.1%) and long service life (>20,000 hours), rivaling international leaders in this field. One of its core pillars is the uncompromising commitment to raw materials for every component.

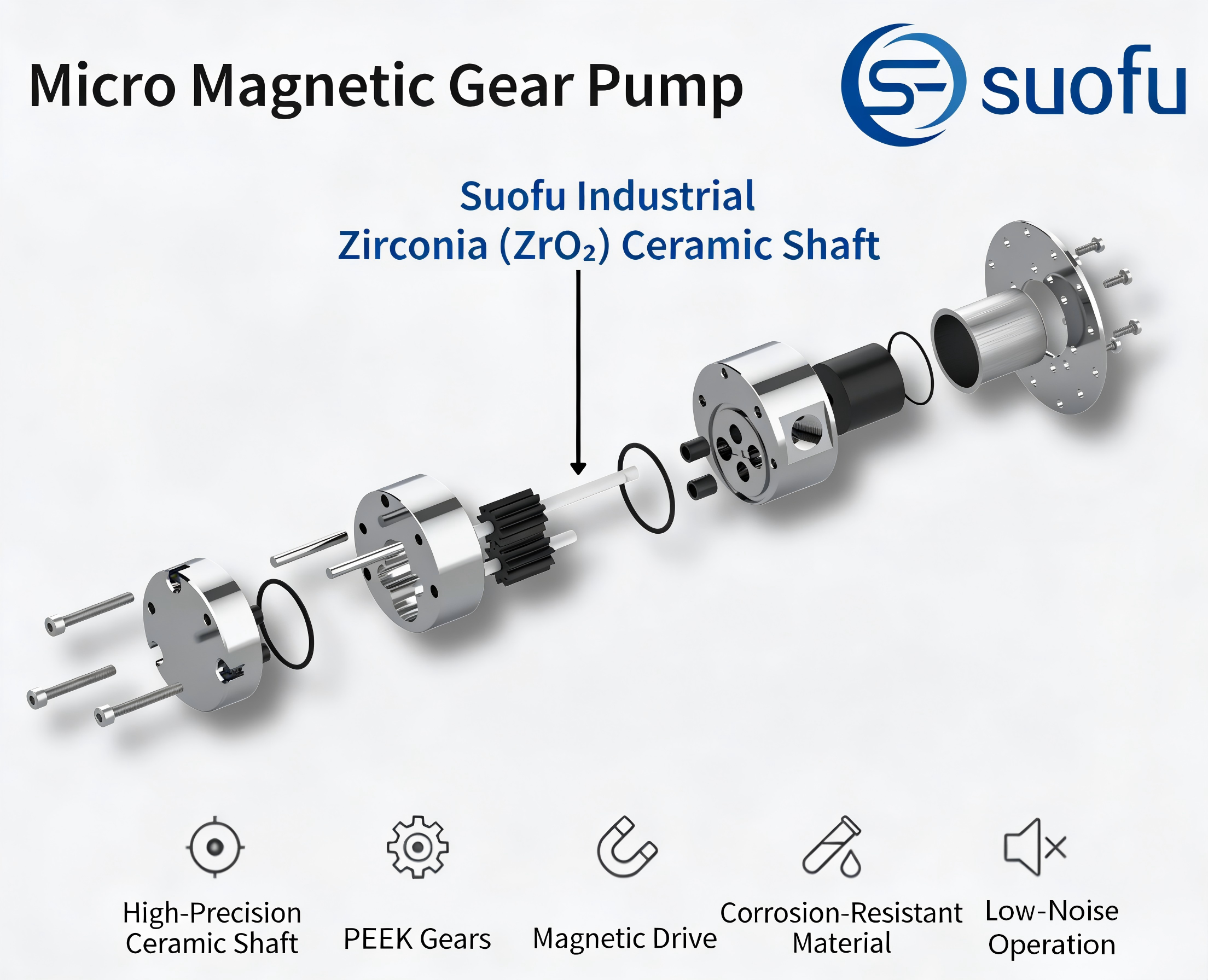

Following our previous reveal on specialty PEEK materials, this edition focuses on the transmission and load-bearing core of the micro pump—the zirconia ceramic shaft. Let’s understand how this component underpins the pump's exceptional longevity and ultimate precision.
Mention ceramics, and many people's first reaction is hard but brittle. Common household alumina ceramic bowls shatter when dropped – this is the core reason traditional ceramics have struggled in applications involving high-speed rotation and high pressure.
However, industrial zirconia (ZrO₂) ceramics completely defy this perception.
It is not an ordinary ceramic. It is a specialty engineering ceramic with high hardness and high chemical stability, representing the "premium material" for micro pump shaft systems. Many specifiers only know that "ceramic shafts are wear-resistant," without realizing:
Even though they are all called "ceramic shafts," the performance of alumina, silicon carbide, and zirconia differs vastly.
Even for the same zirconia material, purity, sintering process, and polishing precision directly determine whether the pump will seize, leak, wear out, or fail.
In a micro magnetic gear pump, the shaft is the core moving part: it rotates continuously at high speed, bears loads, mates with bearings, and comes into direct contact with the fluid medium. It must withstand wear, corrosion, and impact, while also being ultra-smooth, zero-contaminating, and highly precise. Ordinary metals, plastics, or conventional ceramics simply cannot endure such demanding conditions.
In practical pump industry applications, metal shafts, alumina (Al₂O₃) ceramic shafts, and zirconia (ZrO₂) ceramic shafts represent the three mainstream shaft material solutions currently available.
This article provides a comprehensive comparison across three key dimensions: core material properties, advantages and disadvantages for specific operating conditions, and real-world application pain points. It concludes with actionable selection guidelines, offering technical references for R&D design, customer solution matching, and cost management.
Performance Indicator | 316L Stainless Steel Shaft | 99% Alumina Ceramic Shaft | 3Y Zirconia Ceramic Shaft |
|---|---|---|---|
Vickers Hardness (HV) | 180-220 | 1700-1800 | 1200-1300 |
Flexural Strength (MPa) | 500-550 | 350-400 | 600-780* |
Fracture Toughness (MPa·m⊃1;/⊃2;) | >200 | 3.5-4.0 | 8.0-10.0 |
Density (g/cm³) | 7.98 | 3.9 | 6.05 |
Data verified by Suofu actual measurement.
The zirconia ceramic shaft used in Suofu's NP series micro high-precision magnetic gear pumps offers excellent impact toughness among ceramic materials. Simultaneously, it demonstrates outstanding performance in wear resistance, chemical corrosion resistance, and flexural strength. Its comprehensive advantages make it an ideal choice for achieving high reliability and long service life under demanding conditions.
This industrial-grade zirconia ceramic shaft is not a generic standard part but a performance component custom-tailored for precision fluid delivery. Each indicator directly addresses pump application pain points. Combining the corrosion and wear resistance of ceramics, it ensures operational stability under abrasive fluids and high-pressure conditions, significantly enhancing product lifespan. Its advantages include:
Top-Tier Toughness & Impact Resistance Among Ceramics
Fracture toughness is over twice that of alumina ceramics.
Flexural strength far exceeds both alumina ceramics and 316L stainless steel.
Can withstand frequent pump start-stops and short-duration water hammer impacts, significantly reducing the industry pain point of brittle ceramic shaft fracture.
Comprehensively Upgraded Wear Resistance & Anti-Seizure Performance
Lower coefficient of friction than alumina ceramics, with superior self-lubricating properties.
Can tolerate longer periods of dry running or idling; industry-leading anti-seizure and anti-galling capabilities.
Perfectly suited for high-speed, high-precision micro pumps, metering pumps, and other advanced pump types.
Excellent Corrosion & Alkali Resistance
Corrosion resistance on par with alumina ceramics; superior alkali resistance compared to alumina ceramics, allowing adaptation to more chemical corrosive environments.
Also features no metal ion leaching, meeting stringent cleanliness requirements for high-end applications like semiconductors and biopharmaceuticals.
Excellent Fit & Compatibility
Linear expansion coefficient close to stainless steel, ensuring consistent thermal deformation compatibility with metal pump bodies and bearings.
Avoids issues of excessive clearance or seizing caused by temperature changes, making it suitable for operation across a wide temperature range.
Superior Thermal Shock Resistance Compared to Alumina
Can tolerate significant temperature fluctuations, with a much lower risk of cracking from sudden temperature changes than alumina ceramics, broadening the range of applicable operating conditions.
The answer lies in the triple reinforcement of Material + Structure + Process.
Core Material: High-purity industrial zirconia selected for maximized toughness, hardness, and surface finish.
Precision Fit: High-precision ceramic shaft + specialty PEEK gears + special profile design minimize sliding and wear.
Ultimate Machining: Mirror-grade polishing, micron-level tolerances, strict dynamic balancing eliminate vibration and seizing.
Comprehensive Inspection: Each pump undergoes rigorous testing including air tightness, flow rate, pressure, pressure resistance, low-temperature/high-temperature cycles, ensuring stable and reliable performance.
Currently, the NP series micro magnetic gear pumps, equipped with Suofu's zirconia ceramic shaft, are mass-deployed across over 60 industries, including medical devices, chip manufacturing, data center liquid cooling, lithium batteries, nuclear power, deep-sea exploration, pharmaceuticals, and chemicals. They have become the preferred precision delivery solution for more than 2,000 clients.
