When people think of a pump in a fire protection system, they usually think of a large centrifugal fire pump supplying water to sprinklers or hydrants.
A micro gear pump serves a very different purpose.
It is generally used where the fire protection equipment needs controlled, relatively small-volume liquid delivery, particularly when the system requires accurate dosing, stable pressure, compact installation or reliable transfer of a specific fire suppression liquid.
Typical applications can include foam concentrate proportioning, specialized fire suppression equipment, new energy battery fire protection systems and other auxiliary fluid-control circuits.
One of the clearest applications is the controlled delivery of foam concentrate.
In a foam fire suppression system, water and foam concentrate must be mixed at a specified proportion before the finished foam solution is discharged.
The concentrate flow may be much smaller than the main water flow, making a positive-displacement pump useful for controlled injection.
For example, electronically controlled foam proportioning systems can use a rotary gear pump to inject foam concentrate according to measured water flow. Commercial firefighting systems already use positive-displacement rotary gear pumps for this purpose.
The micro gear pump can therefore perform tasks such as:
● Drawing concentrate from a storage tank
● Delivering concentrate to the proportioning circuit
● Maintaining controlled concentrate flow
● Adjusting flow according to system demand
● Supporting automatic dosing systems
This is very different from the main fire water pump. The gear pump manages the concentrated additive, while the main pump handles the much larger water volume.
Lithium-ion battery systems, energy storage cabinets and other new energy equipment increasingly require dedicated fire protection and thermal safety systems.
These systems may need compact pumps to transfer fire suppression, cooling or protective fluids through relatively small pipelines.
A micro magnetic gear pump is particularly suitable where equipment designers need:
● Compact installation
● Controlled liquid delivery
● Stable flow
● High-pressure capability
● Reliable continuous or emergency operation
● Integration with automated control systems
Suofu specifically supplies micro magnetic gear pumps for special fire protection and new energy fire protection applications. Its pump range is also used in battery technology and other new energy fluid-management equipment.
For these systems, the correct pump configuration depends heavily on the suppression liquid, flow requirement, operating pressure and temperature.
Some specialized suppression equipment does not require the very high water flow associated with traditional building sprinkler systems.
Instead, it may require a smaller quantity of liquid to be transported, metered or pressurized.
A precision gear pump can be integrated into these systems when controlled liquid delivery is required.
Potential functions include:
● Fire suppression liquid transfer
● Additive injection
● Small-volume circulation
● System pressurization
● Controlled dispensing
Because suppression agents can vary considerably in viscosity and chemical composition, pump material compatibility must always be confirmed before selection.
Space is limited in many mobile or integrated fire protection devices.
Large pumps may not be practical when the required liquid volume is relatively small.
A compact micro gear pump for fire protection equipment can be installed together with a motor, controller, valves, sensors and storage tank to form an integrated fluid-control module.
This can be useful in applications where designers need the pump to respond automatically after receiving a signal from a fire detection or equipment control system.
The main advantage is controlled positive-displacement fluid delivery.
With each gear rotation, a relatively fixed volume of liquid is displaced. This makes the pump suitable for applications where flow control matters.
Accurate concentrate delivery is important in proportioning systems.
NFPA guidance for foam proportioning emphasizes that systems should be matched according to variables such as water flow, pressure, required proportioning rate, concentrate type and concentrate viscosity.
A gear pump combined with an appropriate motor and controller can adjust concentrate flow as system conditions change.
Some fire protection fluid circuits need to inject liquid into an already pressurized pipeline.
The dosing pump therefore has to overcome downstream pressure.
Suofu's higher-capacity NP Series micro magnetic gear pumps can provide maximum differential pressures of up to 40 bar, depending on model and operating conditions.
Actual pump selection should always be based on the required operating point rather than maximum pressure alone.
Micro gear pumps provide useful flow and pressure performance from a relatively compact structure.
This makes them easier to integrate into:
● Fire suppression cabinets
● Battery safety systems

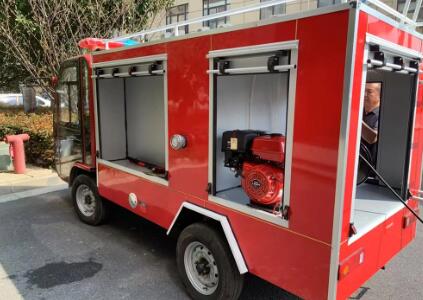

● Mobile equipment
● Automatic dosing modules
● Compact OEM fire protection equipment
Suofu micro magnetic gear pumps use precision gear and cavity designs to provide stable liquid transfer with low outlet pulsation.
For dosing and injection systems, smoother flow makes downstream control easier than a highly pulsating fluid source.
Traditional pumps frequently use a rotating shaft passing through a mechanical seal.
A micro magnetic gear pump transfers motor torque through magnetic coupling, allowing the fluid chamber to remain separated from the external drive mechanism.
This helps reduce the risk associated with dynamic shaft-seal leakage.
For fire protection and chemical-agent handling equipment, this can offer several advantages:
● Reduced leakage points
● Lower maintenance requirements
● Better fluid containment
● More compact pump construction
● Improved suitability for automated equipment
However, magnetic drive alone does not guarantee compatibility with every fire suppression agent. The pump's wetted materials must still be checked against the actual liquid.
This is especially important when selecting a pump for foam systems.
Not all foam concentrates behave like water.
The NFPA Research Foundation notes that modern fluorine-free foam concentrates can cover a very wide viscosity range, with some formulations behaving as non-Newtonian or pseudo-plastic fluids. This can significantly affect proportioning equipment performance.
Before selecting a micro gear pump, provide:
● Fire suppression agent or foam type
● Brand and chemical composition if available
● Concentration
● Viscosity
● Minimum and maximum temperature
● Required dosing rate
● Required inlet and outlet pressure
Pump selection based only on a nominal L/min value can lead to incorrect performance.
Suofu offers multiple precision micro magnetic gear pump series for different flow requirements.
Series | Rated Flow Range |
|---|---|
NP20 Series | 0–1.50 L/min |
NP42 Series | 0–2.20 L/min |
NP51 Series | 0–6.00 L/min |
NP60 Series | 0–10.5 L/min |
NP98 Series | 0–55.0 L/min |
NP106 Series | 0–65.0 L/min |
For example, the NP60 Series provides flow up to 10.5 L/min and is designed for precision delivery of multiple types of liquids, while the larger NP98 Series provides up to 55 L/min and is already positioned for applications including lithium battery production and fire protection.
The appropriate model depends on the actual fire protection system rather than simply choosing the largest pump.
For an OEM fire protection project, we recommend providing the following information before pump selection:
● Required minimum and maximum flow
● Normal operating flow
● Fire suppression liquid or foam concentrate
● Liquid viscosity
● Operating temperature
● Inlet pressure
● Outlet pressure
● Required differential pressure
● Motor voltage
● Speed control requirements
● Port size
● Installation dimensions
● Continuous or emergency operating mode
These parameters allow the pump manufacturer to evaluate both hydraulic performance and material compatibility.
It is important to distinguish the two.
Main Fire Pump | Micro Gear Pump |
Supplies large volumes of water | Handles relatively small liquid volumes |
Used for sprinklers and hydrants | Used for dosing, injection or auxiliary fluid delivery |
Usually centrifugal design | Positive-displacement gear design |
High total system flow | Precise controlled flow |
Core water-supply equipment | Integrated fluid-control component |
A micro gear pump therefore does not replace the main fire pump in a conventional sprinkler or hydrant installation.
Its value is in applications where a fire protection system requires accurate and controllable delivery of a secondary liquid.
Suofu develops micro magnetic gear pumps for fire protection, new energy, industrial and precision fluid-control systems.
Our NP Series offers:
● Flow ranges from micro flow to 65 L/min
● Differential pressure up to 40 bar on selected models
● Magnetic drive design
● PEEK gear options
● High-precision ceramic shafts
● BLDC, servo, stepper and other motor options
● Flow, pressure, interface and structural customization
● OEM/ODM fluid-control development
Instead of selecting a pump only from a catalog, Suofu engineers can evaluate your suppression fluid, viscosity, required flow, pressure and installation conditions before recommending a suitable configuration.
A reliable fire protection fluid-control system starts with selecting the pump according to the actual medium and operating conditions.
If you are developing foam proportioning equipment, new energy fire protection equipment or another specialized fire suppression system, send Suofu your required flow, pressure, liquid type, viscosity and temperature.
Contact Suofu to discuss a customized micro magnetic gear pump for your fire protection system.
