Metering Pump Types: How To Choose The Right One (Full Guide)

In the field of industrial fluid control, the ability to control errors within ±1%​ directly determines process stability in scenarios such as chemical synthesis, precision filling, precision coating, pharmaceutical compounding, and micro dispensing. This article, combining practical industry experience, explains the selection and application of precision metering pumps​ in detail from the dimensions of working principle differences, selection logic, core advantages, and application scenarios.

01 Fundamental Difference: Stroke vs. Continuous Rotation

As common types of reciprocating pumps, diaphragm pumps, piston pumps, and peristaltic pumps​ share the characteristic of moving liquid via a stroke method, i.e., pushing liquid out in "segments" through diaphragm deformation, piston reciprocation, or roller squeezing. This mode of motion inevitably causes periodic fluctuations​ in flow and pressure. Even with multi-head or multi-stroke designs, pulsation is difficult to completely eliminate. Furthermore, such systems are expensive and become complex when paired with equipment like pulsation dampers.

In contrast, as representative of rotary pumps — gear pumps​ utilize the meshing transmission principle. Relying on the engagement of one or more pairs of gears, they form periodically changing sealed volumes within the pump chamber, transferring liquid continuously and smoothly from the suction to the discharge end. This motion process has no obvious stroke intervals, fundamentally solving the issue of flow pulsation​ during metering.

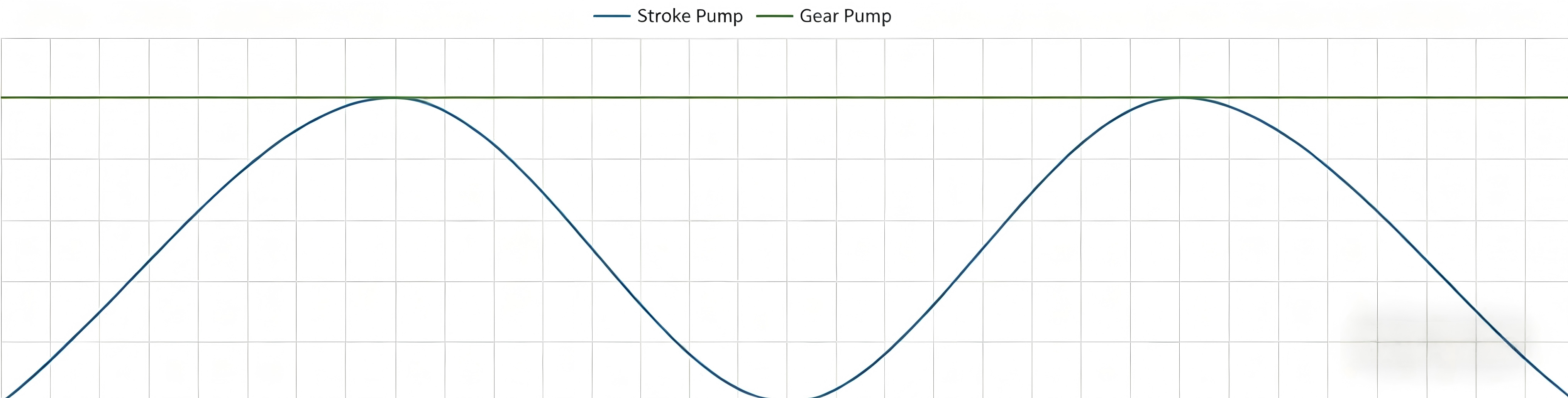

[Image: Stroke Pump & Gear Pump Discharge Waveforms]

Caption: The stroke pump's flow waveform resembles a sine wave, fluctuating up and down; the gear pump's discharge waveform is nearly a flat, steady line.

02 The Core of Selection: Batch Metering vs. Continuous Metering

Choosing a pump is like choosing a mode of transport — there is no "universal pump," only the most suitable one.

✅ Batch Metering:

Examples include adding Material A, then Material B, and finally heating and stirring in a reaction vessel. This type of scenario only requires cumulative metering accuracy; intermediate pulsation has little impact. Both reciprocating and rotary pump types are competent.

✅ Continuous Metering:

Examples include microchannel reactions, continuous flow pipeline reactions, precision proportional dosing, etc., where material mixing and reaction occur in real-time. There is insufficient time and space within the pipeline to "average out" flow fluctuations; the instantaneous flow at every time slice directly determines the material ratio. If the pump exhibits pulsation, causing high flow at one moment and low flow at another, it will lead to severe local deviation from the set ratio. This can lightly affect product purity, or heavily result in by-products, waste of raw materials, and even safety risks.

Therefore, continuous metering applications must use pulsation-free rotary metering pumps.

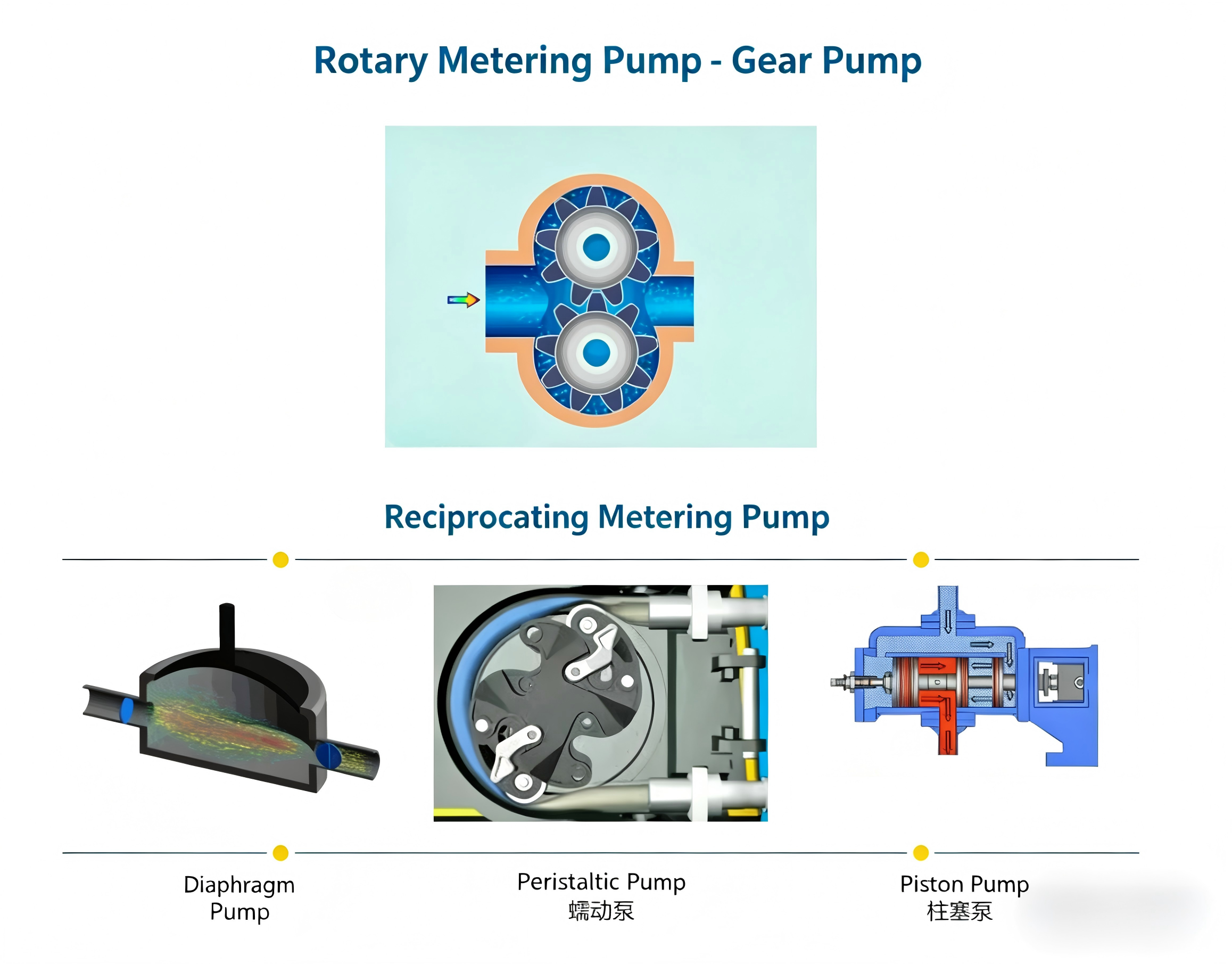

Comparison Table: Reciprocating vs. Rotary Metering Pumps

03 Advantages of Suofu Gear Metering Pumps

1. Pulsation-Free Delivery, Ensuring Continuous Process Stability

Gear pumps deliver liquid via continuous rotation without stroke intervals, providing smooth flow output, making them ideal for continuous flow processes. In many traditional industrial scenarios, even if only batch metering is required, the demand for repeatability accuracy is extremely high. Suofu micro magnetic gear metering pumps utilize high-precision meshing gears and a stable magnetic drive structure to achieve smooth, pulsation-free​ high-precision output.

2. High Repeatability Accuracy, Suitable for Precision Metering

Features high-precision meshing gear structure combined with a stable drive method. Taking the Suofu NP Series micro magnetic gear pump​ as an example, when paired with high-precision flow meters for feedback control on customer sites, it can maintain repeatability metering accuracy within ±0.1%​ over long-term operation, with smooth start/stop, far surpassing traditional metering pumps.

3. Compact Size, Suitable for Low Flow Applications

Gear pumps have a compact structure​ and small footprint, facilitating installation within equipment. They are especially suitable for precision transfer of micro flows in the range of 0.1~1000 mL/min, such as in laboratories, chemical/pharmaceutical, and medical equipment fields.

4. Leak-Free, High Cleanliness

Utilizing a magnetic drive structure eliminates the need for dynamic seals, completely preventing shaft seal leakage risks. Suitable for corrosive, toxic, and high-purity media.

5. Smooth Start/Stop, Excellent Linear Accuracy

During flow adjustment, gear pumps maintain excellent linear accuracy. For emerging precision scenarios demanding high linear accuracy (e.g., continuous dispensing, continuous production), the Suofu NP Series micro magnetic gear pump, with its characteristics of pulsation-free delivery and leak-free operation, has become the ideal choice.

04 Conclusion

Every metering system must meet different requirements. Suofu focuses on providing customers with personalized solutions. With 16 years of professional experience, we deeply understand how to design and manufacture gear pumps to meet specific applications.

If your equipment involves low-flow transfer, precision metering, or scenarios requiring continuous stable liquid supply, you are welcome to communicate with Suofu to obtain selection advice and application solutions.

Message "Selection" to get product information and application cases.
