Gear Pump Disassembly and Assembly Techniques (Step-by-Step)

NP98 Series Product Comprehensive Disassembly and Assembly Guide

Easily Master the Internal Structure and Maintenance Techniques

Product for Disassembly: NP1700

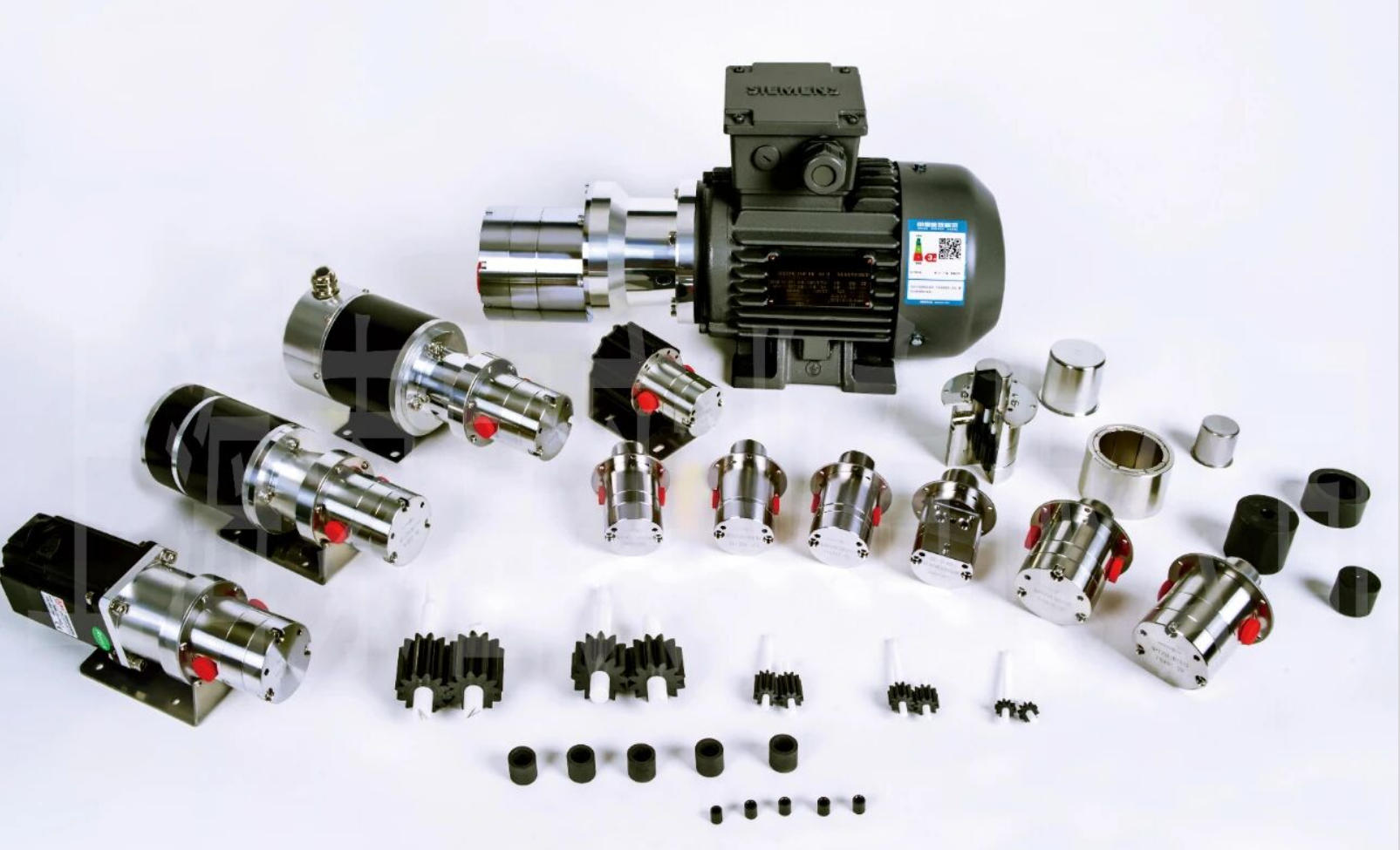

1. Suofu Micro Magnetic Gear Pump

Flow rate range: 1-65,000 ml/min, metering accuracy up to ±0.1%, conveyed liquid viscosity range: 0.2 cps ~ 10000 cps, conveyable liquid temperature range: -120°C ~ 150°C, pressure differential range up to 20 bar (customized products can reach 40 bar). The product features good dry-running and gas-liquid two-phase conveying capabilities, with a continuous service life exceeding 20,000 hours.

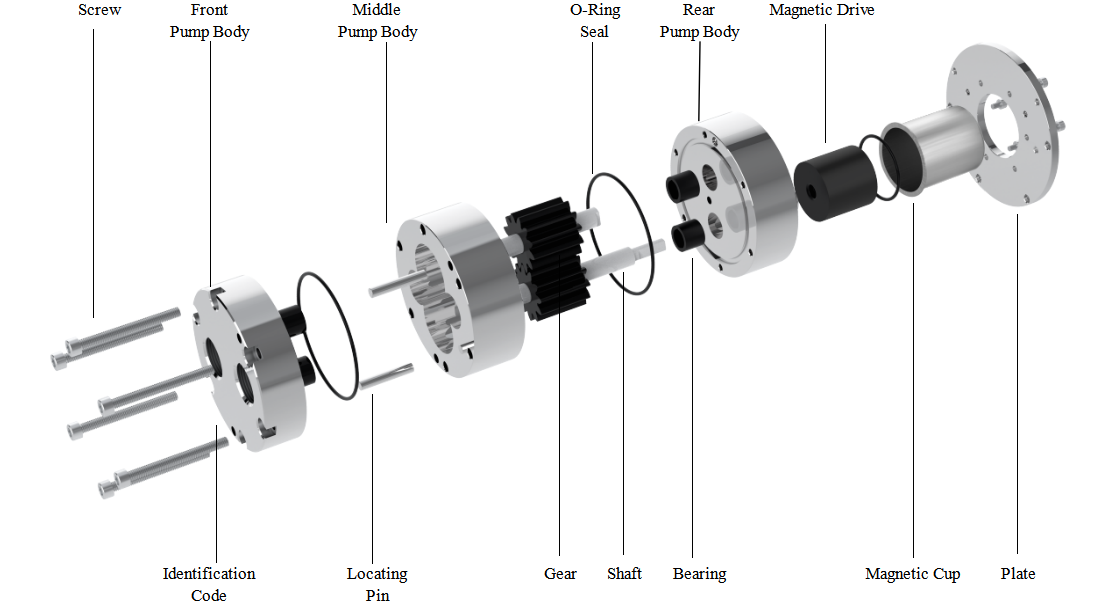

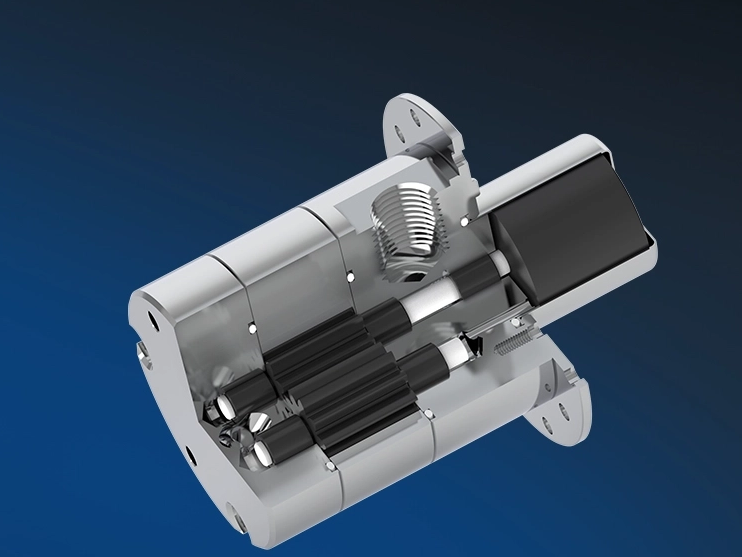

2. Gear Pump Structure Diagram

3. NP98 Series Gear Pump Disassembly & Assembly Steps

Gear Pump Disassembly & Assembly Steps:

Disassembly:

1️⃣ First, unscrew the screws on the rear pump body in sequence.

2️⃣ Remove the screws on the pump body, carefully detach the magnetic casing, and remove the inner magnetic drive.

3️⃣ Unscrew the screws on the front pump body in sequence.

4️⃣ Remove the front pump body and the gears, then pull out the positioning pins.

5️⃣ Inspect components such as the front, middle, and rear pump bodies, and gears. Replace any damaged parts promptly.

After disassembly, proceed to Assembly:

1️⃣ Align with the positioning pin holes and insert the positioning pins.

2️⃣ Install the drive gear and driven gear into the pump body, ensuring an appropriate gap between the gears and the pump body.

3️⃣ Install the front pump body, then tighten the front pump body screws in sequence.

4️⃣ Use a torque wrench set to the specified parameters to tighten the screws. Check if the gear pump rotates smoothly.

5️⃣ Install the inner magnetic drive and the magnetic casing, followed by tightening the fixing screws in sequence.

That covers the entire gear pump disassembly and assembly tutorial! We hope you find it helpful. If you have any questions, feel free to leave a message anytime.
