Gas-Liquid Two-Phase Flow Endurance Test: Suofu Micro Magnetic Gear Pump Performance

Collaborating with Top University Research Capabilities to Empower Future Technology.

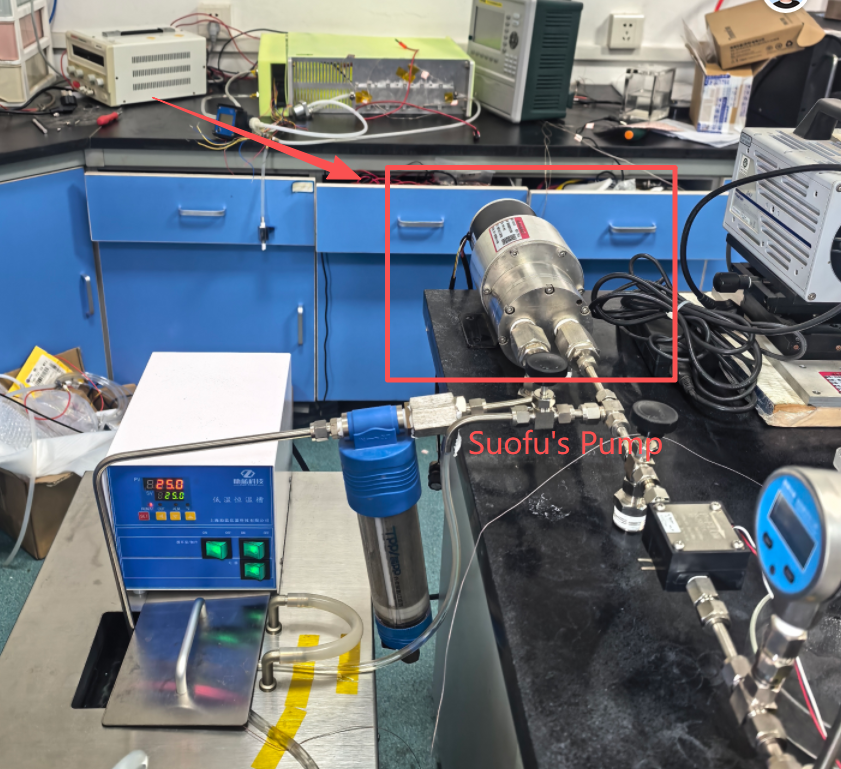

Suofu's micro magnetic gear pump has been successfully applied in a key research project of the School of Energy and Power Engineering at Huazhong University of Science and Technology—a long-term endurance testing system for gas-liquid two-phase flow. It provides a stable and reliable fluid delivery solution for this demanding and rigorous research environment.

▍ Project Challenge: Stringent Requirements of Gas-Liquid Two-Phase Flow Testing

This project at Huazhong University of Science and Technology aims to simulate the flow characteristics and equipment endurance under extreme industrial conditions involving gas-liquid mixed media, placing extremely high demands on the core fluid equipment:

• Media Complexity:​ Requires stable delivery of gas-liquid two-phase fluid with dynamically varying gas content.

• Long-Term Continuity:​ Testing must run continuously for thousands of hours, demanding pump equipment operate without failure.

• Pressure Stability:​ Outlet pressure must remain stable to avoid pulsation interference with data acquisition.

• Zero-Leakage Safety:​ The experimental environment strictly prohibits media leakage, ensuring safety and data accuracy.

▍ Suofu Solution: NP Series Micro Magnetic Gear Pump

To address the aforementioned requirements, Suofu provided customized NP series magnetic gear pumps, whose core advantages perfectly match the experimental needs:

• Gas-Liquid Two-Phase Delivery Capability:​ Special cavity design allows handling of gas-liquid mixed media with gas content up to 100% within specified speed ranges.

• Long-Term Endurance:​ Ceramic shaft combined with PEEK gears results in extremely low wear, enabling continuous operation for >20,000 hours maintenance-free.

• Fully Sealed Structure:​ Magnetic drive mechanism completely eliminates leakage, meeting laboratory safety and cleanliness requirements.

• Pressure Stability:​ Speed is adjustable from 0-4000 rpm, adapting to various flow/pressure testing scenarios.

▍ Actual Performance

During the extended testing period, the Suofu pump demonstrated卓越 performance:

• Stable continuous operation for over one year under various stringent conditions.

• Zero leakage from the pump body, requiring no intermediate maintenance.

• Successfully assisted the research team in obtaining a complete dataset on gas-liquid two-phase flow characteristics.

▍ Suofu Product Advantages

• Wide Range of Deliverable Media:​ Water / Ethylene Glycol / Silicon Oil / Electronic Fluorinated Liquid / Various Fluorocarbons / Liquid Metal, etc.

• Customization Capability:​ Supports on-demand customization of motors, interfaces, and materials.

• Data Verification:​ Provides performance curves and test reports.

▍ Why Choose Suofu — Strength Endorsement: Partnering with Industry Leaders

From leading enterprises to key sectors, Suofu's liquid cooling technology is deeply integrated into core industrial scenarios. The following cooperation cases and application areas are the best testament to our strength:

• ✅ Universities & Research Institutions

  Huazhong University of Science and Technology, University of Science and Technology of China, Shanghai Jiao Tong University, Zhejiang University, Xi'an Jiaotong University, etc.

• ✅ Leading Enterprises

  Haier, Gree, Laird, Sinexcel, Goaland, etc.

• ✅ Application Fields

  Aerospace, Dark Matter Laboratories, Chips, Lithography Machines, CT Scanners, Radar, Data Center Liquid Cooling, Super Charging Pile Liquid Cooling...

Shanghai Super Fluid Co., Ltd.

Shanghai Super Fluid Co., Ltd. (Suofu), has an R&D and sales center in Shanghai (Shanghai Suofu) and a production base in Sanming City, Fujian Province (Sanming Suofu). With its own R&D team and independent production factory, the company occupies a total area of 2000㎡, including a 1600㎡ production workshop and a 200㎡ warehouse. SUOFU is constructing a new plant covering 19 acres with a building area of 20,000 square meters. Sanming Suofu is recognized as a National High-Tech Enterprise​ and a Specialized, Refined, Distinctive, and Innovative (SRDI) Enterprise. Located in the Fujian Zhongguancun Science Park, the company has won the second prize in the Fujian Innovation and Entrepreneurship Competition and advanced to the national finals.

The company holds 29 patents​ and has participated in 25 national and provincial-level R&D projects.

Suofu Product Advantages:

• Special Gear Profile Design:​ Proprietary gear profile design provides excellent wear resistance andnear-pure rolling gear meshing.

• Special Cavity Profile Design:​ Adapts to operating conditions with wide-ranging outlet pressure variations, performing well under low pressure, high pressure, or short-term reversal.

• Pulsation-Free Outlet Pressure:​ High-precision part machining and structural design ensure smooth liquid delivery.

• One-Shot Injection Molded Gears:​ The working tooth surfaces of the gears are manufactured using high-precision one-shot injection molding without subsequent mechanical machining, ensuring gear working surface integrity.

• High-Precision Ceramic Shaft:​ High-precision ceramic shafts offer exceptional wear resistance and rigidity, ensuring reliable pump operation under abrasive liquid and high-pressure conditions.

• Capable of Long-Term Dry-Running Self-Priming:​ In applications requiring the pump's inlet vacuum to draw in the medium, the NP series products provide reliable performance.

• Multiple Motor Options Available:​ Options include AC explosion-proof, AC variable frequency, single-phase/three-phase AC, DC brushed, DC brushless, DC brushless with built-in driver, and shielded DC brushless motors with built-in driver.
