Views: 0 Author: Suofu Publish Time: 2026-04-09 Origin: Site

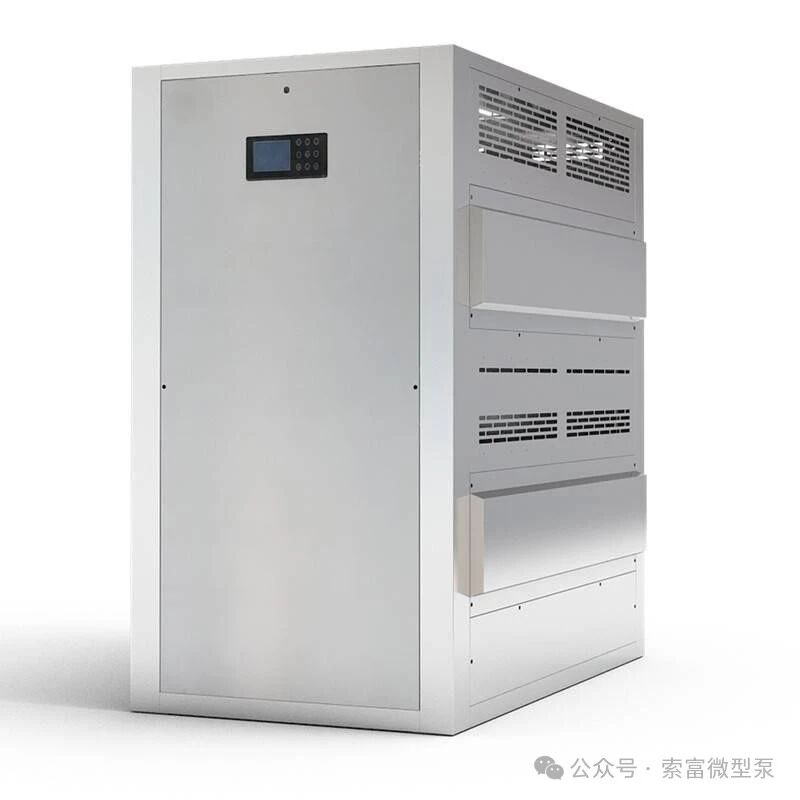

As a vital branch of boiler technology, steam generators have become indispensable thermal equipment in modern industry. Compared to traditional boilers, steam generators are classified as inspection-exempt products by national regulations, offering significant advantages such as simple structure and rapid steam generation (producing steam within seconds), thereby avoiding the complex procedures associated with boiler safety inspections.
This equipment quickly converts water into steam or hot water using electric heating, fuel oil, gas, or biomass energy. It finds widespread application in:
Hotel and hospitality services
Food processing production lines
Chemical production processes
Medical facility sterilization systems
Heating for large public facilities
It is particularly noteworthy that steam generators utilize variable frequency technology for automatic control, intelligently adjusting output based on actual steam consumption. This enables genuine "on-demand steam supply," with energy-saving efficiency significantly higher than traditional boiler equipment.

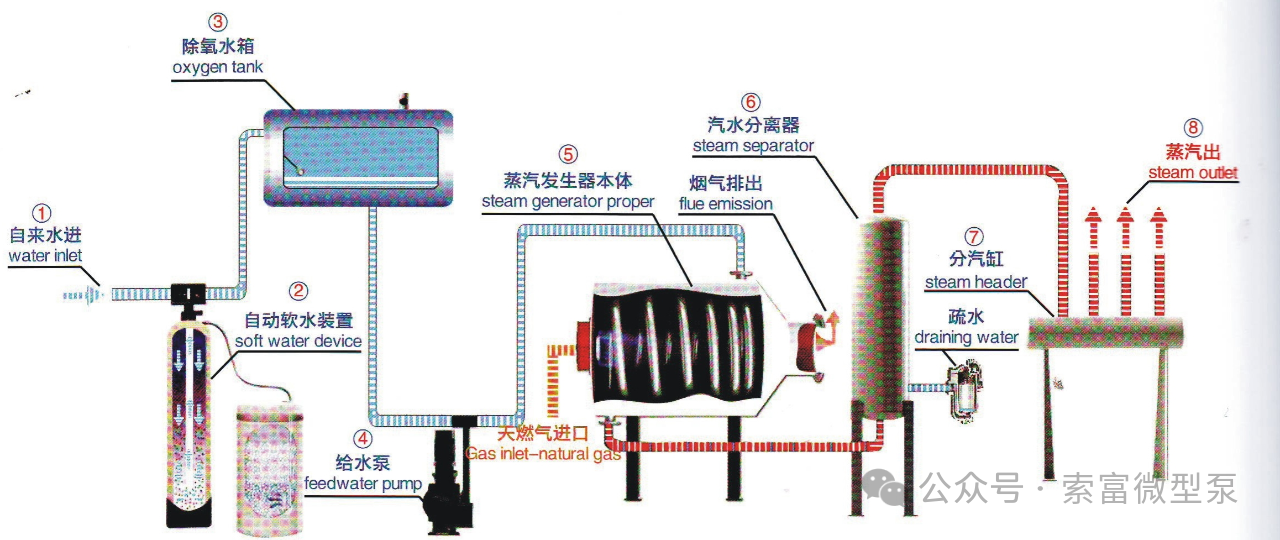

Within the core system of a steam generator, the stability of the water pump is directly related to the operational efficiency of the entire equipment. Through market research and technical analysis, the industry commonly faces the following challenges:
Pressure Fluctuation Issues: Most pump products experience unstable steam pressure after prolonged use.
High-Temperature Tolerance Bottlenecks: Conventional pumps can only withstand return liquid temperatures up to 95°C, struggling to meet special operational demands.
Frequent Leakage Incidents: Traditional mechanical seal pumps are prone to leakage.
High-Pressure Environment Challenges: Actual working pressures often reach 12-17 bar, far exceeding the 5-8 bar rating of ordinary pumps.
Contaminant Wear Risk: Particles like iron rust in the return water can drastically shorten pump lifespan.
Addressing these industry pain points, Shanghai Super Fluid Co., Ltd. (Suofu) provides an innovative solution with its NP Series magnetic gear pumps:
Comparison of Conventional Pumps vs. Suofu NP Magnetic Gear Pump Solutions
Industry Pain Point | Conventional Pump Performance | Suofu NP Magnetic Gear Pump Solution |
|---|---|---|
High-Temperature Return Liquid | ≤95°C tolerance | Stable operation at both ambient and 150°C high temperatures |
System Pressure | 5-8 bar rated | Designed for actual pressure resistance up to 25 bar |
Seal Leakage | Prone to leakage | Zero-leakage magnetic drive seal |
Long-Term Stability | ~1-year lifespan | Optimized design extends service life |
Pressure Pulsation | Significant fluctuation | Pulsation-free outlet pressure technology ensures precise and stable flow/pressure, effectively guaranteeing steam quality |
Zero-Leakage Magnetic Drive Seal: Utilizes rare-earth magnetic drive technology, retaining only static O-ring seals, completely eliminating the risk of dynamic seal failure and ensuring environmental friendliness.
Precise Speed Control: Supports wide-range speed adjustment from 1 to 3500 rpm, accurately matching variations in steam demand.
Exceptional Wear-Resistant Design:
Gears made from imported PEEK material (temperature resistant from -120°C to 150°C)
High-precision ceramic shaft and bearings
Special gear profile design minimizes wear
Outstanding Pressure Resistance: Standard design pressure of 25 bar, easily handling actual working conditions of 17 bar.
Wide Viscosity Adaptability: Stable operation within a viscosity range of 2 to 10,000 centipoise, suitable for various media.
Powerful Self-Priming Capability: Can generate a vacuum of 5 meters water column (up to 8.5 meters under wet conditions), enabling efficient gas-liquid separation.
In food production lines, the Suofu NP190 Micro Magnetic Gear Pump provides stable steam for cooking equipment at a flow rate of 250 L/H. Its fast response perfectly matches intermittent steam demand. After adoption by a well-known food enterprise, energy consumption was reduced by 18%, and maintenance cycles extended from 3 months to 1 year.
Chemical Production Field
A fermentation tank device originally used a diaphragm pump, facing issues of insufficient pressure and frequent maintenance. After switching to the Suofu NP350 Micro Magnetic Gear Pump, it not only met the 8 LPM flow demand, but its corrosion-resistant properties better adapted to the chemical environment, improving overall equipment efficiency by 27%.
Medical Sterilization Systems
Suofu micro gear pumps are used in medical equipment such as dialysis machines, IVD systems, and sterilization systems that require high medical-grade standards. The leak-free characteristic of the NP Series magnetic pumps eliminates cross-contamination risks, and their 150°C temperature tolerance ensures thorough sterilization.
With 17 years of industry experience, Suofu has built a complete technological barrier:
Core Design Capabilities
Proprietary gear profile design with independent intellectual property rights
Know-how in new material applications
Integrated system optimization solutions
Production Quality Assurance
Imported machining centers ensure part precision
Strict process control system
Real-time quality feedback mechanism
Cost Advantages
Performance comparable to imported products
Price only 60-70% of imported brands
Maintenance costs reduced by over 40%
Currently, the Suofu NP Series micro gear pumps have been successfully integrated into numerous well-known Chinese steam generator brands. A typical modular design for a 1-ton/hour steam unit usually employs 4 NP190 pumps.
Q1: What is the difference between magnetic drive and traditional mechanical seals?
A: Magnetic pumps use permanent magnets to achieve non-contact torque transmission, eliminating shaft seal leakage points. They are particularly suitable for conveying toxic, expensive, or media requiring absolute sealing.
Q2: How to handle impurities in the return water?
A: Suofu recommends installing a 400-mesh filter at the pump inlet. Additionally, the wear-resistant combination of PEEK gears and ceramic shafts effectively resists particle abrasion.
Q3: Can it operate normally under extreme temperature conditions?
A: The Suofu NP Series micro magnetic gear pump's wide temperature range design (-120°C to 150°C) has passed tests in dark matter laboratories and high-temperature field applications in the chemical industry, fully adapting to climatic conditions across the country.
Q4: What are the main advantages compared to diaphragm pumps?
A: Longer service life (3-5 times), higher output pressure, smoother flow output, and lower maintenance requirements.
Shanghai Super Fluid Co., Ltd.
Shanghai Super Fluid Co., Ltd. (Suofu), has an R&D and sales center in Shanghai (Shanghai Suofu) and a production base in Sanming City, Fujian Province (Sanming Suofu). With its own R&D team and independent production factory, the company occupies a total area of 2000㎡, including a 1600㎡ production workshop and a 200㎡ warehouse. SUOFU is constructing a new plant covering 19 acres with a building area of 20,000 square meters. Sanming Suofu is recognized as a National High-Tech Enterprise and a Specialized, Refined, Distinctive, and Innovative (SRDI) Enterprise. Located in the Fujian Zhongguancun Science Park, the company has won the second prize in the Fujian Innovation and Entrepreneurship Competition and advanced to the national finals.
The company holds 29 patents and has participated in 25 national and provincial-level R&D projects.
Suofu Product Advantages:
Special Gear Profile Design: Proprietary gear profile design provides excellent wear resistance andnear-pure rolling gear meshing.
Special Cavity Profile Design: Adapts to operating conditions with wide-ranging outlet pressure variations, performing well under low pressure, high pressure, or short-term reversal.
Pulsation-Free Outlet Pressure: High-precision part machining and structural design ensure smooth liquid delivery.
One-Shot Injection Molded Gears: The working tooth surfaces of the gears are manufactured using high-precision one-shot injection molding without subsequent mechanical machining, ensuring gear working surface integrity.
High-Precision Ceramic Shaft: High-precision ceramic shafts offer exceptional wear resistance and rigidity, ensuring reliable pump operation under abrasive liquid and high-pressure conditions.
Capable of Long-Term Dry-Running Self-Priming: In applications requiring the pump's inlet vacuum to draw in the medium, the NP series products provide reliable performance.
Multiple Motor Options Available: Options include AC explosion-proof, AC variable frequency, single-phase/three-phase AC, DC brushed, DC brushless, DC brushless with built-in driver, and shielded DC brushless motors with built-in driver.
#Original Statement: This article is original by Shanghai Super Fluid Co., Ltd. Please indicate the source when reprinting. We reserve all rights.
