100bar High Pressure Custom Pump Case Study: PAG68 Refrigeration Oil Transfer for Supermarkets

Suofu NP Series micro magnetic gear pumps​ feature leak-free operation, low flow rates, high pressure capability, a wide operating temperature range, suitability for medium to low viscosity liquids and gas-liquid two-phase fluids, dry-run capability, strong self-priming, minimal flow rate fluctuation under pressure changes, and control accuracy up to 0.3%.

These performance characteristics make the NP Series micro pumps​ widely applicable in many small-scale cooling and refrigeration systems.

NP Series micro magnetic gear pumps​ have been successfully applied in systems handling refrigeration oil, anhydrous alcohol, ethylene glycol, silicone oil, lubricating oil, ethylene glycol solutions, water, deionized water, traditional refrigerants like R134a, R410a, R141b, R245fa, R1233zd, and various 3M fluorinated fluids.

Case Study: Suofu 100bar High Pressure-Resistant Custom Pump – Supermarket PAG68 Refrigeration Oil Transfer Application

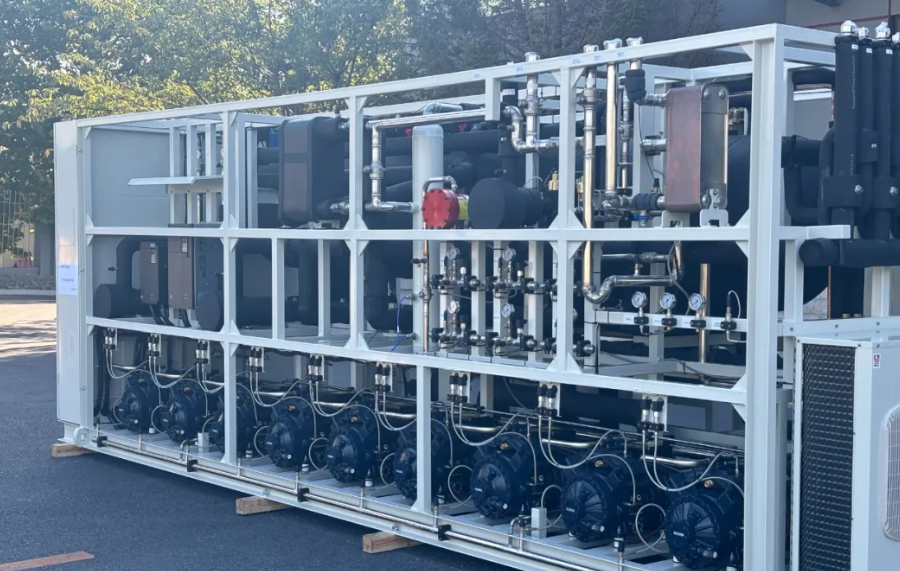

• Application Scenario:​ Supermarket refrigeration units

• Customer Requirement:​ Pump body pressure resistance of 100 Bar

• Temperature Range:​ -120°C to 150°C

• Fluid Medium:​ PAG68 refrigeration oil

• Product Model:​ Suofu NP060 from the 42 Series

• Product Advantages:​ Compact size, low-temperature resistance, high-pressure resistance, extended service life, high safety, leak-free, suitable for gas-liquid two-phase state.

Application of the Shanghai Suofu NP060 Micro Magnetic Gear Pump​ in the refrigeration industry. The custom pump is designed for 100bar high pressure resistance, transferring PAG68 refrigeration oil, paired with a 24V 100W DC motor with shaft. It easily handles temperatures from -120°C to 150°C, featuring a compact size, low-temperature resistance, high-pressure resistance, extended service life, high safety, and leak-free operation. Independently developed and customizable, its strength is proven. Let's experience its powerful performance!
